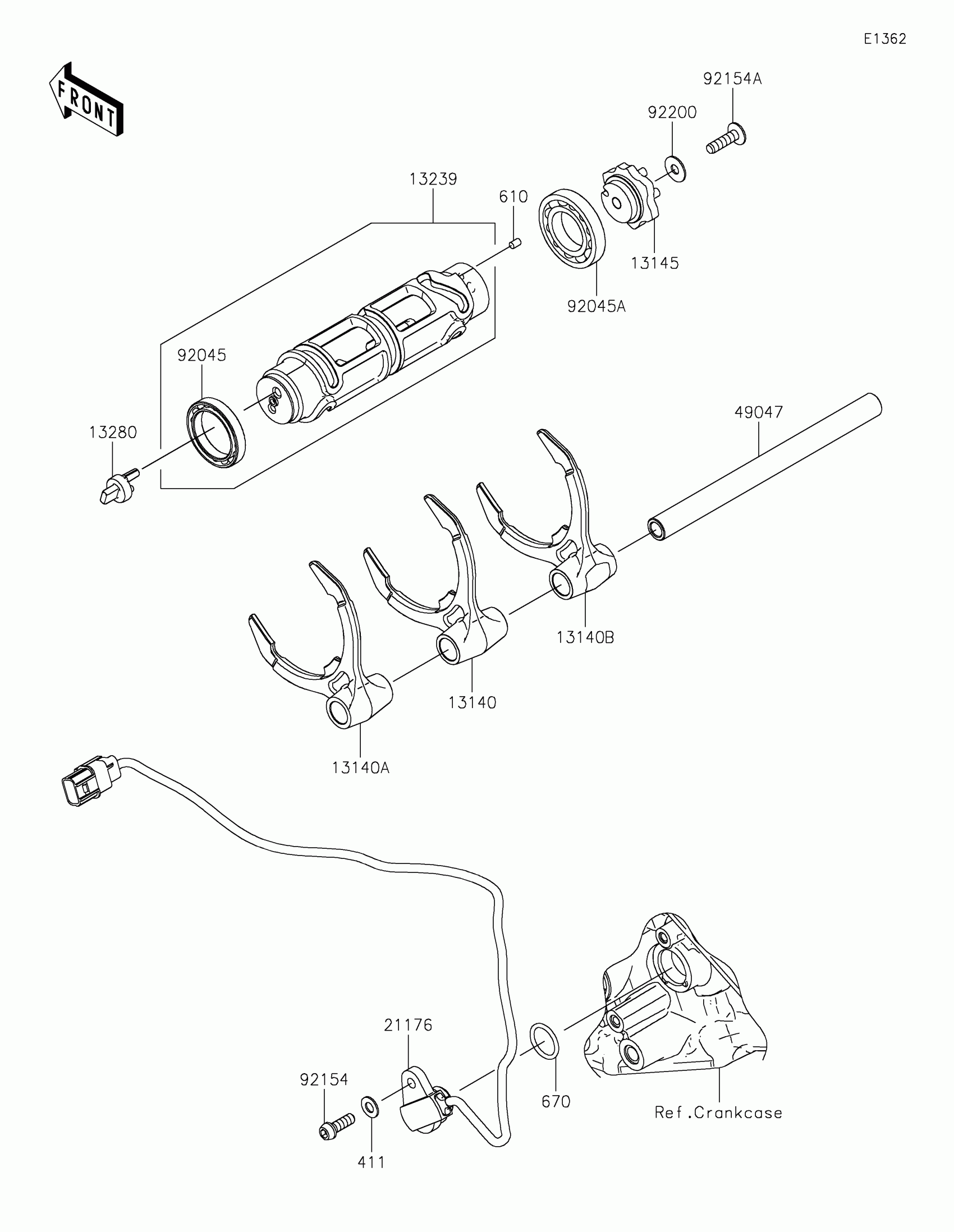

Kawasaki NINJA H2®R ABS Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT,3RD&4TH

13140-0645

$236.57

13140A

FORK-SHIFT,5TH&6TH

13140-0646

$239.81

13140B

FORK-SHIFT,1ST&2ND

13140-0649

$239.81

13145

CAM-CHANGE DRUM

13145-0572

$67.70

13239

DRUM-ASSY-CHANGE

13239-0605

$211.21

13280

HOLDER

13280-0964

$11.06

21176

SENSOR,GEAR POSITION

21176-0787

$151.78

49047

ROD-SHIFT

49047-0635

$76.36

92045

BEARING-BALL,6806

92045-0826

$45.82

92045A

BEARING-BALL,16005

92045-1045

$28.25

92154

BOLT,SOCKET,6X18

92154-1455

$1.48

92154A

BOLT,TORX,6X22

92154-2903

$1.97

92200

WASHER,6X16X1

92200-2145

$0.98

411

WASHER-PLAIN,6MM

411AA0600

$2.92

610

ROLLER,4X6

610A0406

$4.31

670

O RING,18MM

670D2018

$1.91
