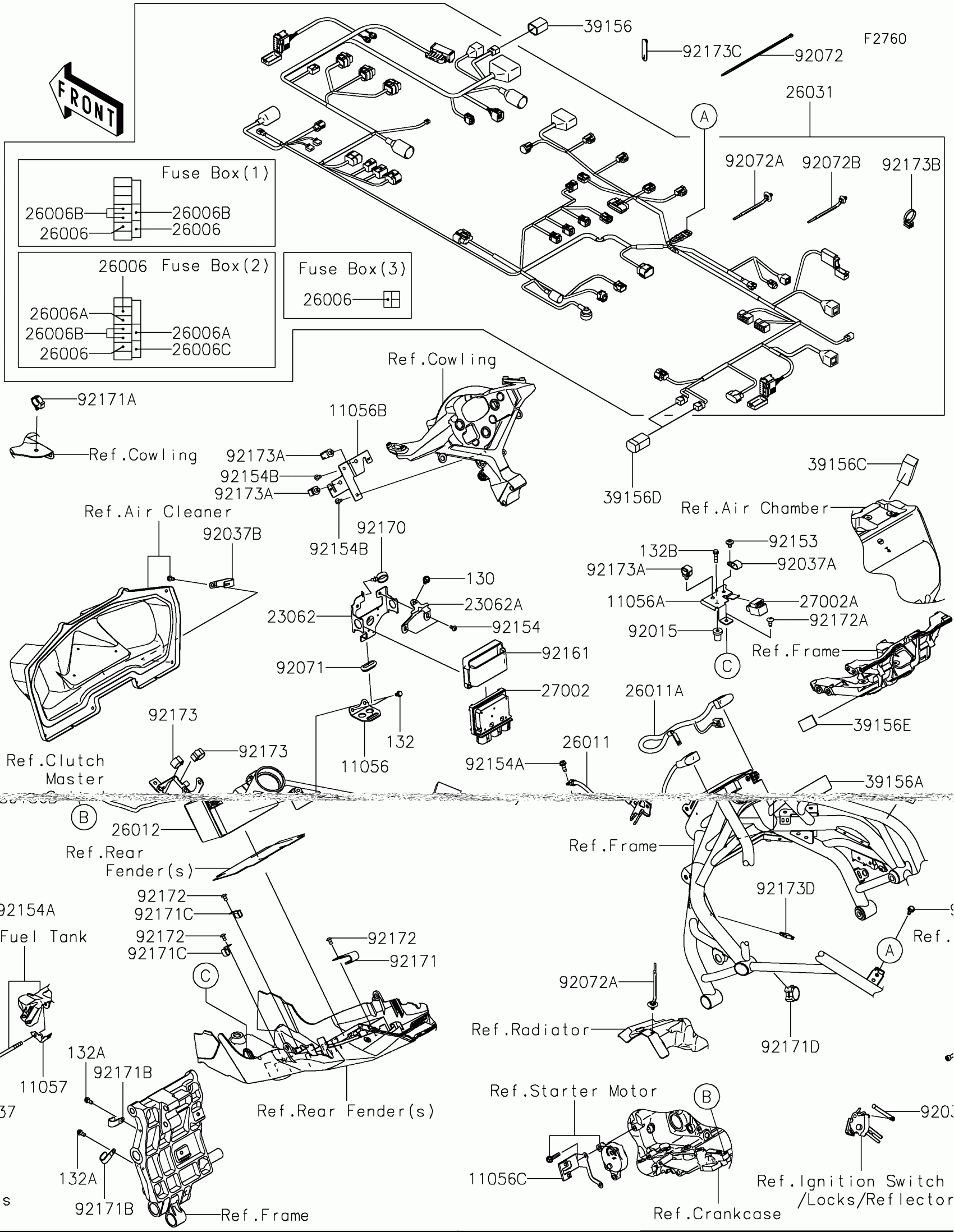

Kawasaki NINJA H2®R ABS Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,RELAY BRKT.,LWR

11056-7100

$116.59

11056A

BRACKET,RR WHEEL SPEED SENSOR

11056-7175

$233.82

11056B

BRACKET,HARNESS CONNECTOR

11056-7378

$68.01

11056C

BRACKET,STARTER

11056-7543

$9.67

11057

BRACKET,FUEL PUMP CONNECTOR

11057-0040

$5.23

23062

BRACKET-COMP,RELAY BOX

23062-0844

$505.64

23062A

BRACKET-COMP,RELAY BRKT.,UPP

23062-0845

$350.45

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(-)

26011-0908

$49.33

26011A

WIRE-LEAD,BATTERY(+)

26011-0909

$67.09

26012

BATTERY,YTZ10S,12V 8.6AH

26012-0564

Unavailable

26031

HARNESS,MAIN

26031-2190

$2,506.11

27002

RELAY-ASSY

27002-0050

$143.14

27002A

RELAY-ASSY

27002-1062

$45.39

39156

PAD,DIAG. CONNECTOR

39156-1886

$2.13

39156A

PAD,30X115X0.36

39156-1895

$13.63

39156B

PAD,25X50X20

39156-1940

$2.13

39156C

PAD,25X65X20

39156-1945

$2.13

39156D

PAD,DIAG. CONNECTOR

39156-2112

$14.21

39156E

PAD,30X15X1

39156-2495

$0.90

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP

92037-1608

$8.10

92037B

CLAMP,CABLE,STEEL SHEET

92037-2014

$1.97

92071

GROMMET

92071-1187

$4.96

92072

BAND,202X3.6

92072-0782

$1.97

92072A

BAND

92072-1392

$3.74

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92153

BOLT,SOCKET,6X10

92153-0410

$2.80

92154

BOLT,SOCKET,5X10

92154-0211

$2.12

92154A

BOLT,FLANGED,6X16

92154-0551

$1.63

92154B

BOLT,SOCKET,5X12

92154-0917

$4.72

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92170

CLAMP

92170-1067

$7.45

92171

CLAMP

92171-0305

$7.21

92171A

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171B

CLAMP

92171-0739

$5.65

92171C

CLAMP

92171-0766

$5.65

92171D

CLAMP,25MM DIA.

92171-1559

$6.18

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,6X16

92172-0284

$1.34

92173

CLAMP,CLIP

92173-0127

$15.62

92173A

CLAMP,12MM DIA.

92173-0736

$5.05

92173B

CLAMP

92173-0791

$11.16

92173C

CLAMP,RUBBER PLATE

92173-1229

$3.94

92173D

CLAMP

92173-1513

$3.73

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132B

BOLT-FLANGED-SMALL,6X22

132BA0622

$1.94
