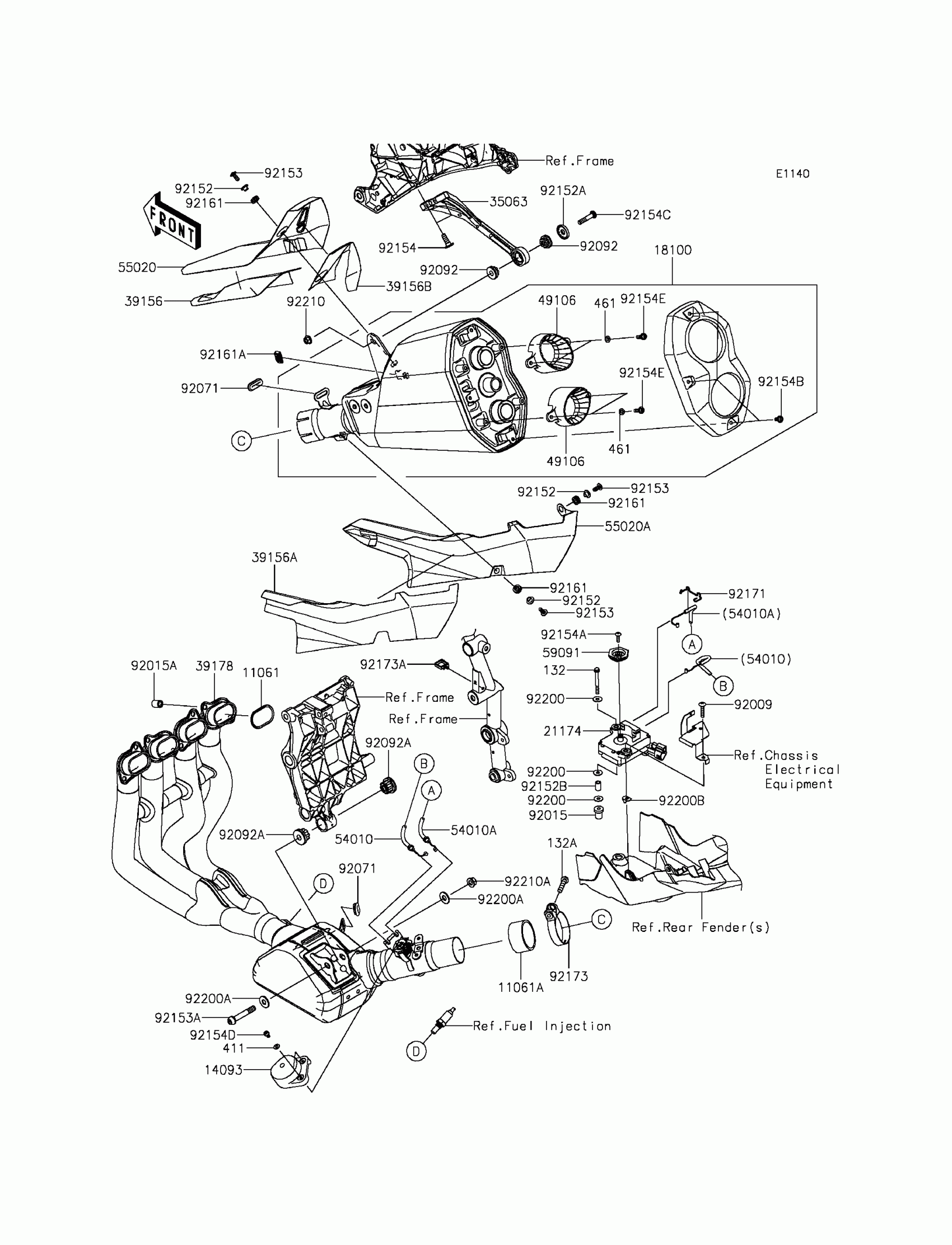

Kawasaki Ninja H2® Muffler(s) Diagram
#
11061
GASKET,EXHAUST PIPE
11061-0951
$10.80
11061A
GASKET,MUFFLER JOINT
11061-0980
$29.85
14093
COVER
14093-0161
$41.96
18100
BODY-ASSY-MUFFLER
18100-0581
$1,739.80
21174
MOTOR-ELECTRIC
21174-0009
$337.67
35063
STAY,MUFFLER BODY
35063-1381
$108.69
39156
PAD,UPP,FR
39156-1837
$14.21
39156A
PAD,LWR
39156-1838
$19.45
39156B
PAD,UPP,RR
39156-1892
$9.64
39178
MANIFOLD-COMP-EXHAUST
39178-0436
$2,147.49
49106
COVER-MUFFLER,END PIPE
49106-0787
$148.30
54010
CABLE,CLOSE
54010-0603
$69.50
54010A
CABLE,OPEN
54010-0604
$69.50
55020
GUARD,UPP
55020-1949
$488.90
55020A
GUARD,LWR
55020-1950
$502.11
59091
PULLEY
59091-0007
$22.29
92009
SCREW,TAPPING,6X30
92009-1481
$4.69
92015
NUT,RUBBER,6MM
92015-1692
$7.34
92015A
NUT
92015-1923
$11.39
92071
GROMMET
92071-0752
$16.09
92092
BUSHING-RUBBER
92092-0018
$11.54
92092A
BUSHING-RUBBER
92092-1081
$24.82
92152
COLLAR,6.3X8.3X16
92152-0286
$5.65
92152A
COLLAR
92152-1943
$90.05
92152B
COLLAR,6.8X10X16.9
92152-1959
$21.71
92153
BOLT,SOCKET,6X16
92153-0817
$2.15
92153A
BOLT,SOCKET,10X60
92153-1837
$13.60
92154
BOLT,TORX,5X18
92154-0217
$3.71
92154A
BOLT,SOCKET,6X14
92154-1460
$2.49
92154B
BOLT,SOCKET
92154-1545
$21.18
92154C
BOLT,SOCKET,5X10
92154-1558
$2.49
92154D
BOLT,SOCKET,6X20
92154-1667
$2.49
92154E
BOLT,SOCKET,8X23
92154-1901
$3.63
92161
DAMPER
92161-0306
$5.65
92161A
DAMPER
92161-1733
$19.45
92171
CLAMP
92171-0292
$10.11
92173
CLAMP,64.5MM
92173-0284
$32.48
92173A
CLAMP
92173-1513
$3.73
92200
WASHER
92200-0078
$2.12
92200A
WASHER,10.5X25X2.0
92200-1377
$4.18
92200B
WASHER
92200-1746
$11.51
92210
NUT,8MM
92210-0121
$2.26
92210A
NUT,LOCK,FLANGED,10MM
92210-1139
$4.18
132
BOLT-FLANGED-SMALL,6X55
132BA0655
$2.80
132A
BOLT-FLANGED-SMALL,8X40
132BC0840
$3.72
411
WASHER-PLAIN,5MM
411S0500
$0.94
461
WASHER-SPRING,6MM
461S0600
$1.07
