2016 Kawasaki Ninja H2™ Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

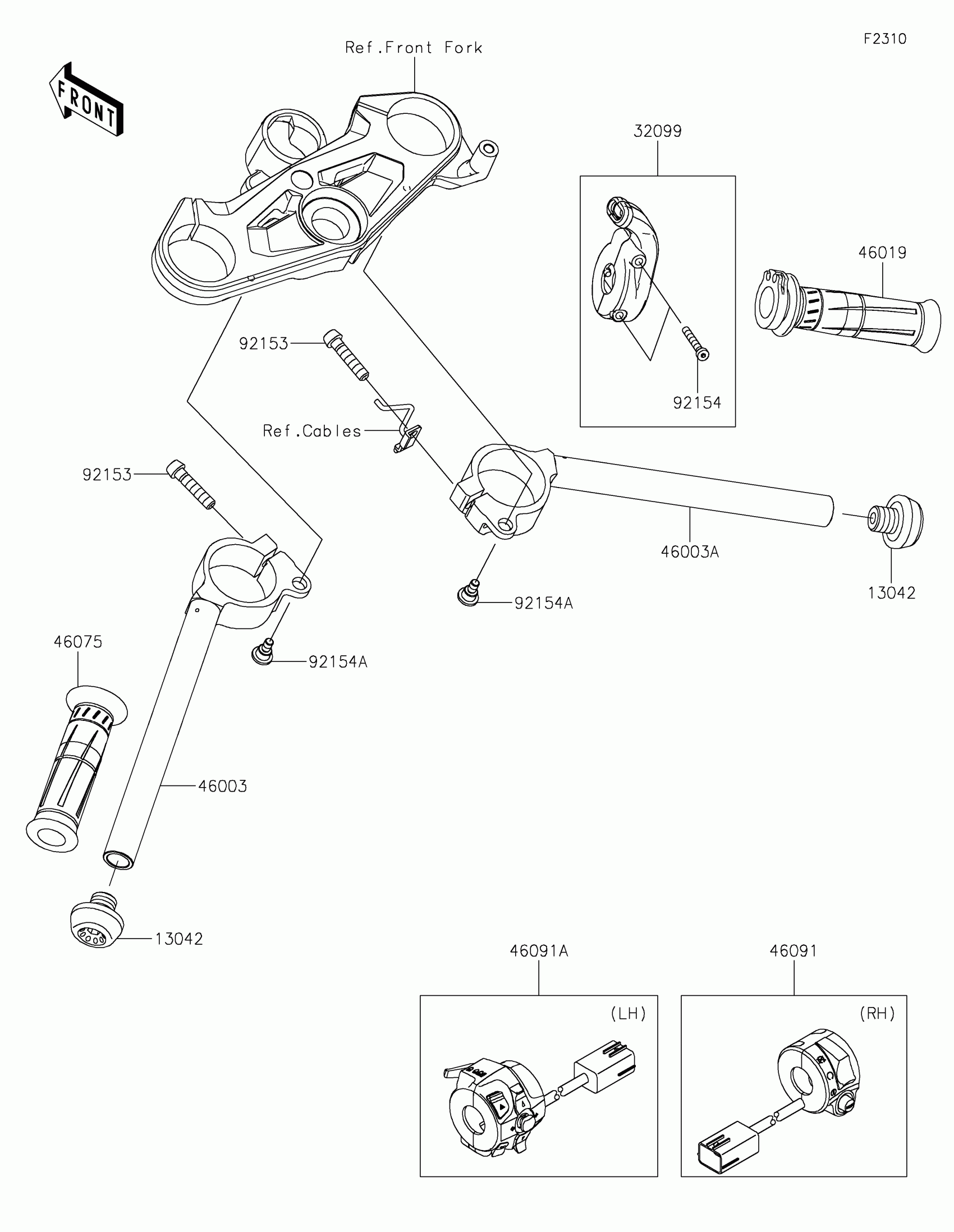

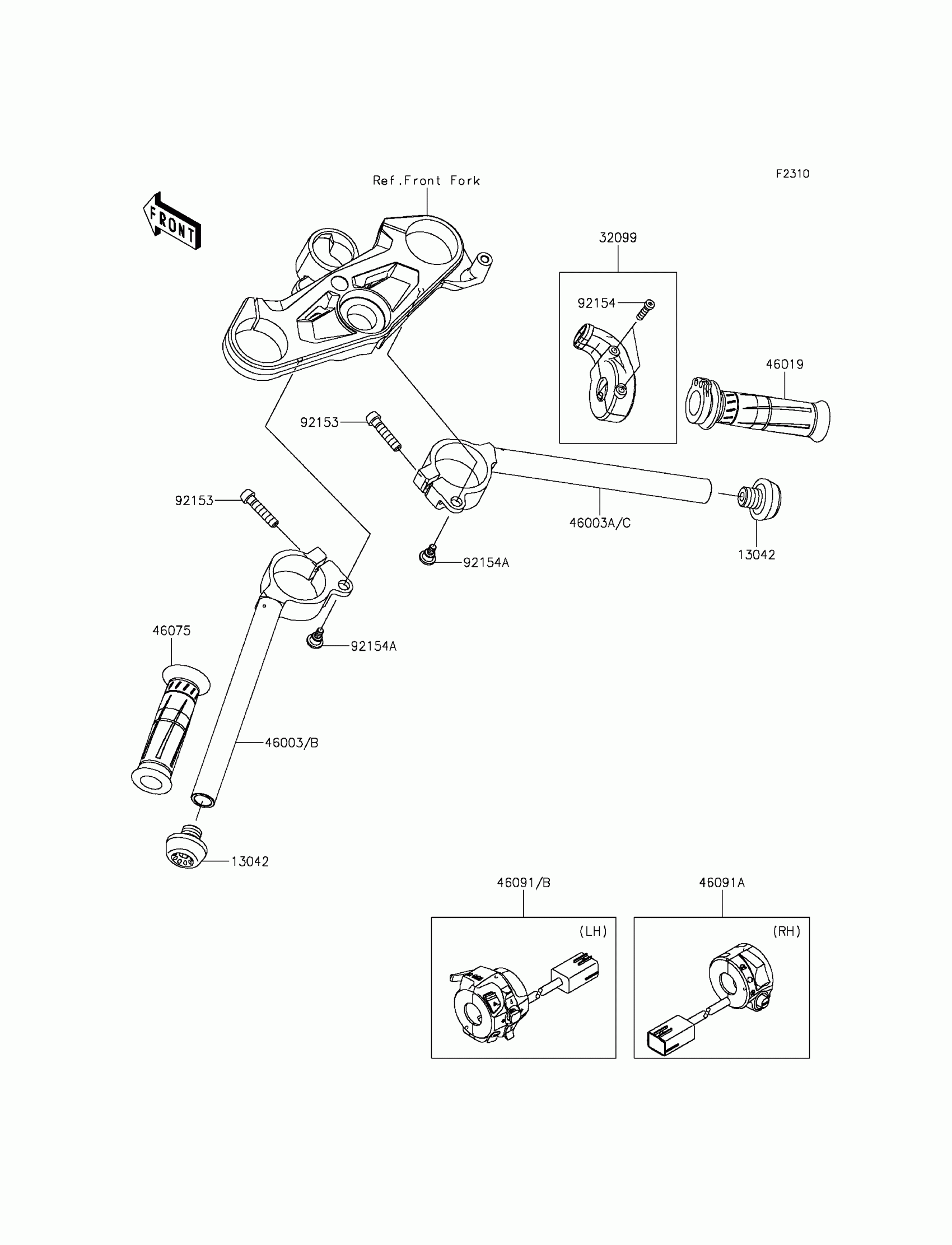

2016 Kawasaki Ninja H2™ Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE,A.BLACK

13042-0049-499

1

$93.58

In stock

32099

CASE,THROTTLE

32099-0766

1

$23.47

In stock

46003B

HANDLE,LH

46003-0669

1

$198.50

In stock

46003C

HANDLE,RH

46003-0670

1

$198.50

In stock

46019

GRIP-ASSY,THROTTLE

46019-0020

1

$38.86

In stock

46075

GRIP,LH

46075-0068

1

$14.87

In stock

46091A

1

$146.72

In stock

46091B

1

$222.88

In stock

92153

BOLT,SOCKET,8X35

92153-0907

1
Out of stock

92154

BOLT,SOCKET,5X35

92154-1530

1

$4.35

In stock

92154A

BOLT,SOCKET,6X16.5

92154-1698

1

$3.72

In stock
