2016 Kawasaki Ninja H2™ Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

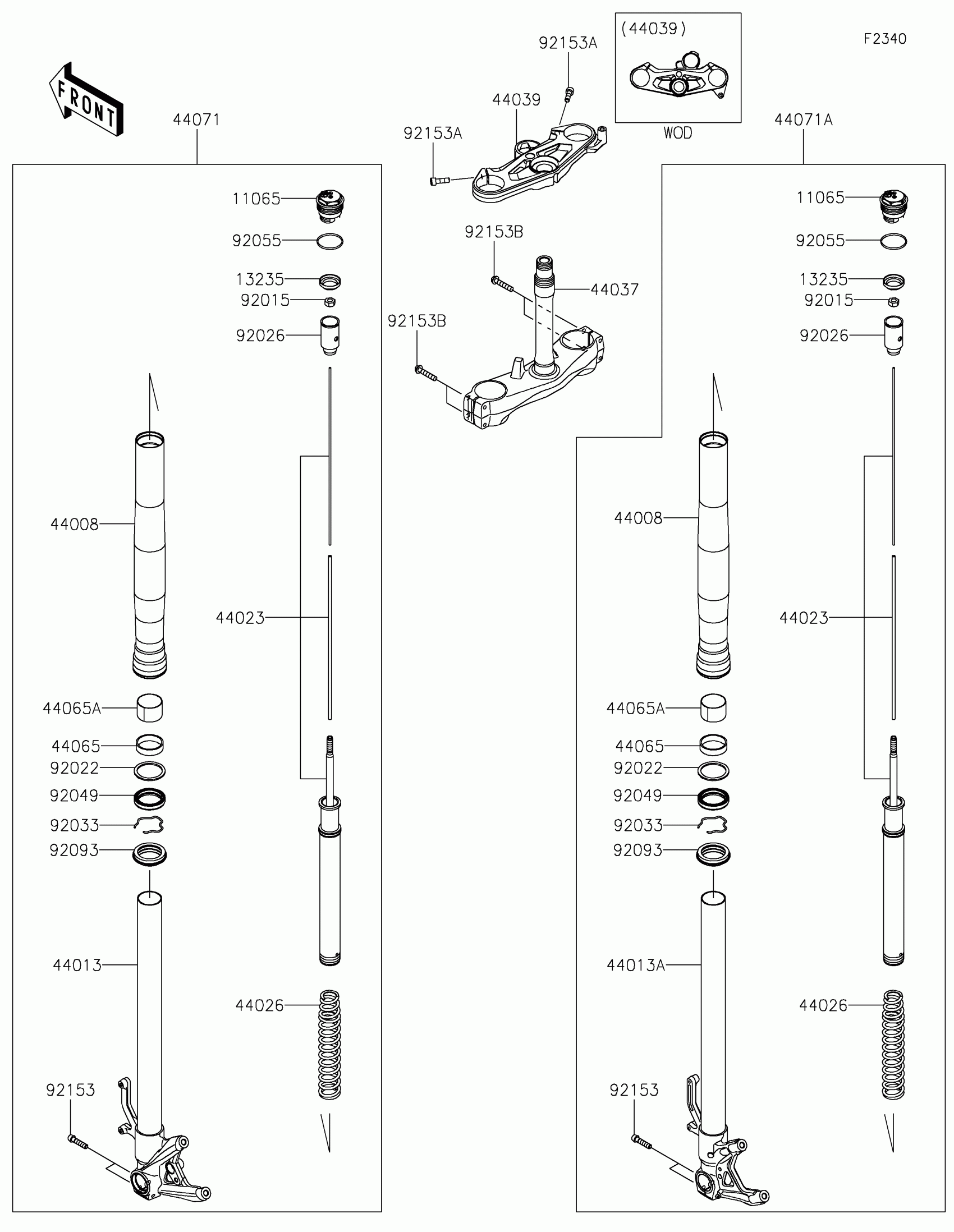

2016 Kawasaki Ninja H2™ Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,G.B.GREEN

11065-0924-50Y

1

$242.27

In stock

13235

GUIDE-COMP

13235-0011

1

$12.36

In stock

44008

PIPE-FORK OUTER,GRAY

44008-0079-11G

1

$488.35

In stock

44013

PIPE-FORK INNER,LH

44013-0245

1

$947.73

In stock

44013A

PIPE-FORK INNER,RH

44013-0246

1

$947.73

In stock

44023

CYLINDER-SET-FORK

44023-0132

1

$507.00

In stock

44026

SPRING-FRONT FORK

44026-0195

1

$131.04

In stock

44037

HOLDER-FORK UNDER

44037-0153

1

$818.16

In stock

44039

1

$427.41

In stock

44065

1

$19.45

In stock

44065A

BUSHING-FRONT FORK

44065-0064

1

$25.00

In stock

44071

DAMPER-ASSY,FORK,LH,GRAY

44071-1069-50K

1

$1,488.34

In stock

44071A

DAMPER-ASSY,FORK,RH,GRAY

44071-1070-50K

1

$1,509.16

In stock

92015

NUT

92015-1795

1

$4.85

In stock

92022

WASHER

92022-1299

1

$6.82

In stock

92026

SPACER

92026-0805

1
Out of stock

92033

RING-SNAP

92033-1077

1

$3.94

In stock

92049

SEAL-OIL

92049-0072

1
Out of stock

92055

RING-O

92055-0145

1

$2.10

In stock

92093

SEAL,DUST

92093-0058

1

$20.47

In stock

92153

BOLT,SOCKET,8X35

92153-1472

1
Out of stock

92153A

BOLT,SOCKET,8X25

92153-1625

1

$3.69

In stock

92153B

BOLT,FLANGED,8X40

92153-1884

1

$8.17

In stock
