Description

Price

32036

BRACKET-SWINGARM,M.F.S.BLACK

32036-0406-46R

$560.35

32160

FRAME-COMP,RR,LH,M.F.S.BLACK

32160-0742-46R

$194.62

32160A

FRAME-COMP,RR

32160-0747

Unavailable

32160B

FRAME-COMP,RR,RH,M.F.S.BLACK

32160-0887-46R

$194.62

32160C

FRAME-COMP,MAIN,G.B.GREEN

32160-1828-40R

$4,011.85

39156

PAD,22X45

39156-1896

$7.32

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL,DS35X55X4

92049-0022

$17.39

92049A

SEAL-OIL,XMH 43 75 6.4J

92049-1382

$24.41

92154

BOLT,FLANGED,10X30

92154-0543

$9.43

92154A

BOLT,FLANGED,10X223

92154-1556

$31.97

92154B

BOLT,SOCKET,8X25

92154-1557

$15.41

92154C

BOLT,SOCKET,8X23

92154-1901

$3.63

92200

WASHER

92200-0036

$5.00

92200A

WASHER,28.5X40X1.6

92200-0595

$4.10

92200B

WASHER,10.2X20X0.5

92200-1732

$9.43

92210

NUT,35MM

92210-0095

$18.25

92210A

NUT,35MM

92210-0096

$19.83

92210B

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210C

NUT,STEERING,28MM

92210-1416

$169.05

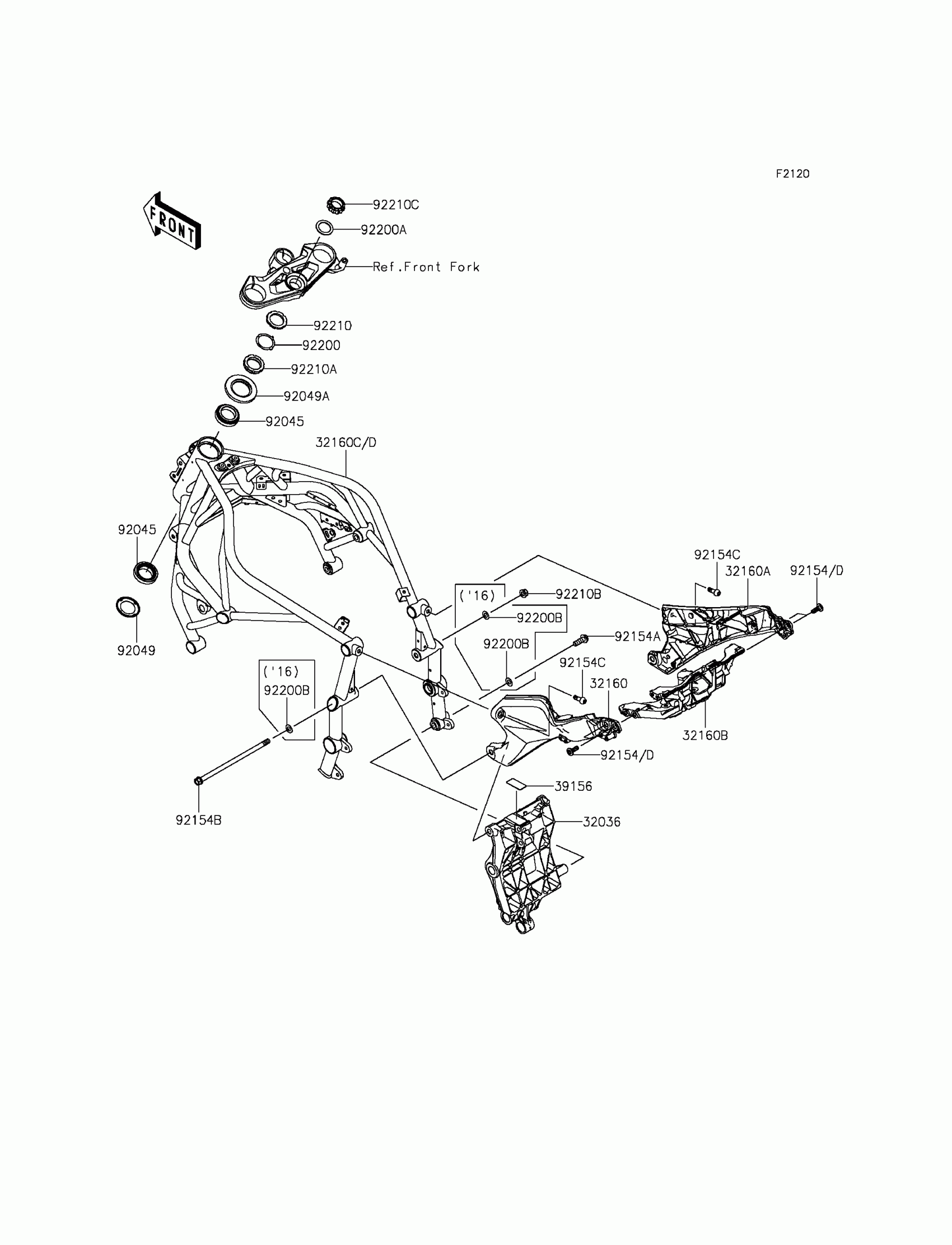

Kawasaki Ninja H2® Frame Diagram

BRACKET-SWINGARM,M.F.S.BLACK

FRAME-COMP,RR,LH,M.F.S.BLACK

FRAME-COMP,RR

FRAME-COMP,RR,RH,M.F.S.BLACK

FRAME-COMP,MAIN,G.B.GREEN

PAD,22X45

BEARING-BALL,SF07A17PX1V1

SEAL-OIL,DS35X55X4

SEAL-OIL,XMH 43 75 6.4J

BOLT,FLANGED,10X30

BOLT,FLANGED,10X223

BOLT,SOCKET,8X25

BOLT,SOCKET,8X23

WASHER

WASHER,28.5X40X1.6

WASHER,10.2X20X0.5

NUT,35MM

NUT,35MM

NUT,LOCK,FLANGED,10MM

NUT,STEERING,28MM
