Description

Price

120

BOLT-SOCKET,6X12

120CB0612

$2.49

311

NUT-HEX

311AC0600

$0.88

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

11056A

BRACKET,CYLINDER

11056-7079

$9.93

11056C

BRACKET,METER STAY

11056-7533

$45.65

11057

BRACKET,THROBO. HOLDER

11057-0041

$3.94

11057A

BRACKET,RESERVOIR

11057-0053

$13.60

13236

LEVER-COMP,CLUTCH

13236-0771

$109.60

27010

SWITCH,STOP

27010-0824

$82.78

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0616

Unavailable

43034

HOLDER-BRAKE

43034-0121

$50.26

43056

BREATHER-BRAKE

43056-0007

$23.79

43056A

BREATHER-BRAKE

43056-0012

$26.39

43057

CAP-BREATHER

43057-003

$2.45

43078

RESERVOIR

43078-0578

$33.25

43095

HOSE-BRAKE,CLUTCH

43095-0893

$364.00

43095A

HOSE-BRAKE

43095-0909

$6.38

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92075

DAMPER

92075-1564

$5.48

92145

SPRING

92145-1683

$3.26

92152A

COLLAR,LEVER

92152-2151

$11.51

92152B

COLLAR,6.5X10X5.3

92152-2225

$21.18

92154

BOLT,SOCKET,6X18

92154-1455

$1.48

92154A

BOLT,SOCKET,6X25

92154-1532

$2.34

92154B

BOLT,BANJO,10X19

92154-1554

$23.53

92154C

BOLT,BANJO,10X19,C. RELEASE

92154-1622

$39.08

92154D

BOLT,SOCKET,6X20

92154-1644

$2.49

92154E

BOLT,LEVER

92154-1809

$11.77

92171

CLAMP

92171-0939

$4.41

92173

CLAMP,HOSE

92173-1498

$2.26

92200

WASHER,6.5X16X1.0

92200-3712

$3.73

92210

NUT,U

92210-1424

$2.26

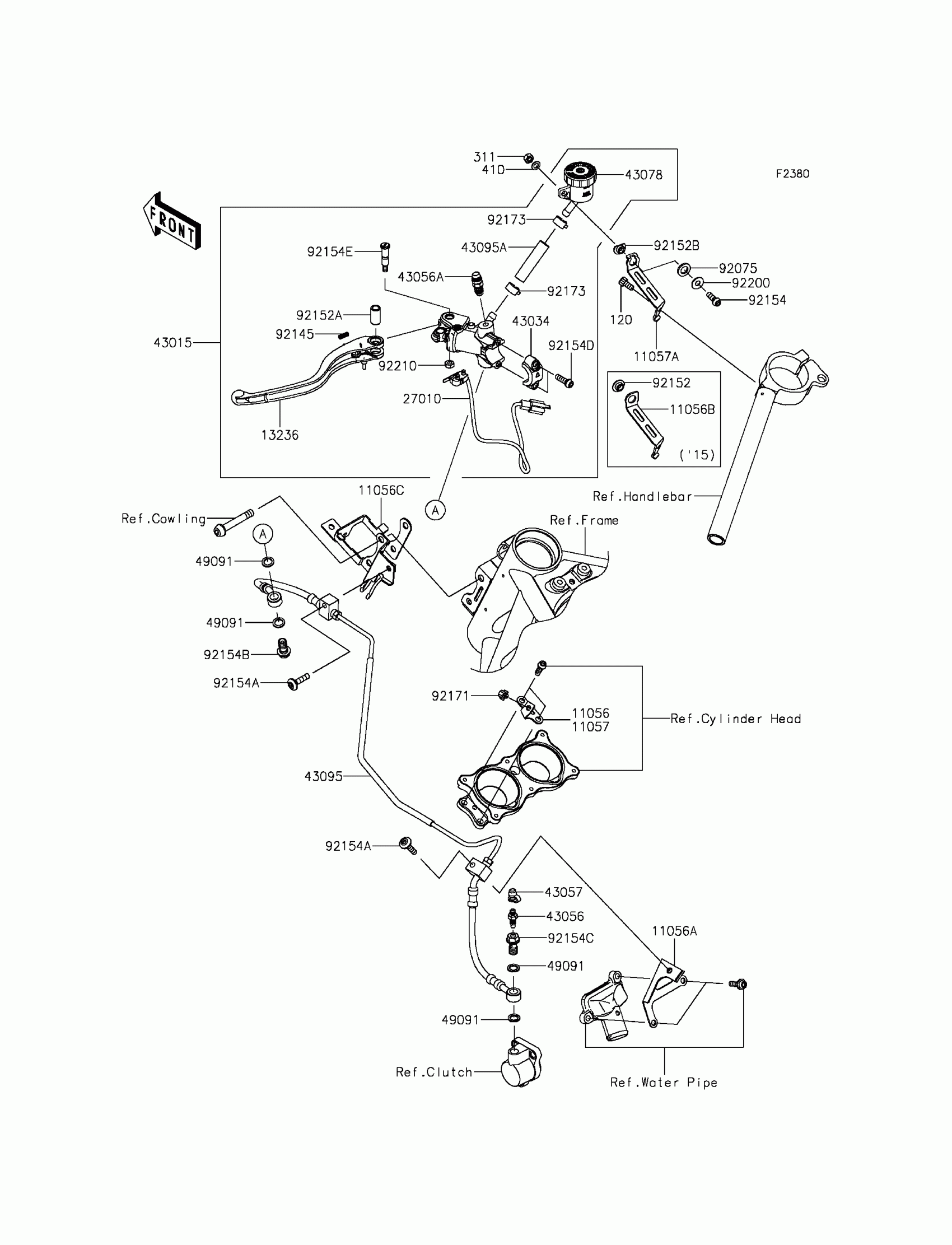

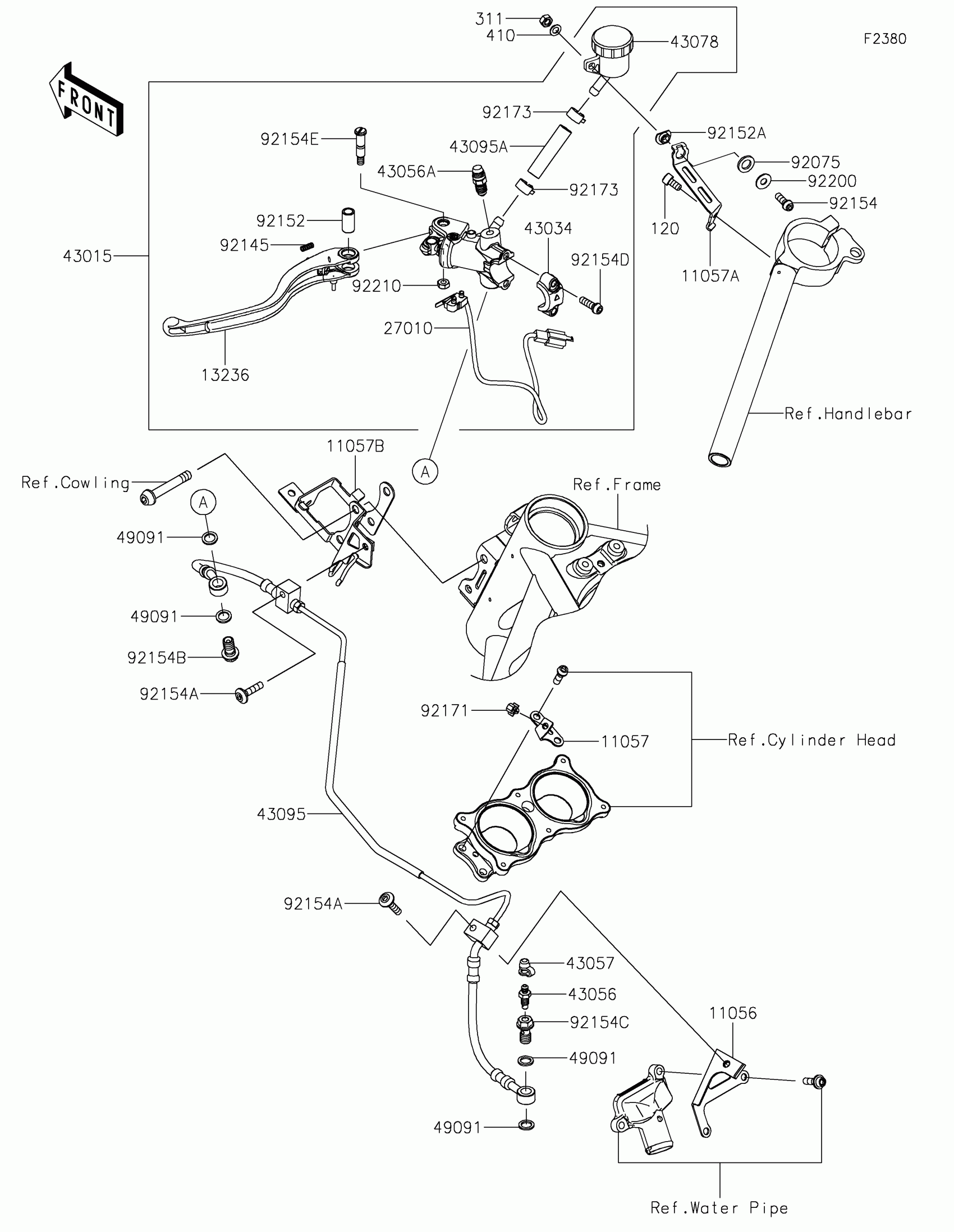

Kawasaki NINJA H2™ Clutch Master Cylinder Diagram

BOLT-SOCKET,6X12

NUT-HEX

WASHER-PLAIN-SMALL

BRACKET,CYLINDER

BRACKET,METER STAY

BRACKET,THROBO. HOLDER

BRACKET,RESERVOIR

LEVER-COMP,CLUTCH

SWITCH,STOP

CYLINDER-ASSY-MASTER,CLUTCH

HOLDER-BRAKE

BREATHER-BRAKE

BREATHER-BRAKE

CAP-BREATHER

RESERVOIR

HOSE-BRAKE,CLUTCH

HOSE-BRAKE

WASHER-SEAL,10.1X14.5X1.5

DAMPER

SPRING

COLLAR,LEVER

COLLAR,6.5X10X5.3

BOLT,SOCKET,6X18

BOLT,SOCKET,6X25

BOLT,BANJO,10X19

BOLT,BANJO,10X19,C. RELEASE

BOLT,SOCKET,6X20

BOLT,LEVER

CLAMP

CLAMP,HOSE

WASHER,6.5X16X1.0

NUT,U
