Description

Price

11061

GASKET,CLUTCH RELEASE

11061-1228

$2.68

13087

HUB-CLUTCH

13087-0579

$266.92

13088

PLATE-FRICTION

13088-0575

$21.14

13088A

PLATE-FRICTION

13088-0576

$21.14

13089

PLATE-CLUTCH,T=2.3

13089-0027

Unavailable

13089A

PLATE-CLUTCH,T=2.6

13089-0028

$16.35

13089B

PLATE-CLUTCH,T=2.9

13089-0030

$16.35

13089C

PLATE-CLUTCH,T=2.9

13089-0030

Unavailable

13089D

PLATE-CLUTCH,T=2.6

13089-0036

$17.57

13095

HOUSING-COMP-CLUTCH

13095-0577

$738.44

13116

ROD-PUSH

13116-0732

$40.11

13116A

ROD-PUSH

13116-0738

$215.16

13187

PLATE-CLUTCH OPERATING

13187-0028

$155.63

13231

RELEASE-ASSY-CLUTCH

13231-0008

$215.16

13272

PLATE

13272-1303

$19.32

16007

SEAT-SPRING

16007-0736

$10.90

92022

WASHER,15.1X29X1.0

92022-1463

$5.00

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92046

BEARING-NEEDLE

92046-0041

$22.40

92046A

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92139

BUSHING,25X38X17.3

92139-0304

$37.67

92145

SPRING

92145-1250

$19.32

92145A

SPRING

92145-1700

$16.60

92152

COLLAR

92152-0866

$41.41

92154

BOLT,SOCKET,6X20

92154-1623

$2.26

92154A

BOLT,SOCKET,6X65

92154-1624

$10.72

92154B

BOLT,FLANGED,6X45

92154-1909

$1.48

92200

WASHER,T=1.2

92200-1580

$10.49

92200A

WASHER,TOOTHED,38.5X25X6.3

92200-1833

$9.17

92210

NUT

92210-0397

$51.69

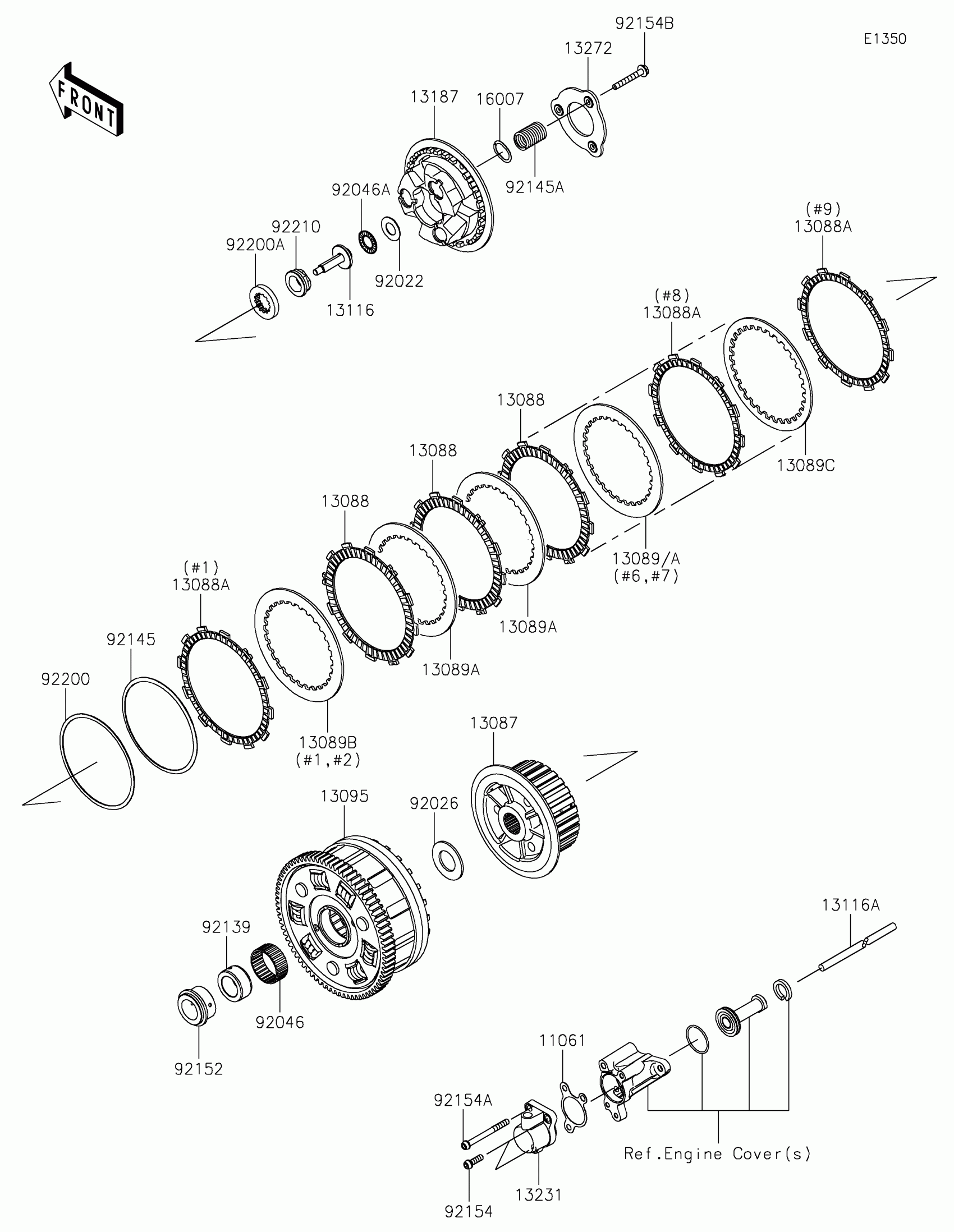

Kawasaki NINJA H2™ Clutch Diagram

GASKET,CLUTCH RELEASE

HUB-CLUTCH

PLATE-FRICTION

PLATE-FRICTION

PLATE-CLUTCH,T=2.3

PLATE-CLUTCH,T=2.6

PLATE-CLUTCH,T=2.9

PLATE-CLUTCH,T=2.9

PLATE-CLUTCH,T=2.6

HOUSING-COMP-CLUTCH

ROD-PUSH

ROD-PUSH

PLATE-CLUTCH OPERATING

RELEASE-ASSY-CLUTCH

PLATE

SEAT-SPRING

WASHER,15.1X29X1.0

SPACER,25.5X47X2.5

BEARING-NEEDLE

BEARING-NEEDLE,AXK1102

BUSHING,25X38X17.3

SPRING

SPRING

COLLAR

BOLT,SOCKET,6X20

BOLT,SOCKET,6X65

BOLT,FLANGED,6X45

WASHER,T=1.2

WASHER,TOOTHED,38.5X25X6.3

NUT
