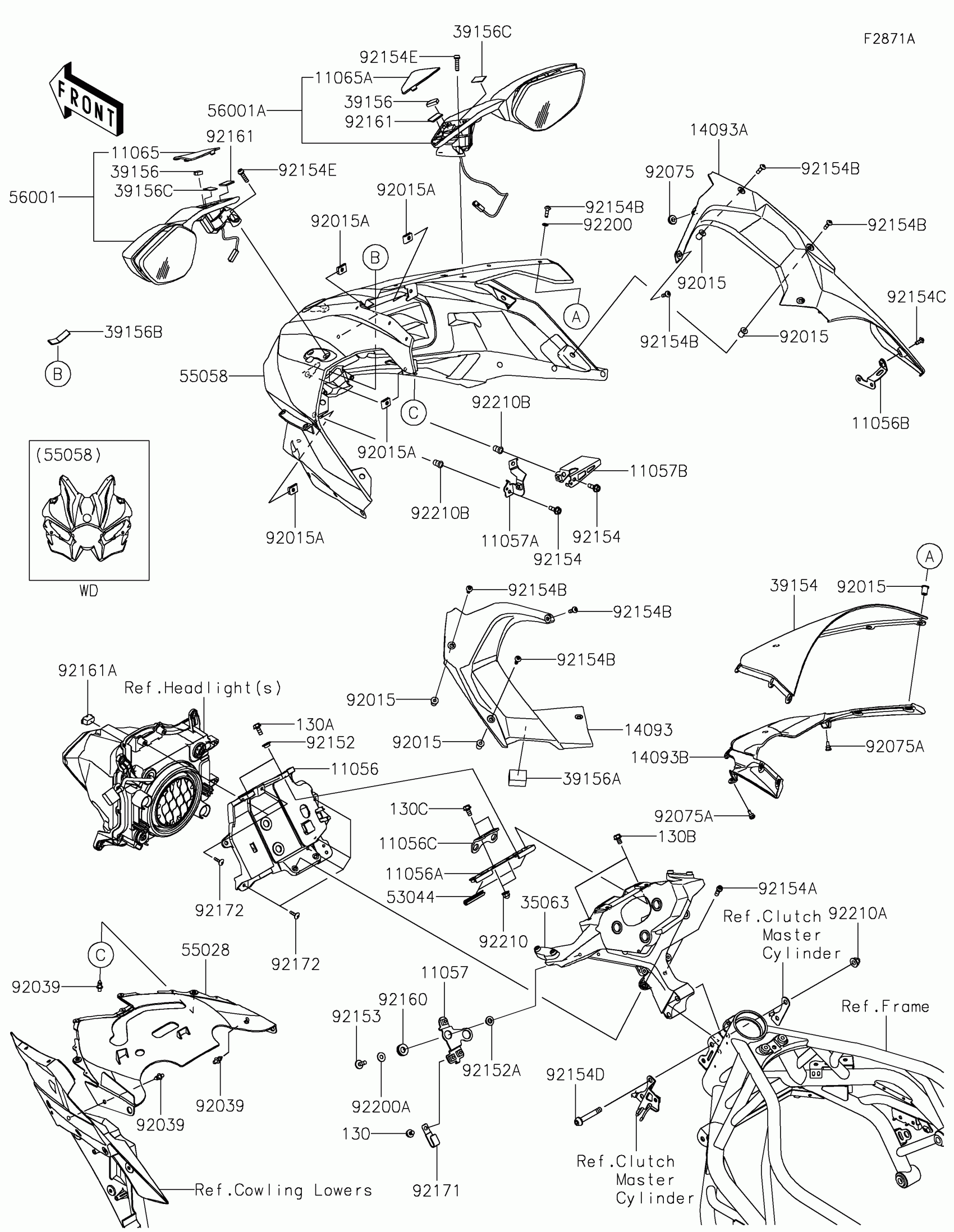

Kawasaki NINJA H2® CARBON ABS Cowling(JRANN/JRANL/JSANN/JSANL) Diagram

#

Description
Price

11056

BRACKET,HEAD LAMP

11056-4497

$67.84

11056A

BRACKET,METER STAY

11056-7076

$11.75

11056B

BRACKET,INNER COVER

11056-7098

$7.69

11056C

BRACKET,V.D. SENSOR

11056-7534

$11.03

11057

BRACKET,GYRO SENSOR

11057-0447

$15.29

11057A

BRACKET

11057-0765

$12.95

11057B

BRACKET,HEAD LAMP HARNESS

11057-0777

$12.02

11065

CAP,UPP,LH

11065-0922

$7.41

11065A

CAP,UPP,RH

11065-0923

$7.41

14093

COVER,INNER,LH

14093-0182

$30.42

14093A

COVER,INNER,RH

14093-0183

$37.96

14093B

COVER,METER VISOR

14093-0783

$52.82

35063

STAY,UPP COWL.,M.F.S.BLACK

35063-1459-46R

$493.85

39154

WINDSHIELD

39154-0341

$178.80

39156

PAD,12X10X8

39156-1809

$1.59

39156A

PAD,20X30X24

39156-1900

$1.80

39156B

PAD,10X50X2

39156-1924

$2.02

39156C

PAD,15X25X1

39156-2119

$1.59

53044

TRIM

53044-0580

$4.53

55028

COWLING,UPP,LWR

55028-0539

$29.18

55058

COWLING,UPP,CARBON

55058-5351-53F

$6,957.72

56001

MIRROR-ASSY,LH,M.F.S.BLACK

56001-0330-739

$381.49

56001A

MIRROR-ASSY,RH,M.F.S.BLACK

56001-0331-739

$407.27

92015

NUT,WELL,5MM

92015-1757

$5.58

92015A

NUT,5MM

92015-1996

$7.49

92039

RIVET

92039-0060

$2.34

92075

DAMPER,6X16X7

92075-1011

$5.61

92075A

DAMPER,6X10X15

92075-1808

$1.06

92152

COLLAR,6.5X10X5.6

92152-0445

$3.74

92152A

COLLAR,6.5X16X7.3

92152-2336

$12.24

92153

BOLT,6X18

92153-0816

$1.57

92154

BOLT,FLANGED,6X16

92154-0899

$1.66

92154A

BOLT,SOCKET,6X18

92154-1455

Unavailable

92154B

BOLT,SOCKET,5X16

92154-1560

$1.77

92154C

BOLT,SOCKET,5X12

92154-1561

$2.05

92154D

BOLT,SOCKET,8X52

92154-1710

$10.08

92154E

BOLT,SOCKET,6X22

92154-1724

$1.77

92160

DAMPER

92160-1278

$3.35

92161

DAMPER,16X23X2

92161-1696

$0.93

92161A

DAMPER,HEAD LAMP

92161-1734

$5.24

92171

CLAMP

92171-0305

$7.12

92172

SCREW,TAPPING,5X16

92172-0238

$0.84

92200

WASHER,5.2X10X1.0

92200-1820

$0.60

92200A

WASHER,6.5X16X1.0

92200-3712

$2.84

92210

NUT,CAP,6MM

92210-0003

$0.60

92210A

NUT,CAP,8MM

92210-1132

$3.19

92210B

NUT,POP,6MM,L=15

92210-1397

$4.81

130

BOLT-FLANGED,6X8

130BA0608

$0.69

130A

BOLT-FLANGED,6X14

130BA0614

$0.97

130B

BOLT-FLANGED,6X10

130BB0610

$1.77

130C

BOLT-FLANGED,6X12

130R0612

$1.10
