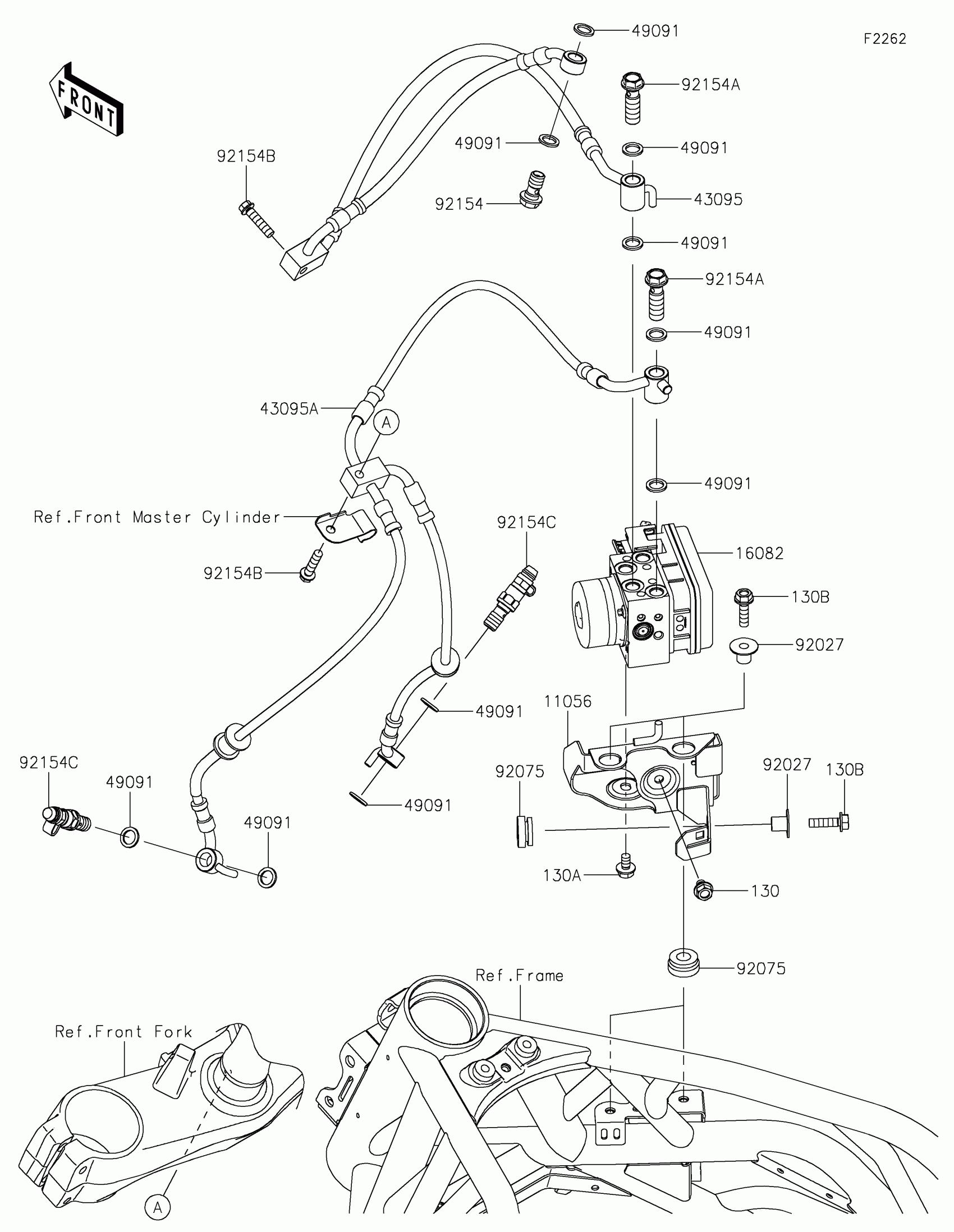

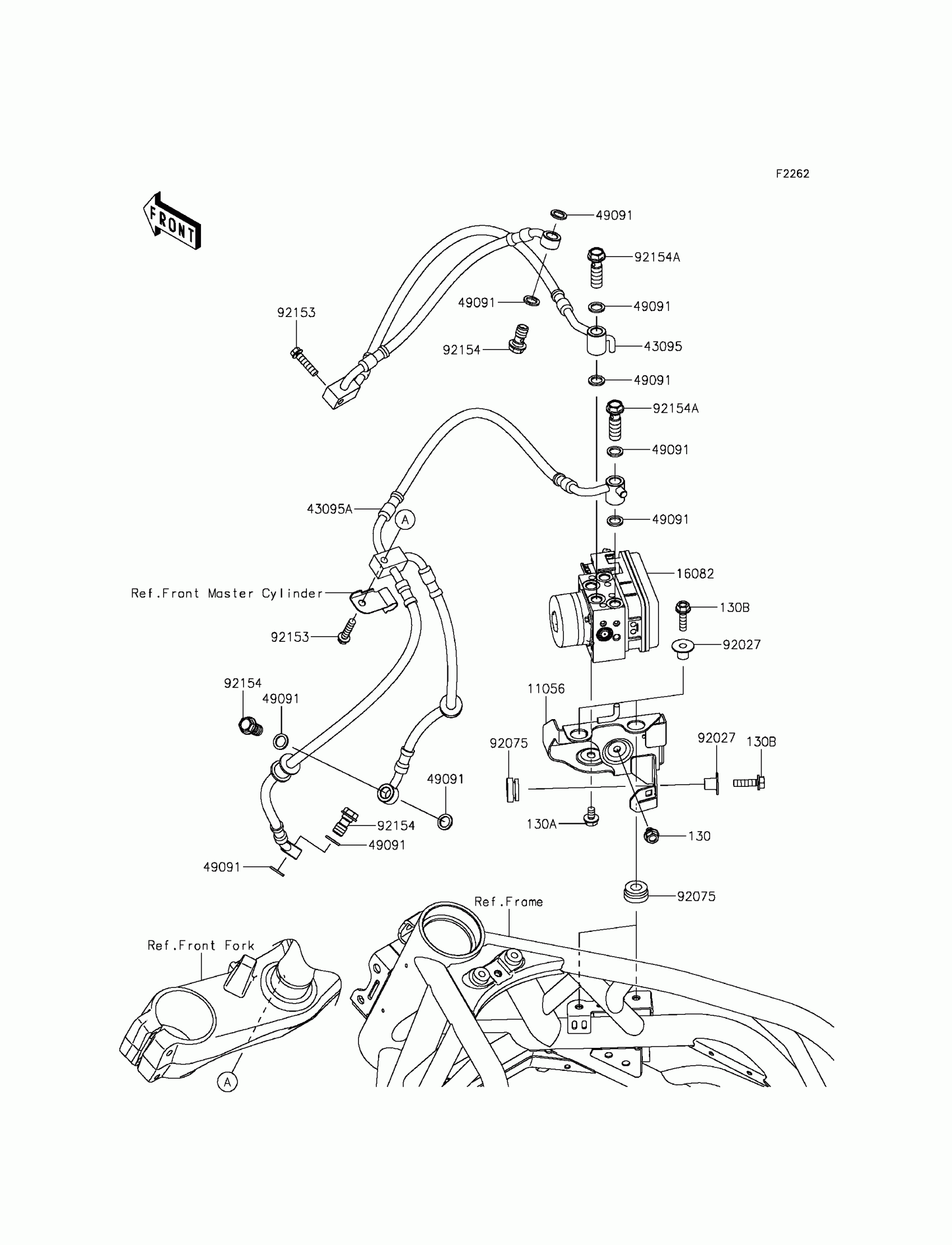

Kawasaki NINJA H2™ Brake Piping Diagram

Description

Price

130

BOLT-FLANGED,6X8

130BB0608

$6.07

130A

BOLT-FLANGED,6X10

130BB0610

$2.49

130B

BOLT-FLANGED,6X22

130BB0622

$3.67

11056

BRACKET,ABS UNIT

11056-7665

$51.13

16082

PUMP-ASSY-OIL,ABS

16082-0740

$1,792.10

43095

HOSE-BRAKE,M/C-HU

43095-0854

$351.57

43095A

HOSE-BRAKE,ABS UNIT-FR CALIPER

43095-0902

$489.93

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92027

COLLAR,L=12

92027-1062

$7.34

92075

DAMPER

92075-277

$2.84

92153

BOLT,FLANGED,6X25

92153-1795

$2.15

92154

BOLT,BANJO,10X19

92154-1554

$23.53

92154A

BOLT,BANJO,10X32.3

92154-1555

$30.66
