Description

Price

11061

GASKET,HOLDER

11061-0948

$14.81

11061A

GASKET,TENSIONER

11061-1279

$4.41

12046

SPROCKET,DRIVE,22T

12046-0581

$68.91

12046A

SPROCKET,DRIVEN,25T

12046-0584

$69.10

12048

TENSIONER-ASSY

12048-0108

$241.75

12053

GUIDE-CHAIN,UPP

12053-0249

$106.79

12053A

GUIDE-CHAIN,LWR

12053-0250

$31.79

13107

SHAFT

13107-0821

$110.21

13194

CLUTCH-ONEWAY

13194-0017

$119.47

13272

PLATE

13272-1849

$5.98

13280

HOLDER

13280-0917

$366.04

14093

COVER

14093-0131

$133.23

15060

COMPRESSOR-ASSY

15060-0015

$4,163.15

16085

GEAR,STARTER,56T

16085-0633

$192.76

16085A

GEAR,BALANCER,46T

16085-0634

$268.39

42034

COUPLING

42034-0741

$139.41

49065

FILTER-OIL

49065-0041

$43.69

92005

FITTING,OIL LINE

92005-0769

$22.80

92033

RING-SNAP

92033-3731

$6.16

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92045

BEARING-BALL,#6905

92045-036

$27.88

92045A

BEARING-BALL,6202ZC3

92045-0785

$11.58

92045B

BEARING-BALL

92045-1404

$20.09

92046

BEARING-NEEDLE,22X32X24

92046-0622

$30.56

92055

RING-O,2.4X62.6

92055-0790

$3.92

92055A

RING-O,104.4X3.1

92055-1020

$14.23

92057

CHAIN,98XRH2020-78N2

92057-0633

$93.12

92062

NOZZLE

92062-0004

$4.49

92066

PLUG

92066-0821

$117.50

92150

BOLT,8X30

92150-1728

$4.69

92152

COLLAR

92152-1939

$7.82

92152A

COLLAR

92152-1993

$54.58

92154

BOLT,SOCKET,6X16

92154-1454

$1.19

92154A

BOLT,SOCKET,6X25

92154-1458

$2.26

92154B

BOLT,SOCKET,6X14

92154-1460

$2.49

92154C

BOLT

92154-1476

$21.18

92154D

BOLT,SOCKET,6X20

92154-1667

$2.49

92154E

BOLT,SOCKET,6X30

92154-1668

$2.26

92154F

BOLT,SOCKET,8X30

92154-1679

$16.25

92154G

BOLT

92154-2824

$1.69

92161

DAMPER

92161-0945

$26.66

92200

WASHER,8.2X16X1.6

92200-0047

$2.90

92200A

WASHER,10.3X22X2.5

92200-0958

$11.77

92200B

WASHER,15.2X24X3

92200-1799

$14.13

92200C

WASHER,8.5X24X4.0

92200-3811

$3.86

130

BOLT-FLANGED,8X90

130CC0890

$10.65

670

O RING,10MM

670D1510

$4.69

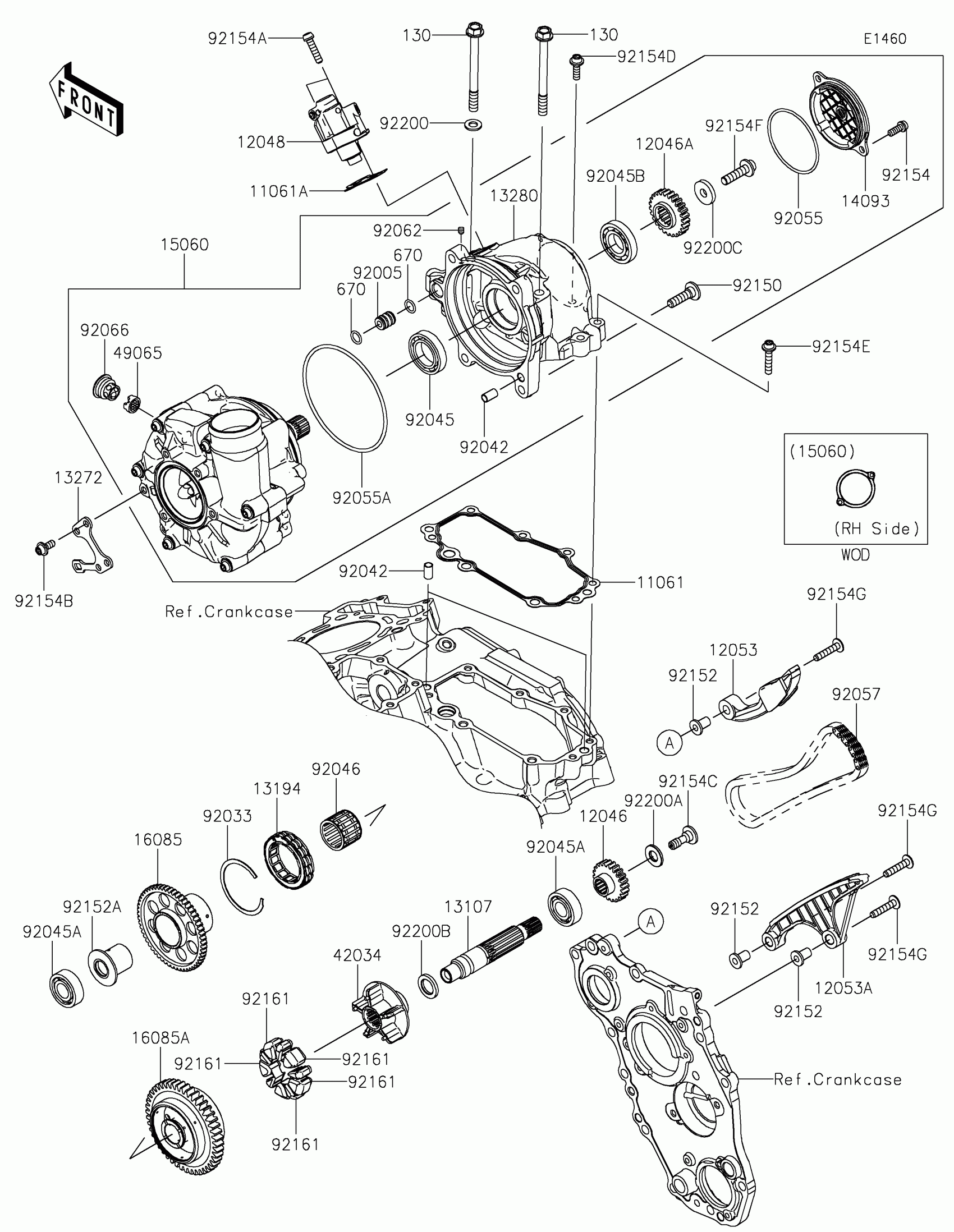

Kawasaki NINJA H2® ABS Super Charger Diagram

GASKET,HOLDER

GASKET,TENSIONER

SPROCKET,DRIVE,22T

SPROCKET,DRIVEN,25T

TENSIONER-ASSY

GUIDE-CHAIN,UPP

GUIDE-CHAIN,LWR

SHAFT

CLUTCH-ONEWAY

PLATE

HOLDER

COVER

COMPRESSOR-ASSY

GEAR,STARTER,56T

GEAR,BALANCER,46T

COUPLING

FILTER-OIL

FITTING,OIL LINE

RING-SNAP

PIN,DOWEL,6.3X8X14

BEARING-BALL,#6905

BEARING-BALL,6202ZC3

BEARING-BALL

BEARING-NEEDLE,22X32X24

RING-O,2.4X62.6

RING-O,104.4X3.1

CHAIN,98XRH2020-78N2

NOZZLE

PLUG

BOLT,8X30

COLLAR

COLLAR

BOLT,SOCKET,6X16

BOLT,SOCKET,6X25

BOLT,SOCKET,6X14

BOLT

BOLT,SOCKET,6X20

BOLT,SOCKET,6X30

BOLT,SOCKET,8X30

BOLT

DAMPER

WASHER,8.2X16X1.6

WASHER,10.3X22X2.5

WASHER,15.2X24X3

WASHER,8.5X24X4.0

BOLT-FLANGED,8X90

O RING,10MM
