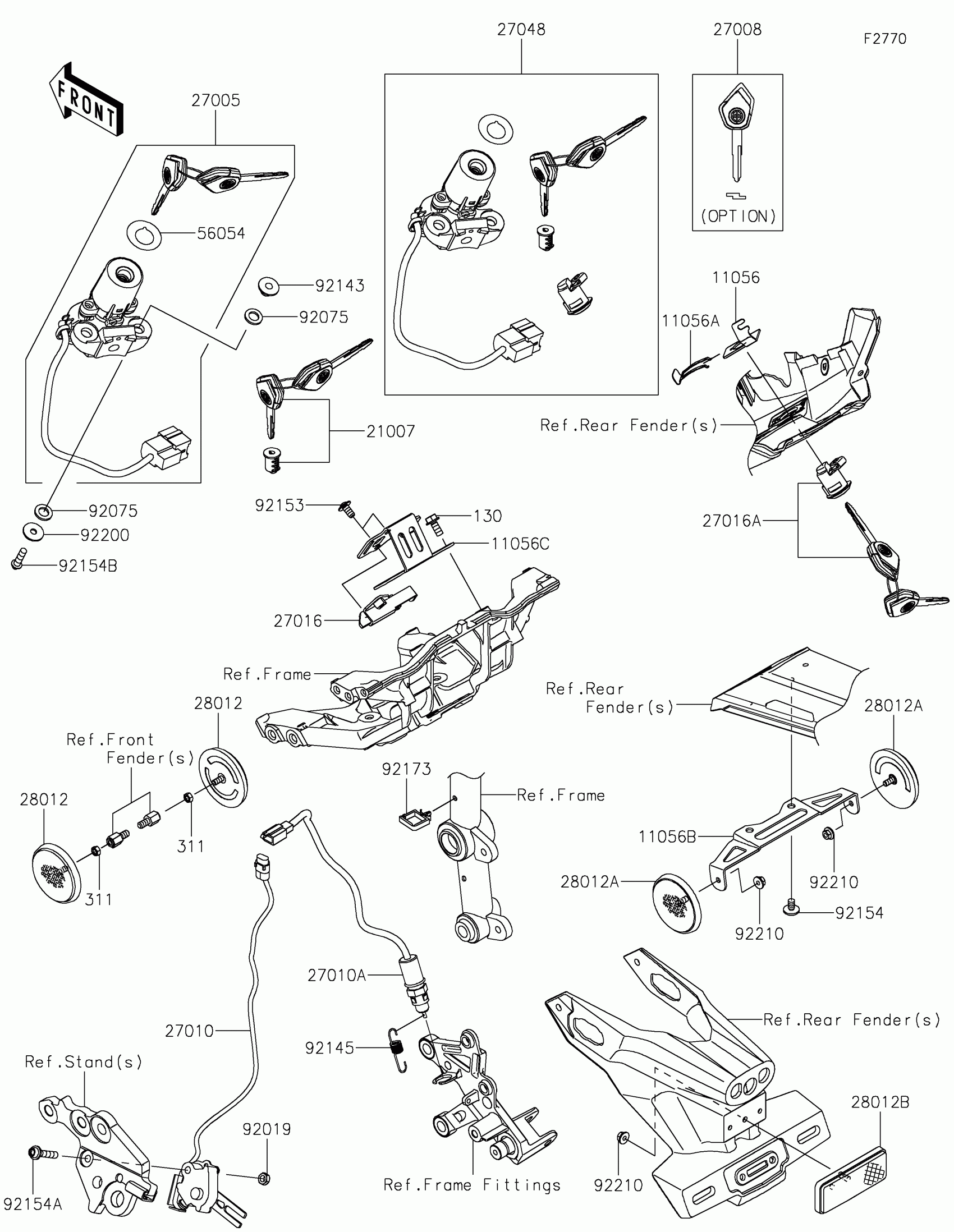

Kawasaki NINJA H2® ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

11056

BRACKET

11056-0237

$4.41

11056A

BRACKET,CLASP

11056-0238

$6.00

11056B

BRACKET,REFLECTOR

11056-4496

$16.76

11056C

BRACKET,SEAT LOCK

11056-7045

$17.65

21007

ROTOR,LOCK,TANK CAP

21007-5079

$97.55

27005

SWITCH-ASSY-IGNITION

27005-0603

$346.41

27008

KEY-LOCK,BLANK

27008-0590

$81.11

27010

SWITCH,SIDE STAND

27010-0825

$115.66

27010A

SWITCH,STOP

27010-0836

$35.01

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$28.59

27016A

LOCK-ASSY,SEAT

27016-5389

$96.64

27048

SWITCH-ASSY

27048-5056

$614.15

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-0002

$24.14

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

56054

MARK,IGNITION

56054-1596

$10.21

92019

NUT,LOCK,6MM

92019-008

$4.26

92075

DAMPER

92075-1564

$5.48

92143

COLLAR,L=9.6

92143-1016

$6.22

92145

SPRING

92145-1884

$8.60

92153

BOLT,SOCKET,6X12

92153-1617

$1.34

92154

BOLT,SOCKET,6X10

92154-1693

$1.71

92154A

BOLT,SOCKET,6X30

92154-1736

$3.29

92154B

BOLT,TORX,6X22

92154-1858

$3.94

92173

CLAMP

92173-1513

$3.73

92200

WASHER,6X20X1.6

92200-0212

$3.35

92210

NUT,FLANGED,5MM

92210-0007

$2.70

130

BOLT-FLANGED,6X14

130CB0614

$2.34

311

NUT-HEX,5MM

311AB0500

$0.43
