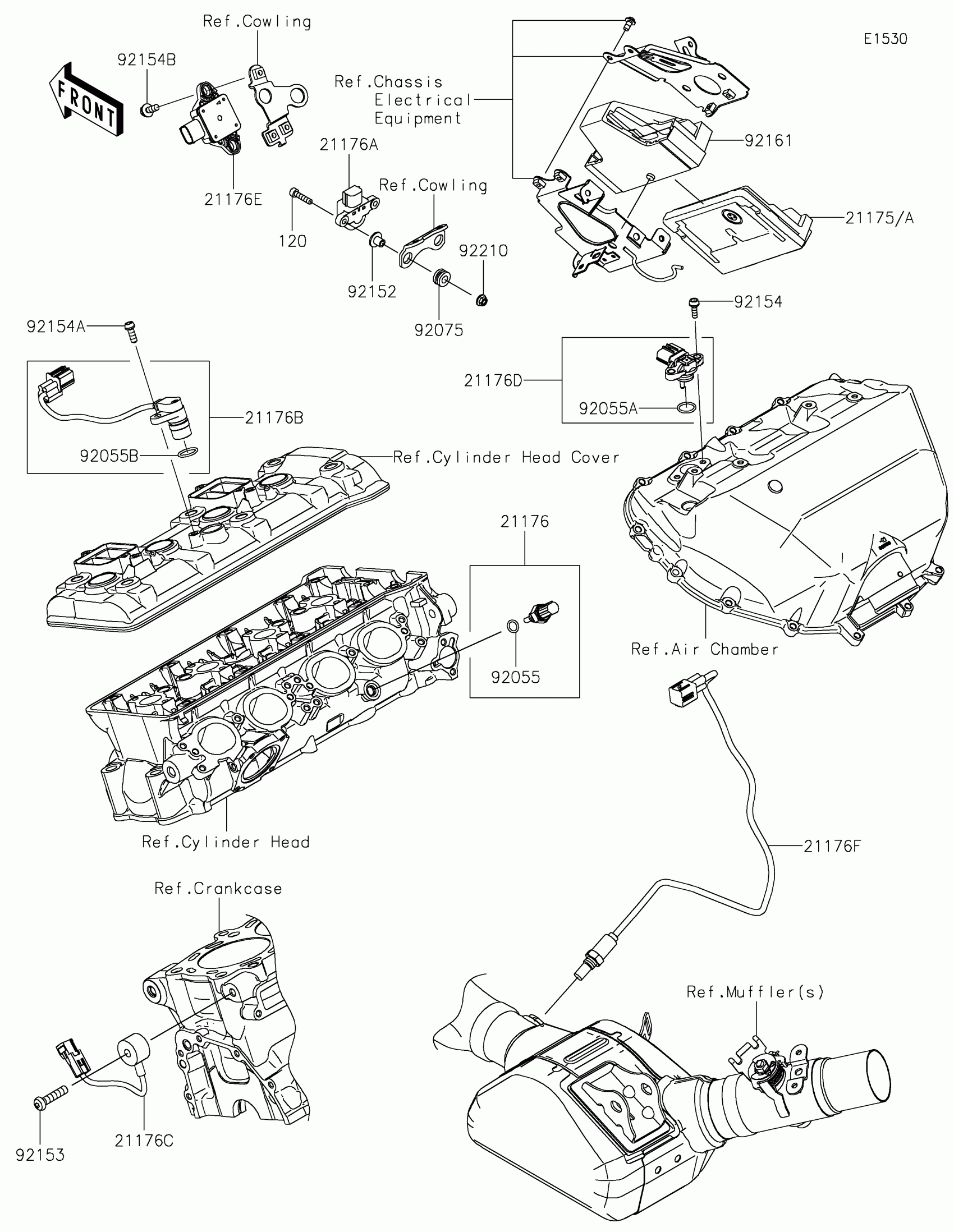

Kawasaki NINJA H2® ABS Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-1457

Unavailable

21175A

CONTROL UNIT-ELECTRONIC

21175-1458

$1,167.99

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,CAM

21176-0101

$124.44

21176C

SENSOR,KNOCK

21176-0788

$133.37

21176D

SENSOR,INTAKE TEMP&PRESSURE

21176-0791

$140.35

21176E

SENSOR,INERTIAL

21176-0878

$666.31

21176F

SENSOR,OXYGEN

21176-0933

$235.01

92055

RING-O,9.5X1.9

92055-0016

$8.89

92055A

RING-O

92055-0842

$6.63

92055B

RING-O

92055-1639

$3.09

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-1969

$61.28

92153

BOLT,SOCKET,8X35

92153-0419

$3.26

92154

BOLT,SOCKET,5X16

92154-1449

$1.19

92154A

BOLT,SOCKET,6X16

92154-1454

$1.19

92154B

BOLT,FLANGED,6X16

92154-1851

$2.15

92161

DAMPER,ECU

92161-1719

$29.61

92210

NUT,FLANGED,5MM

92210-0950

$3.92

120

BOLT-SOCKET,5X22

120R0522

$2.55
