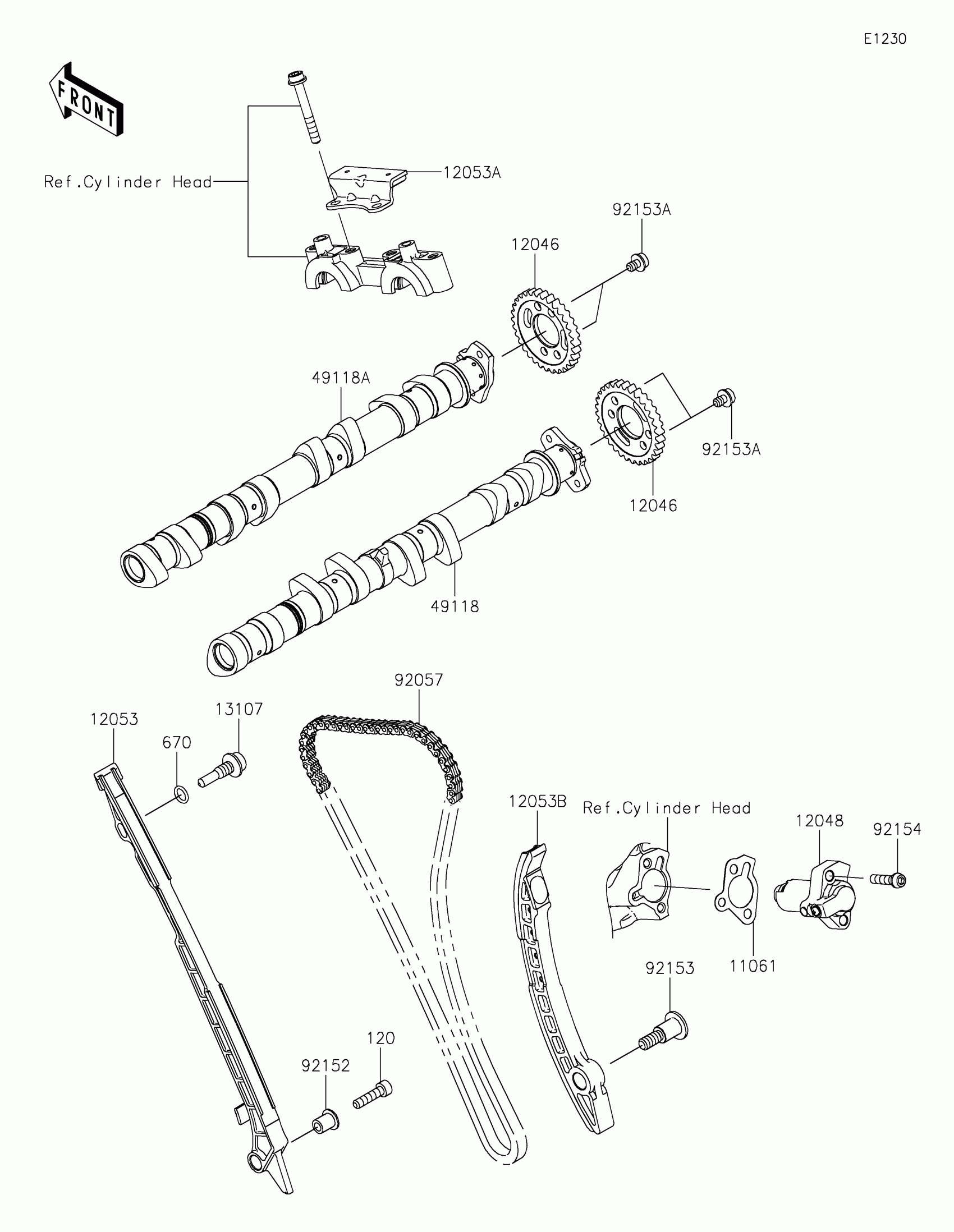

Kawasaki NINJA H2® ABS Camshaft(s)/Tensioner Diagram

Description

Price

11061

GASKET,TENSIONER

11061-0796

$2.64

12046

SPROCKET,32T

12046-0582

$52.85

12048

TENSIONER-ASSY

12048-0120

$185.93

12053

GUIDE-CHAIN,FR

12053-0251

$75.36

12053A

GUIDE-CHAIN,UPP

12053-0297

$45.48

12053B

GUIDE-CHAIN,RR

12053-0333

$113.02

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

49118

CAMSHAFT-COMP,INTAKE

49118-0817

$419.89

49118A

CAMSHAFT-COMP,EXHAUST

49118-0818

$419.89

92057

CHAIN,98XRH2015-126M

92057-0202

$110.12

92152

COLLAR

92152-0413

$8.68

92153

BOLT,SOCKET,8X16.7

92153-0446

$10.11

92153A

BOLT,FLANGED,6X8

92153-0455

$2.55

92154

BOLT,SOCKET,6X25

92154-1457

$1.48

120

BOLT-SOCKET,6X25

120CA0625

$2.06

670

O RING,9MM

670D1509

$4.69
