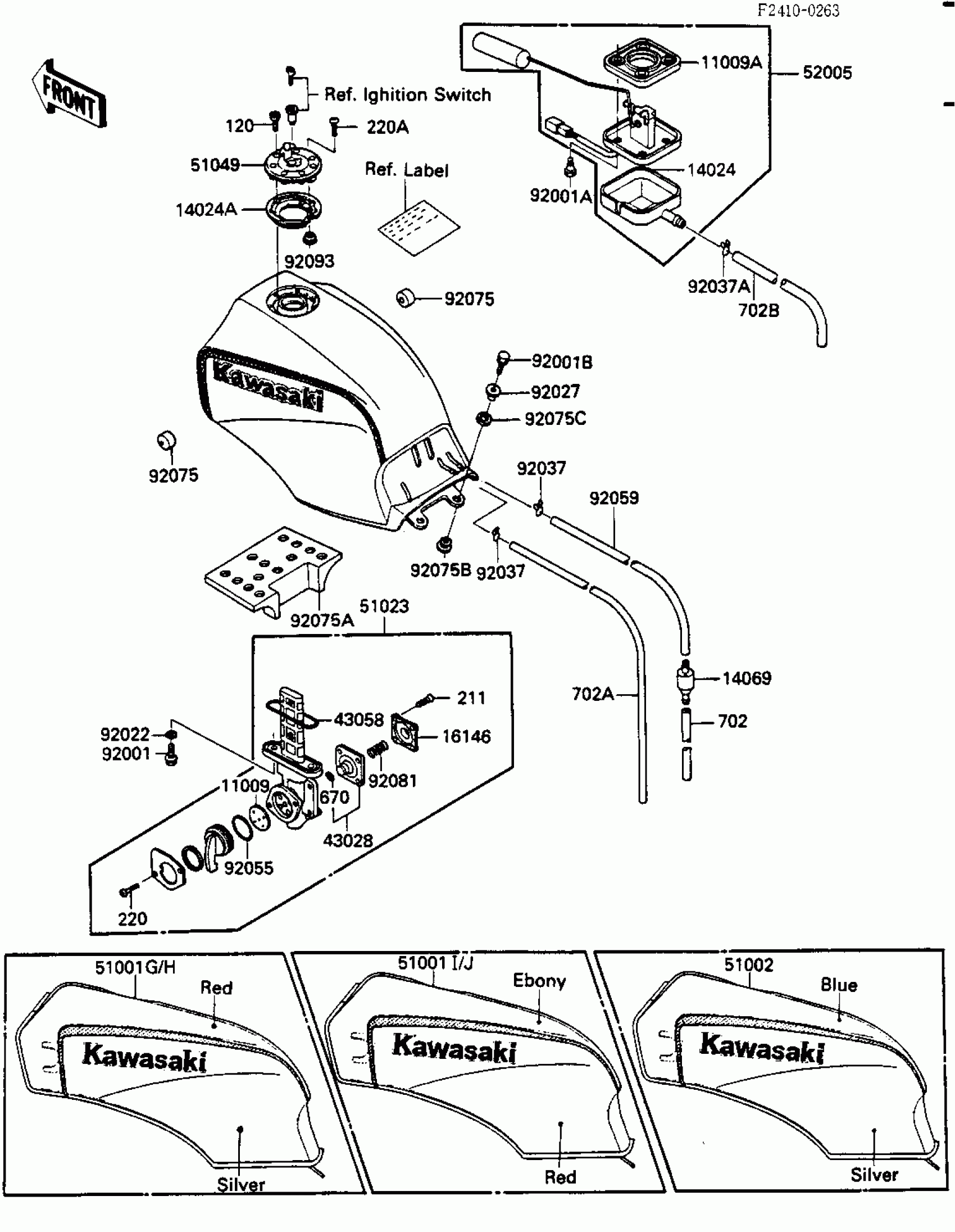

Kawasaki Ninja® FUEL TANK (ZX900-A2) Diagram
#
11009
GASKET,TAP VALVE
11009-1194
$9.95
11009A
GASKET,FUEL GAUGE
11009-1656
Unavailable
14024
COVER,FUEL GAUGE
14025-1536
Unavailable
14024A
COVER,TANK CAP
14025-1913
$21.55
14069
BREATHER,FUEL TANK
14069-1004
$10.19
16146
COVER-ASSY,TAP DIAPHRAGM
16146-1005
$21.09
43028
DIAPHRAGM,TAP
43028-1015
$21.93
43058
RING,TAP FLANGED
51039-010
$7.55
51001G
TANK-COMP-FUEL,R/SILV
51001-5459-M7
Unavailable
51001H
TANK-COMP-FUEL,F.RED/
51002-5092-M7
$850.26
51001I
TANK-COMP-FUEL,EB/RED
51001-5470-J3
Unavailable
51001J
TANK-COMP-FUEL,EBONY/
51002-5094-J3
$1,041.29
51002
51002-5096-L8 (Canada)
51002-5001-L8
Unavailable
51023
TAP-ASSY,FUEL
51023-1110
$141.02
51049
CAP-TANK,FUEL
51049-1079
$133.30
52005
GAUGE,FUEL
52005-1058
Unavailable
92001
BOLT,6X20
92001-1091
$3.92
92001A
BOLT,FUEL GAUGE
92001-1705
Unavailable
92001B
BOLT,6X25
92002-1137
$4.39
92022
WASHER-PLAIN
92022-183
$3.92
92027
COLLAR,6.8X10X14.5
92027-156
$5.00
92037
CLAMP,TUBE
92037-010
$3.92
92037A
CLAMP,TUBE
92037-147
$7.34
92055
RING-O,TAP LEVER
92055-1027
$5.23
92059
TUBE,7X10X230
92059-1519
$13.38
92075
DAMPER,FUEL TANK
92075-125
$6.22
92075A
DAMPER,FUEL TANK
92075-1672
$37.47
92075B
RUBBER,FENDER COVER
92075-174
$4.78
92075C
DAMPER,FEMALE
92075-175
$4.39
92081
SPRING,TAP DIAPHRAGM
92081-1171
$4.35
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
120
BOLT-SOCKET,5X12
120S0512
$1.71
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
220A
SCREW-PAN-CROSS
220C0508
$0.55
221
SCREW-CSK-CROS,4X14
221B0414
$3.41
670
O RING,4MM
670B1504
$4.11
702
TUBE-BREATHER (BULK)
702A071000
$13.38
702A
TUBE-BREATHER (BULK)
702A071000
$13.38
702B
TUBE-BREATHER (BULK)
702A071000
$13.38
