Description

Price

11009

GASKET

11009-1477

Unavailable

11009A

GASKET,FORK DRAIN PLUG

44045-002

$5.18

11009B

GASKET

44045-057

$4.86

14070

BODY-BREATHER

14070-1056

Unavailable

14070A

BODY-BREATHER

14070-1057

Unavailable

16016

PLUNGER

16016-1063

Unavailable

16126A

VALVE,AIR

16126-1052

$35.06

16131

BODY-VALVE

16131-1057

Unavailable

16165

SEPARATOR

16165-1051

Unavailable

32099

CASE

32099-1067

Unavailable

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43058

RING

43058-1052

Unavailable

43058A

RING

43058-1053

Unavailable

44001A

FORK-FRONT

44001-1564

$2,171.64

44005

PIPE-LEFT FORK OUTER

44005-1217

$520.49

44006

PIPE-RIGHT FORK OUTER

44006-1217

$472.98

44013

PIPE-FORK INNER

44013-1219

Unavailable

44022

CYLINDER-FORK

44022-1167

$132.15

44026

SPRING-FRONT FORK

44026-1277

$89.93

44029

SEAT-FORK SPRING,LH

44029-1109

$44.69

44029B

SEAT-FORK SPRING,RH

44029-1114

$70.65

44037

HOLDER-FORK UNDER

44037-1167

$466.96

44039

HOLDER-FORK UPPER

44039-1103

$274.96

44065

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$25.96

44065A

BUSHING,FORK PIPE

92028-1126

$49.26

49116

VALVE-ASSY

49116-1055

$124.10

51044

TUBE-ASSY

51044-1059

$112.23

56030

LABEL,AVDS MARK

56030-1057

Unavailable

56040

LABEL-WARNING,FRONT FORK

56040-1110

Unavailable

92002

BOLT,SOCKET,6X16

92002-1166

$7.21

92002A

BOLT,SOCKET,5X12

92002-1289

$5.48

92002B

BOLT,SOCKET,8X38

92002-1316

Unavailable

92002C

BOLT

92002-1317

Unavailable

92002D

BOLT,FORK TOP,LH

92002-1419

Unavailable

92002E

BOLT,FORK TOP,RH

92002-1420

Unavailable

92009

SCREW,4X8

92009-1324

$1.67

92022

WASHER,FORK OUTER PIPE

92022-1262

$8.60

92022A

WASHER

92022-1598

$8.05

92022B

WASHER,FORK OUTER PIPE,UPP

92022-1599

Unavailable

92022C

WASHER

92022-1636

Unavailable

92033

RING-SNAP,FORK

92033-1047

$6.46

92037

CLAMP,FRONT FORK

92037-1277

Unavailable

92049

SEAL-OIL,FORK

92049-1178

$29.51

92055

RING-O,ROD

92055-1369

$10.14

92055A

RING-O,ANTI-DIVE UNIT

92055-1201

$3.23

92055B

RING-O

92055-1250

Unavailable

92093

SEAL,FORK

92093-1162

$30.01

120

BOLT-SOCKET,8X25

120S0825

$4.37

220

SCREW-PAN-CROS

220E0414

$2.98

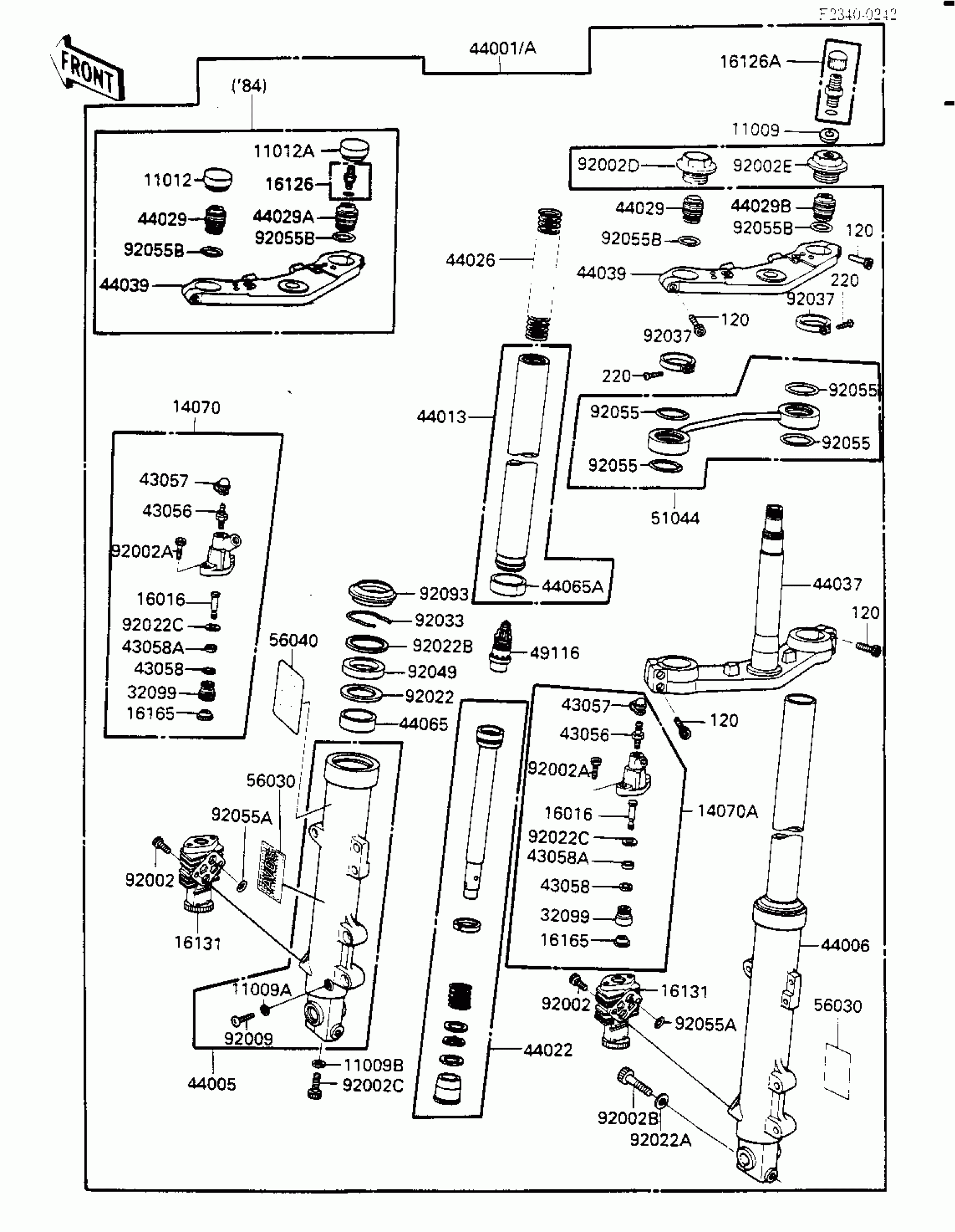

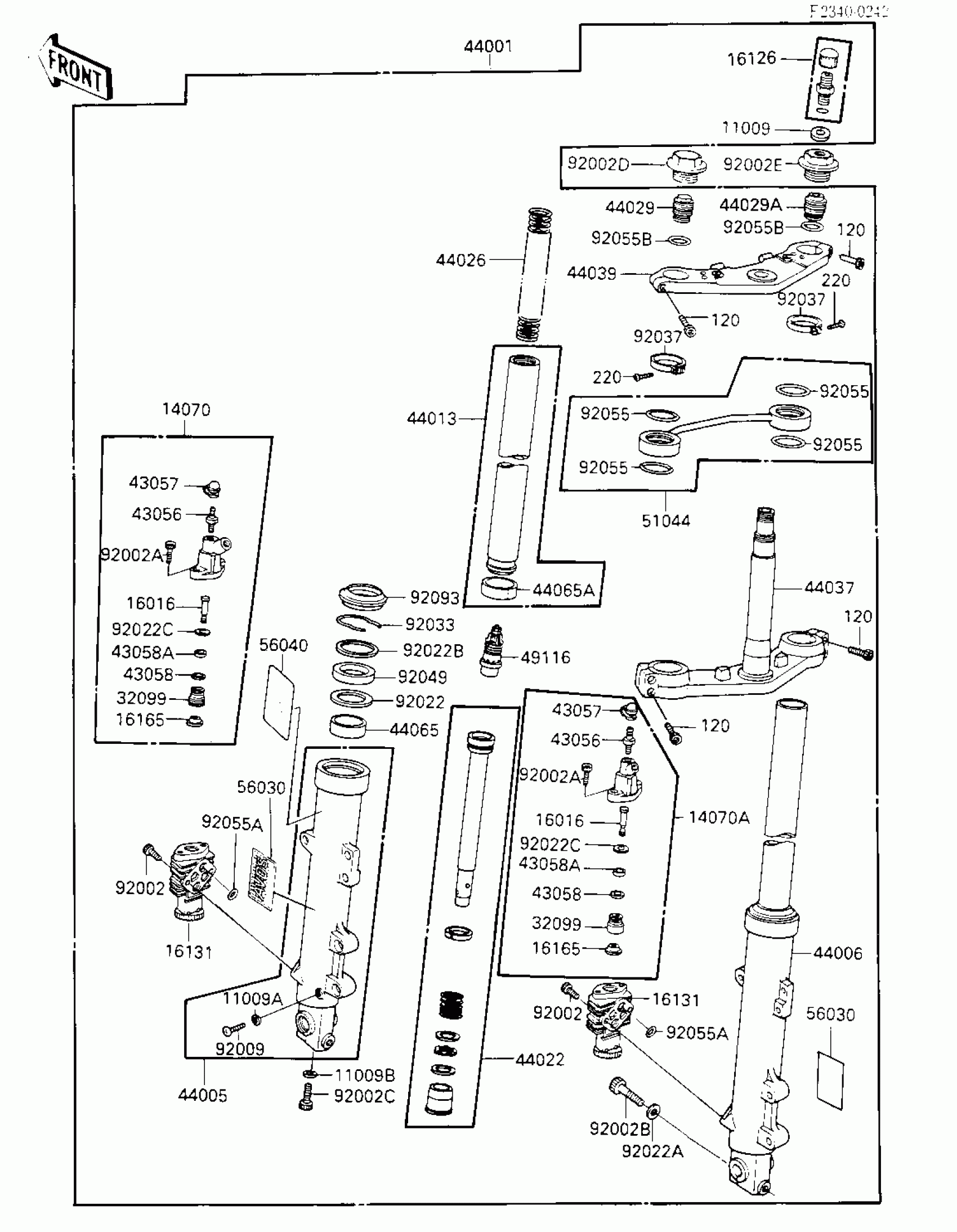

Kawasaki Ninja® FRONT FORK Diagram

GASKET

GASKET,FORK DRAIN PLUG

GASKET

BODY-BREATHER

BODY-BREATHER

PLUNGER

VALVE,AIR

BODY-VALVE

SEPARATOR

CASE

BREATHER

CAP-BREATHER

RING

RING

FORK-FRONT

PIPE-LEFT FORK OUTER

PIPE-RIGHT FORK OUTER

PIPE-FORK INNER

CYLINDER-FORK

SPRING-FRONT FORK

SEAT-FORK SPRING,LH

SEAT-FORK SPRING,RH

HOLDER-FORK UNDER

HOLDER-FORK UPPER

BUSHING-FRONT FORK,OUTER TUBE

BUSHING,FORK PIPE

VALVE-ASSY

TUBE-ASSY

LABEL,AVDS MARK

LABEL-WARNING,FRONT FORK

BOLT,SOCKET,6X16

BOLT,SOCKET,5X12

BOLT,SOCKET,8X38

BOLT

BOLT,FORK TOP,LH

BOLT,FORK TOP,RH

SCREW,4X8

WASHER,FORK OUTER PIPE

WASHER

WASHER,FORK OUTER PIPE,UPP

WASHER

RING-SNAP,FORK

CLAMP,FRONT FORK

SEAL-OIL,FORK

RING-O,ROD

RING-O,ANTI-DIVE UNIT

RING-O

SEAL,FORK

BOLT-SOCKET,8X25

SCREW-PAN-CROS
