Description

Price

34003

HOLDER-STEP,FR,LH

34003-1215

Unavailable

34003A

HOLDER-STEP,FR,RH

34003-1216

Unavailable

34028

STEP,RR,RUBBER

34028-1060

$23.50

34028A

STEP,FR,RUBBER

34028-1118

$27.74

34028B

STEP,FR,LH

34028-1119

Unavailable

34028C

STEP,FR,RH

34028-1120

Unavailable

34028D

STEP,RR,LH

34028-1121

Unavailable

34028E

STEP,RR,RH

34028-1122

Unavailable

92002

BOLT,8X16

92001-1897

$5.59

92022

WASHER,STEP,RR

92022-1507

$5.24

92027

COLLAR,STEP

92027-1732

$11.16

92043

PIN,12X37

92043-1144

$9.15

92043A

PIN,BANK SENSOR

92043-1219

$11.91

92043B

PIN,6X38.5

92043-1238

$5.23

92075

DAMPER,BANK SENSOR

92075-1597

$6.15

92081

SPRING,STEP RETURN

92144-1568

$6.51

92081A

SPRING,STEP,RR

92081-1612

$4.26

92081B

SPRING,STEP RETURN

92144-1567

$6.51

120

BOLT-SOCKET,5X14

120Z0514

$4.35

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.73

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.34

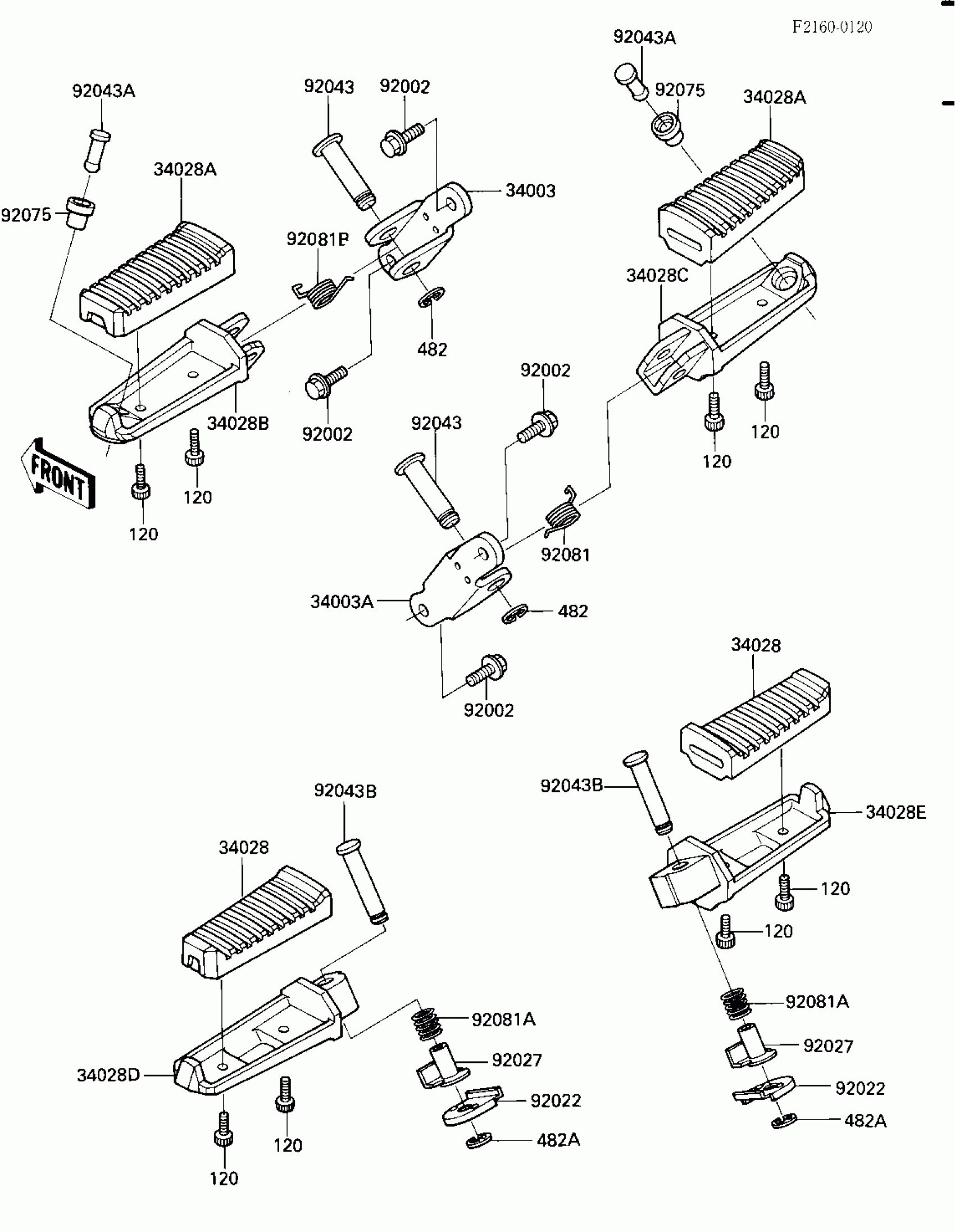

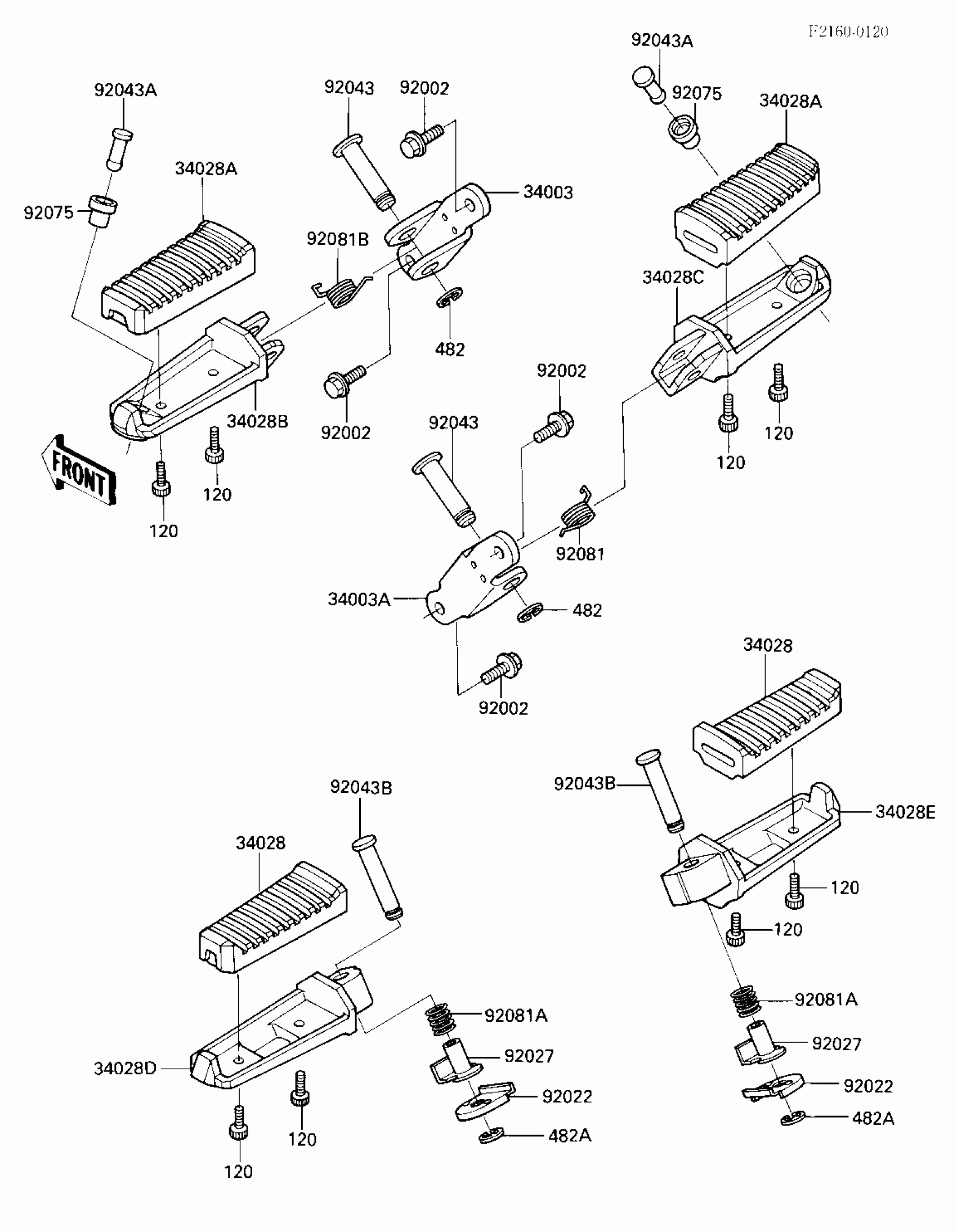

Kawasaki Ninja® FOOTRESTS Diagram

HOLDER-STEP,FR,LH

HOLDER-STEP,FR,RH

STEP,RR,RUBBER

STEP,FR,RUBBER

STEP,FR,LH

STEP,FR,RH

STEP,RR,LH

STEP,RR,RH

BOLT,8X16

WASHER,STEP,RR

COLLAR,STEP

PIN,12X37

PIN,BANK SENSOR

PIN,6X38.5

DAMPER,BANK SENSOR

SPRING,STEP RETURN

SPRING,STEP,RR

SPRING,STEP RETURN

BOLT-SOCKET,5X14

CIRCLIP-TYPE-E,10MM

CIRCLIP-TYPE-E,5MM
