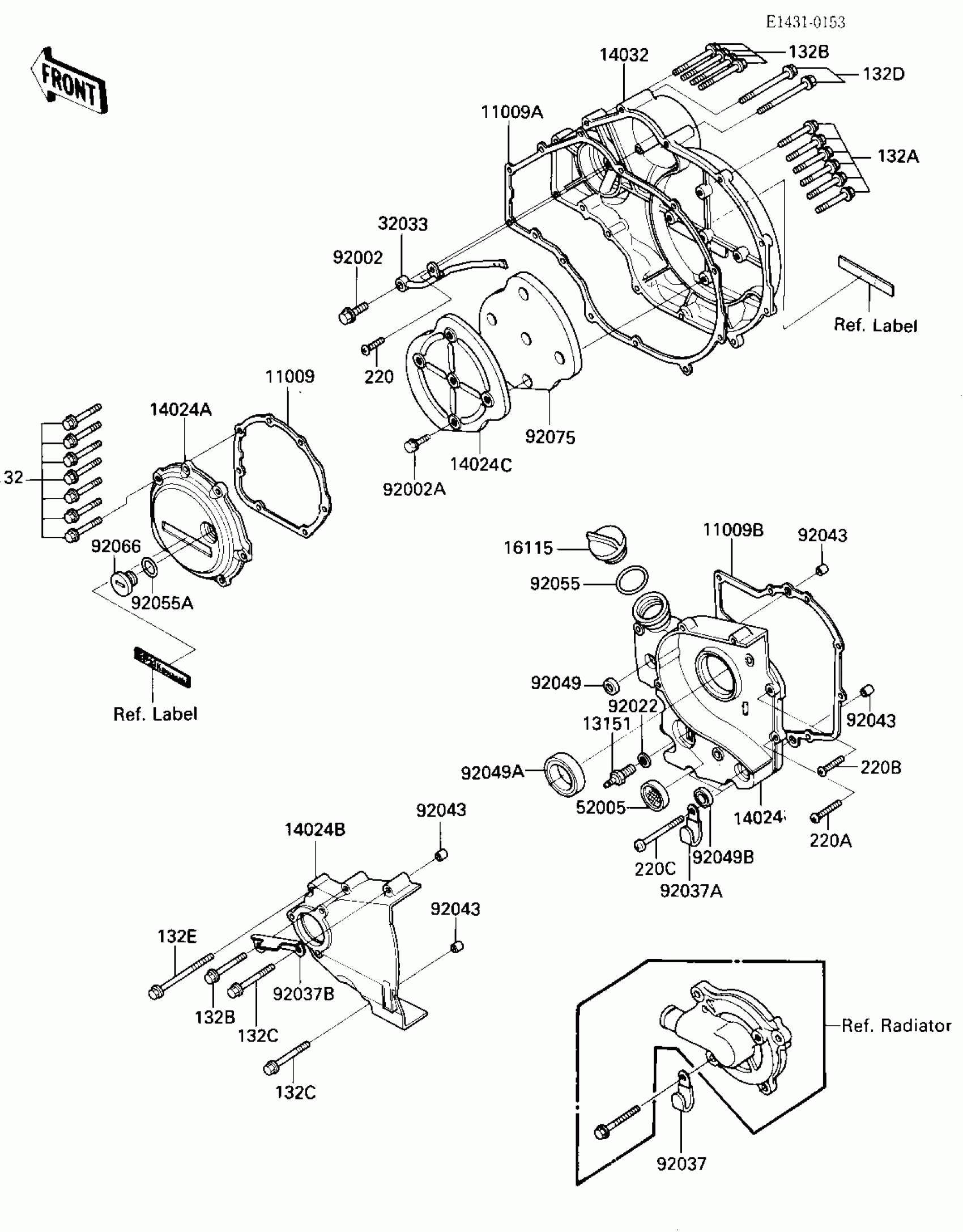

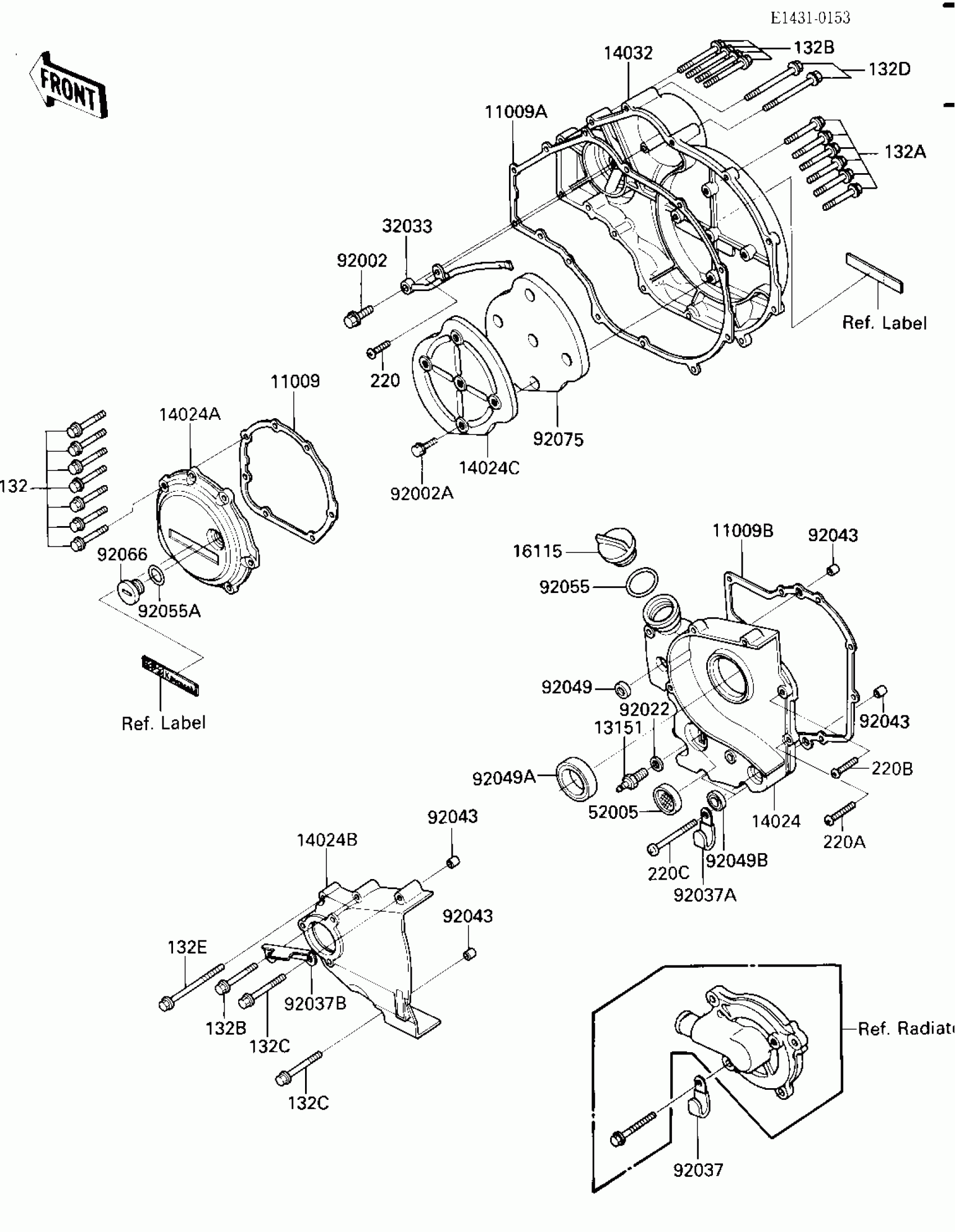

Kawasaki Ninja® ENGINE COVERS Diagram
#
11009
GASKET,COVER,LH
11009-1863
Unavailable
11009A
GASKET,CLUTCH COVER
11009-1860
Unavailable
11009B
GASKET,TRANSMISSION COVER
11009-1982
Unavailable
13151
SWITCH-COMP,NEUTRAL
13151-1007
Unavailable
14024
COVER,TRANSMISSION
14024-1716
$189.78
14024A
COVER,PULSING
14024-1721
$91.50
14024B
COVER-CHAIN,CHAIN
14026-1173
Unavailable
14024C
COVER,SOUND ARRESTER
14025-1895
Unavailable
14032
COVER-CLUTCH
14032-1179
Unavailable
16115
CAP-OIL FILLER
16115-1009
$14.30
32033
PIPE,CLUTCH COVER
32033-1204
$30.63
52005
GAUGE,OIL LEVEL
52005-1057
$25.24
92002
BOLT,BANJO,8X20
92001-1855
Unavailable
92002A
BOLT,6X10
92002-1449
$4.11
92022
GASKET,10.5X16X1
92065-058
$3.96
92037
CLAMP,WIRING HARNESS,L=60
92037-1069
Unavailable
92037A
CLAMP,L=45
92037-1539
$5.00
92037B
CLAMP,OIL HOSE
92037-1541
Unavailable
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92049
SEAL-OIL,SD-8187
92049-1017
$9.89
92049A
SEAL-OIL,AE2343F0
92049-1070
$16.56
92049B
SEAL-OIL,TB13205
92049-1186
$8.47
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,20X2
92055-1146
$8.58
92066
PLUG,COVER
92066-1163
$14.76
92075
DAMPER,CLUTCH COVER
92075-1633
$124.38
132
BOLT-FLANGED-SMALL,6X20
132J0620
$3.64
132A
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
132B
BOLT-FLANGED-SMALL,6X40
132J0640
$4.44
132C
BOLT-FLANGED-SMALL,6X50
132J0650
$4.44
132D
BOLT-FLANGED-SMALL,6X55
132J0655
$4.44
132E
BOLT-FLANGED-SMALL
132J0680
$5.55
220
SCREW PAN HEAD 5X10
220B0510
$0.69
220A
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
220B
SCREW PAN HEAD 6X25
220B0625
$2.60
220C
SCREW PAN HEAD 6X50
220B0650
$1.25
