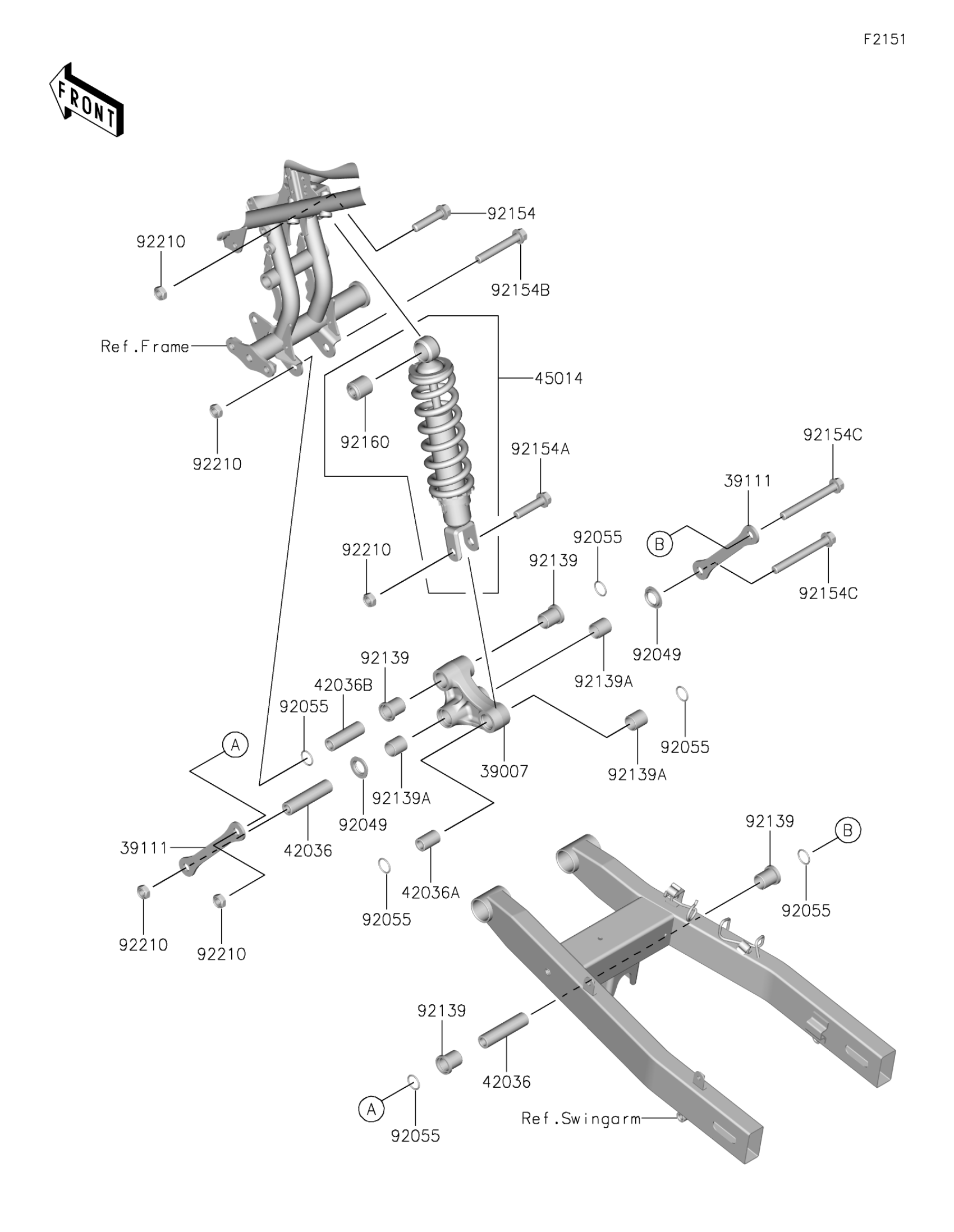

Kawasaki NINJA® e-1 ABS Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP

39007-0513

$128.32

39111

ROD-TIE,SUSPENSION

39111-0404

$33.84

42036

SLEEVE,12.1X20X83

42036-0807

$32.15

42036A

SLEEVE,12.1X20X32

42036-0823

$12.21

42036B

SLEEVE,12.1X20X62

42036-0824

$16.27

45014

SHOCKABSORBER,BLACK

45014-0803-10

$702.13

92049

SEAL-OIL

92049-0849

$9.28

92055

RING-O,19.8X2.2

92055-0732

$1.19

92139

BUSHING,20X23X29

92139-0890

$7.36

92139A

BUSHING,20X23X24

92139-0940

$5.08

92154

BOLT,FLANGED,12X55

92154-0362

$4.10

92154A

BOLT,FLANGED,12X52

92154-0942

$8.30

92154B

BOLT,FLANGED,12X80

92154-1308

$11.00

92154C

BOLT,FLANGED,12X105

92154-7156

$19.76

92160

DAMPER,SHOCKABSORBER

92160-1161

$30.91

92210

NUT,LOCK,12MM

92210-1247

$7.71
