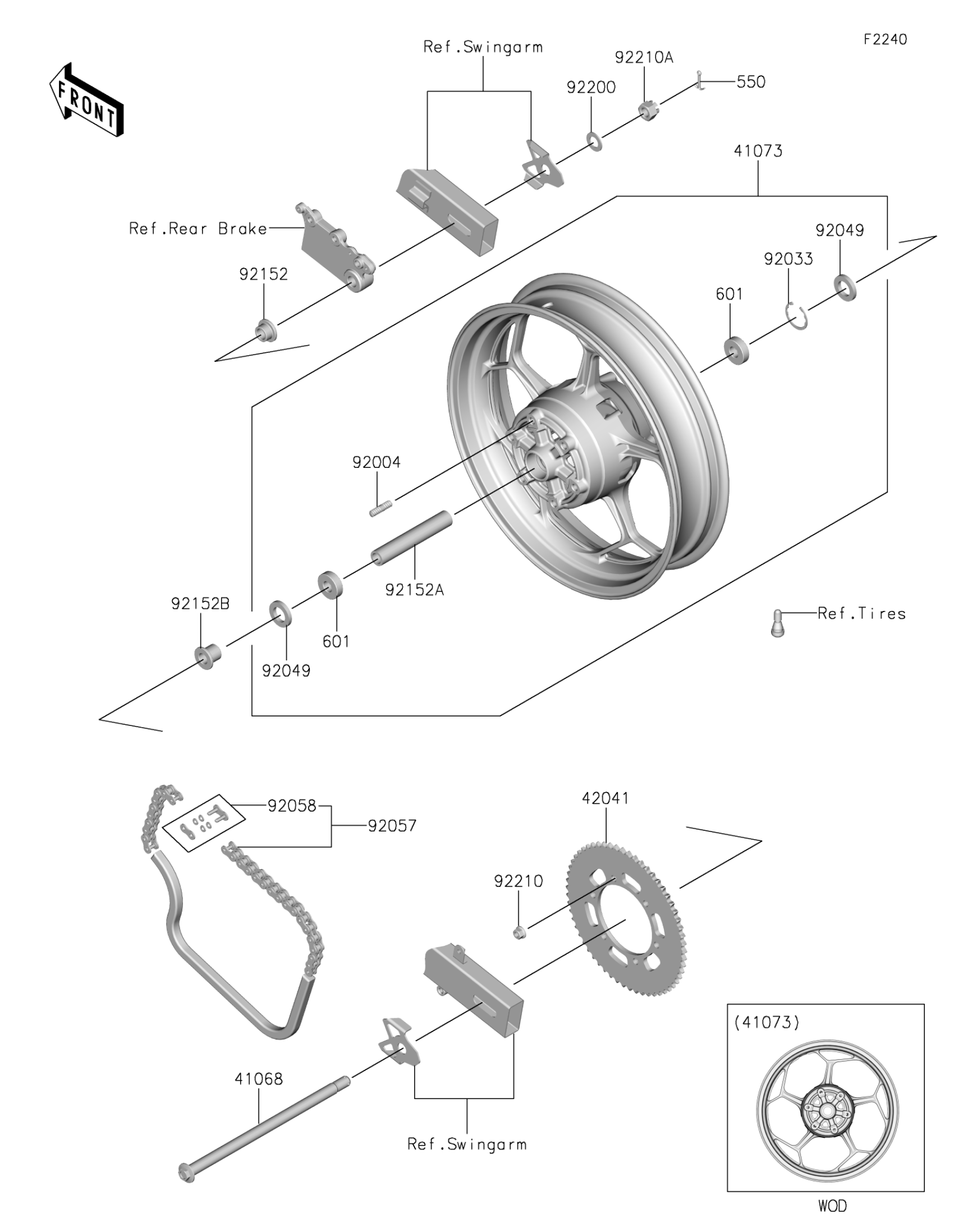

Kawasaki NINJA® e-1 ABS Rear Wheel/Chain Diagram

Description

Price

41068

AXLE,RR

41068-0644

$69.43

41073

WHEEL-ASSY,RR,G.BLACK

41073-0825-QT

$685.08

42041

SPROCKET-HUB,58T

42041-0195

$79.38

92004

STUD,10X19

92004-0048

$8.51

92033

RING-SNAP,40MM

92033-1040

$5.90

92049

SEAL-OIL

92049-0794

$13.79

92057

CHAIN,DRIVE,RK428KLOX136L

92057-0885

$87.52

92058

JOINT-CHAIN,DRIVE

92058-0085

$18.42

92152

COLLAR,17X24X16

92152-1760

$27.73

92152A

COLLAR,17.1X24X141

92152-2317

$23.30

92152B

COLLAR

92152-2977

$24.30

92200

WASHER,17.3X30X2

92200-1916

$1.17

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210A

NUT,CASTLE,16X19

92210-1585

$6.63

550

PIN-COTTER,4.0X35

550AA4035

$2.17

601

BEARING-BALL,#6203UUC3

601B6203UU

$22.99
