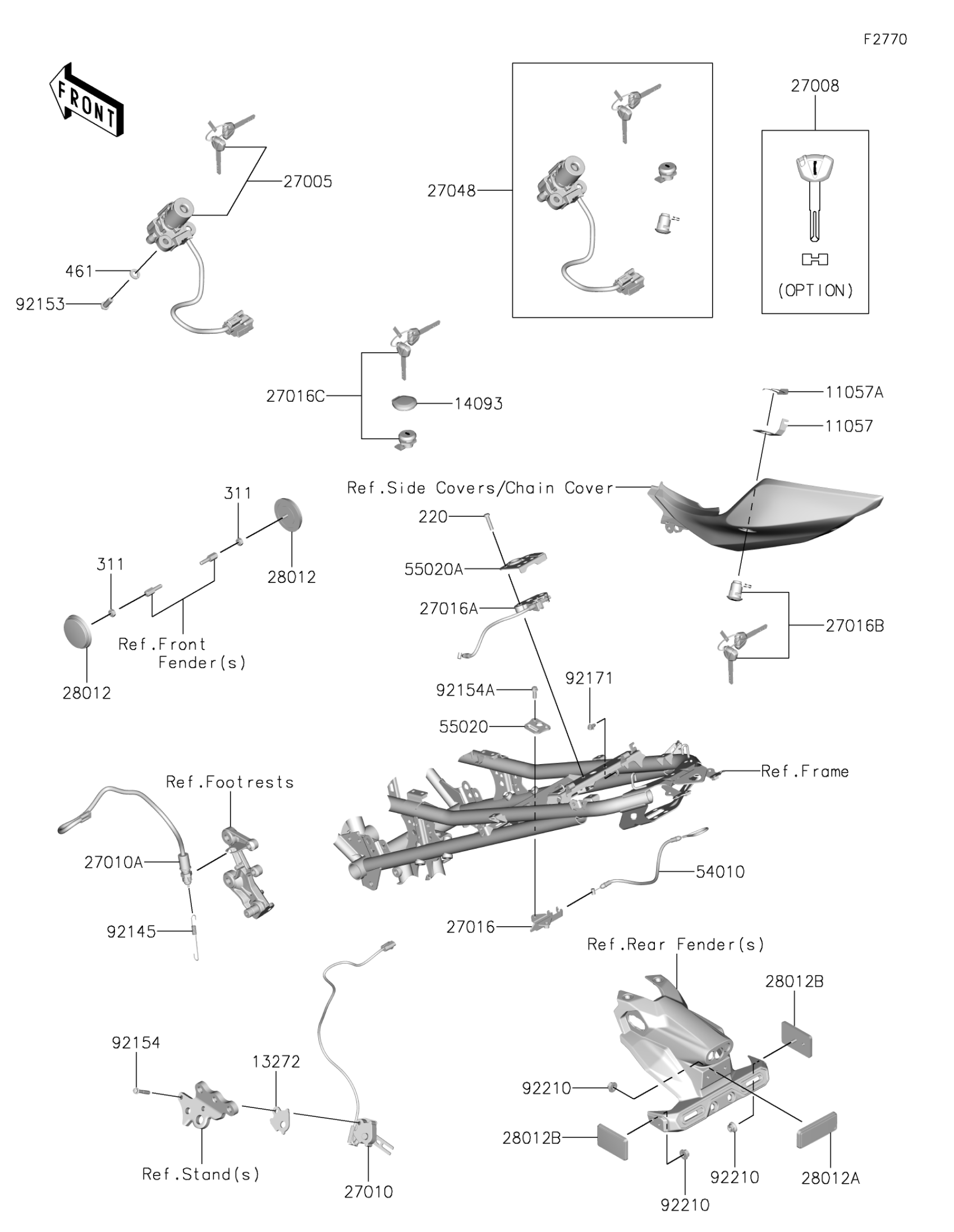

Kawasaki NINJA® e-1 ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

11057

BRACKET,SEAT LOCK

11057-7033

$4.40

11057A

BRACKET,SEAT LOCK,UPP

11057-7740

$2.08

13272

PLATE

13272-1330

$3.71

14093

COVER,KEY

14093-1525

$5.09

27005

SWITCH-ASSY-IGNITION

27005-0748

$178.07

27008

KEY-LOCK,BLANK

27008-0662

$28.86

27010

SWITCH,SIDE STAND

27010-0845

$117.80

27010A

SWITCH,STOP

27010-0863

$29.07

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

$14.90

27016A

LOCK-ASSY,SEAT STRIKER

27016-0025

$28.71

27016B

LOCK-ASSY,SEAT

27016-5430

$134.28

27016C

LOCK-ASSY,STORAGE

27016-5435

$134.30

27048

SWITCH-ASSY

27048-5325

$424.53

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-1077

$23.25

28012B

REFLECTOR-REFLEX

28012-1088

$22.46

54010

CABLE

54010-0621

$10.35

55020

GUARD,SEAT STRIKER

55020-2246

$10.17

55020A

GUARD,SEAT STRIKER

55020-2477

$7.71

92145

SPRING,BRAKE LAMP SWITCH

92145-0683

$3.67

92153

BOLT,TORX,6X16

92153-1426

$3.90

92154

BOLT,FLANGED,6X35

92154-1009

$3.35

92154A

BOLT,FLANGED-SMALL,6X16,TB2468

92154-3869

$2.17

92171

CLAMP

92171-0939

$4.41

92210

NUT,FLANGED,5MM

92210-0007

$2.70

220

SCREW-PAN-CROS,6X25

220AC0625

$1.17

311

NUT-HEX,5MM

311AB0500

$0.43

461

WASHER-SPRING,6MM

461DA0600

$0.71
