Description

Price

11065

CAP

11065-1286

$44.62

44005

PIPE-LEFT FORK OUTER,F.S.BLK

44005-0130-18R

$505.46

44006

PIPE-RIGHT FORK OUTER,F.S.BLK

44006-0133-18R

$505.46

44013

PIPE-FORK INNER

44013-0415

$459.67

44023

CYLINDER-SET-FORK

44023-0197

$111.13

44024

CAP-OIL-LOCK

44024-0006

$12.94

44026

SPRING-FRONT FORK

44026-0299

$52.53

44029

SEAT-FORK SPRING

44029-1131

$10.36

44037

HOLDER-FORK UNDER,F.BLACK

44037-0178-21

$377.28

44039

HOLDER-FORK UPPER

44039-0176

$291.05

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK

44065-0076

$20.83

44065A

BUSHING-FRONT FORK

44065-0077

$20.55

44071

DAMPER-ASSY,LH

44071-1606

$707.88

44071A

DAMPER-ASSY,RH

44071-1607

$707.88

55020

GUARD,FORK

55020-0872

$11.66

92022

WASHER,30.5X50X0.6

92022-231

$4.69

92026

SPACER,FORK OUTER

92026-1276

$9.51

92033

RING-SNAP

92033-1222

$6.51

92048

RACE,STEERING STEM BEARING

92048-0048

$14.60

92049

SEAL-OIL

92049-0807

$22.70

92055

RING-O,FORK TOP

92055-1420

$5.52

92056

SEAL-OIL,STEERING STEM

92056-003

$8.86

92093

SEAL,DUST

92093-0717

$23.76

92152

COLLAR,FORK,L=300

92152-3785

$28.26

92153

BOLT,SOCKET,8X35

92153-0854

$7.83

92154

BOLT

92154-2551

$9.91

120

BOLT-SOCKET,8X35

120CC0835

$2.70

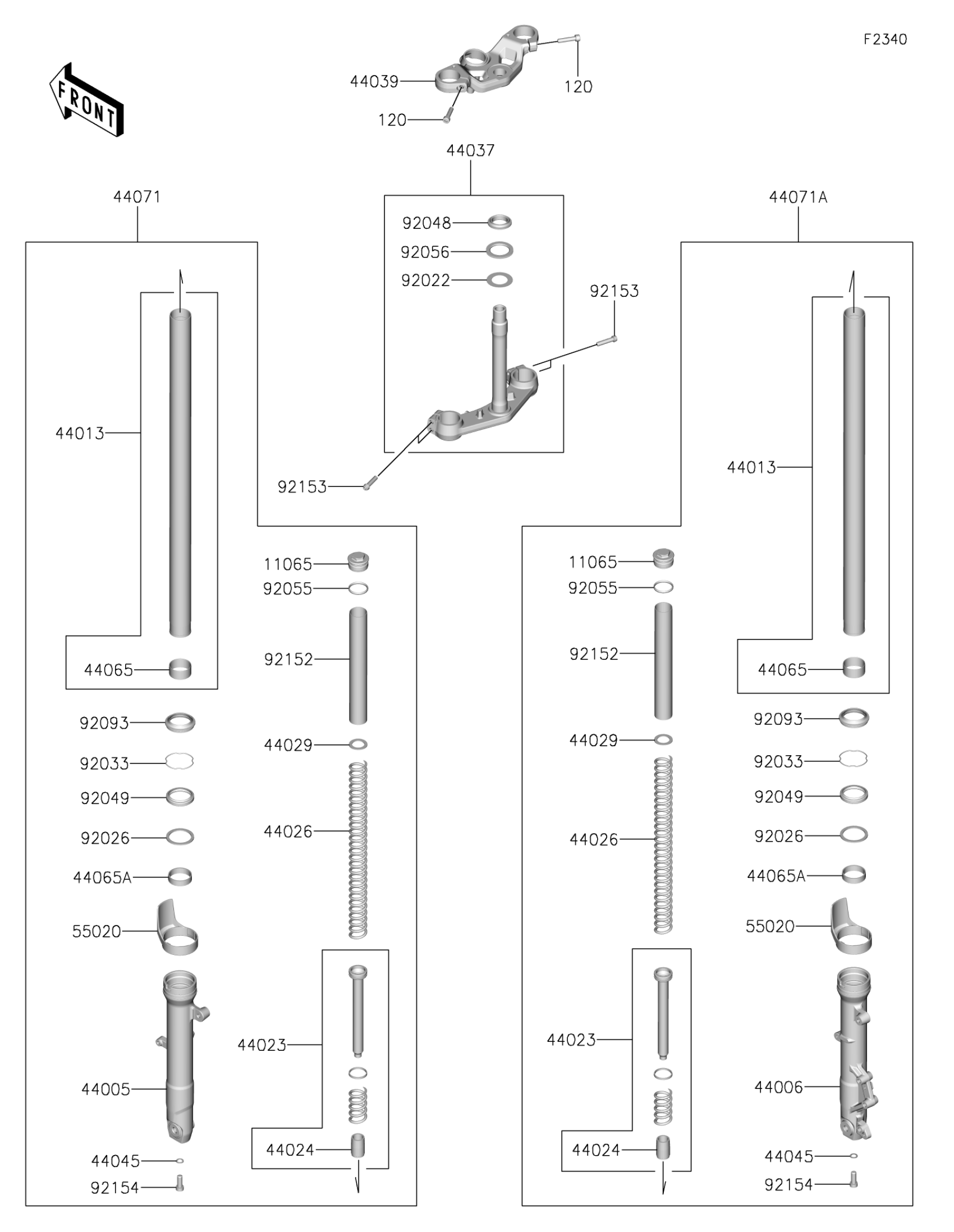

Kawasaki NINJA® e-1 ABS Front Fork Diagram

CAP

PIPE-LEFT FORK OUTER,F.S.BLK

PIPE-RIGHT FORK OUTER,F.S.BLK

PIPE-FORK INNER

CYLINDER-SET-FORK

CAP-OIL-LOCK

SPRING-FRONT FORK

SEAT-FORK SPRING

HOLDER-FORK UNDER,F.BLACK

HOLDER-FORK UPPER

GASKET,FORK CYLINDER BOLT

BUSHING-FRONT FORK

BUSHING-FRONT FORK

DAMPER-ASSY,LH

DAMPER-ASSY,RH

GUARD,FORK

WASHER,30.5X50X0.6

SPACER,FORK OUTER

RING-SNAP

RACE,STEERING STEM BEARING

SEAL-OIL

RING-O,FORK TOP

SEAL-OIL,STEERING STEM

SEAL,DUST

COLLAR,FORK,L=300

BOLT,SOCKET,8X35

BOLT

BOLT-SOCKET,8X35
