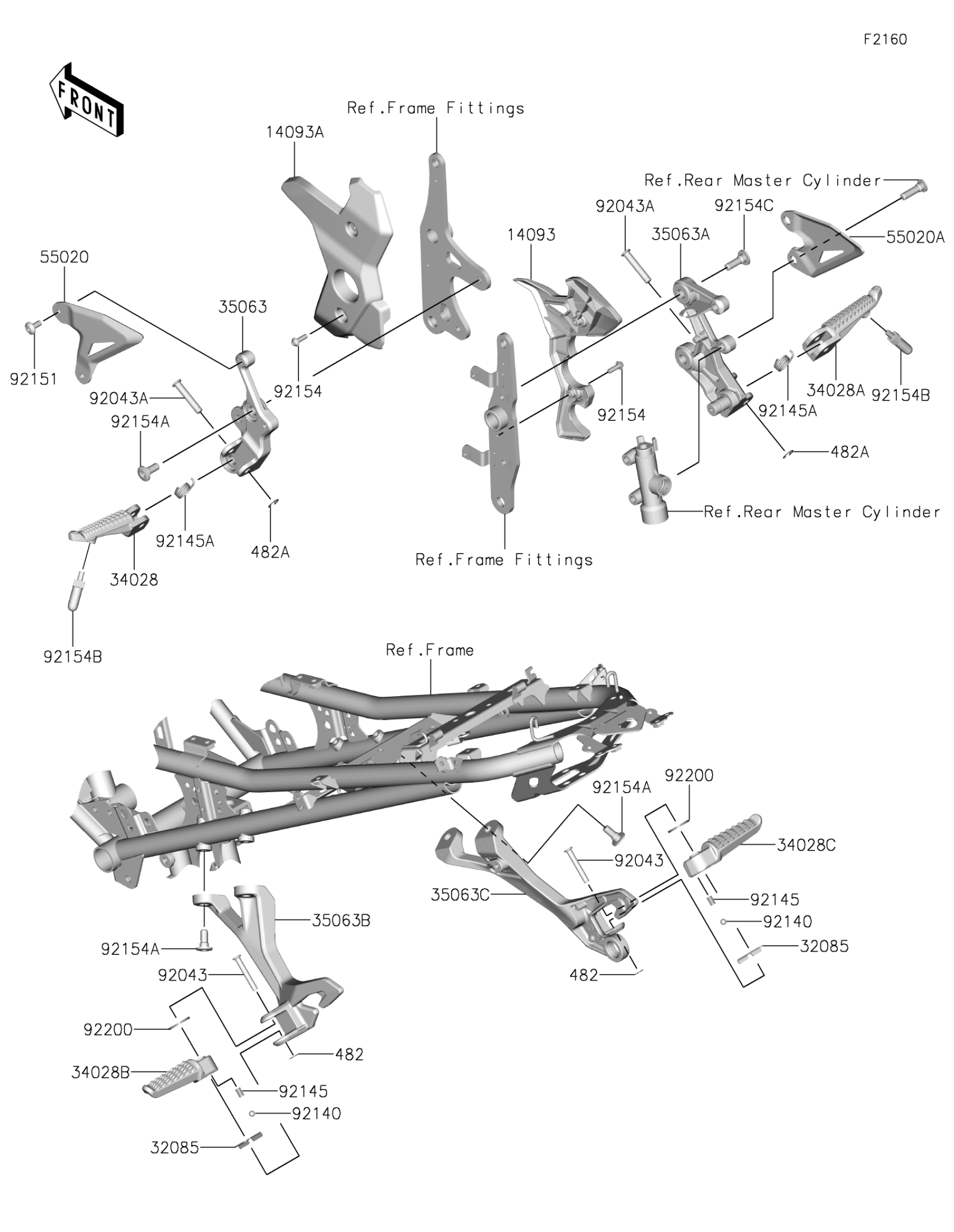

Kawasaki NINJA® e-1 ABS Footrests Diagram

#

Description
Price

14093

COVER,PIVOT,RH

14093-0641

$29.30

14093A

COVER,PIVOT,LH

14093-1491

$31.87

32085

STOPPER,REAR STEP

32085-0047

$5.57

34028

STEP,FR,LH

34028-0356

$61.29

34028A

STEP,FR,RH

34028-0357

$61.29

34028B

STEP,RR,LH

34028-0366

$70.40

34028C

STEP,RR,RH

34028-0367

$70.40

35063

STAY,FR STEP,LH

35063-1407

$86.39

35063A

STAY,FR STEP,RH

35063-1408

$108.46

35063B

STAY,RR STEP,LH

35063-1409

$116.26

35063C

STAY,RR STEP,RH

35063-1410

$130.51

55020

GUARD,HEEL,LH

55020-2195

$44.13

55020A

GUARD,HEEL,RH

55020-2196

$44.13

92043

PIN,6X40

92043-0200

$3.02

92043A

PIN,8X40.5

92043-0877

$4.96

92140

BALL,6.35MM

92140-0008

Unavailable

92145

SPRING

92145-1319

$1.81

92145A

SPRING

92145-2240

$1.34

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,8X20

92154-0936

$4.10

92154B

BOLT,BANK SENSOR

92154-2799

$7.93

92154C

BOLT,SOCKET,8X26

92154-3747

$3.21

92200

WASHER,16X26X2.3

92200-0043

$7.65

482

CIRCLIP-TYPE-E

482EA5000

$1.34

482A

CIRCLIP-TYPE-E

482EA7000

$3.92
