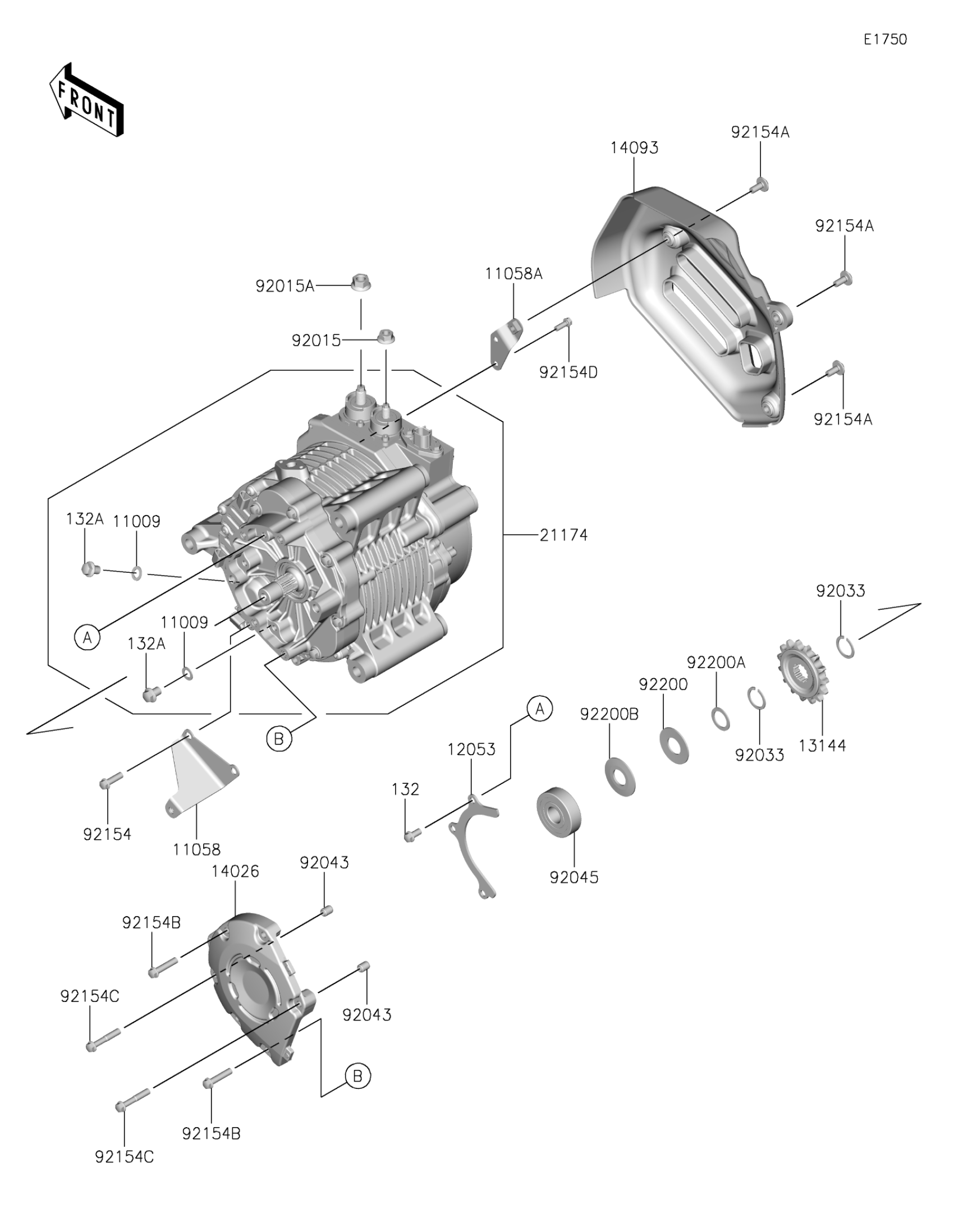

Kawasaki NINJA® e-1 ABS Electric Motor Diagram

Description

Price

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

11058

BRACKET

11058-0756

$6.75

11058A

BRACKET,MOTOR RH

11058-0779

$3.67

12053

GUIDE-CHAIN

12053-0334

$6.33

13144

SPROCKET-OUTPUT,15T

13144-0583

$50.69

14026

COVER-CHAIN

14026-0160

$72.98

14093

COVER,MOTOR RH

14093-1485

$48.65

21174

MOTOR-ELECTRIC

21174-0029

$3,306.07

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,10MM

92015-1021

$4.23

92033

RING-SNAP,18MM

92033-029

$9.82

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92045

BEARING-BALL,17X47X14

92045-0996

$21.74

92154

BOLT,FLANGED,6X20

92154-2130

$1.17

92154A

BOLT,SOCKET,6X14

92154-2735

$1.69

92154B

BOLT-FLANGED,6X28

92154-7115

$1.98

92154C

BOLT-FLANGED,6X35

92154-7173

$2.21

92154D

BOLT-FLANGED,5X14

92154-7197

$0.84

92200

WASHER,DRIVEN GEAR CENTER

92200-2615

$4.84

92200A

WASHER,DRIVEN GEAR UNDER

92200-2616

$2.45

92200B

WASHER,DRIVEN GEAR TOP

92200-2617

$8.12

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,8X10

132BB0810

$2.46
