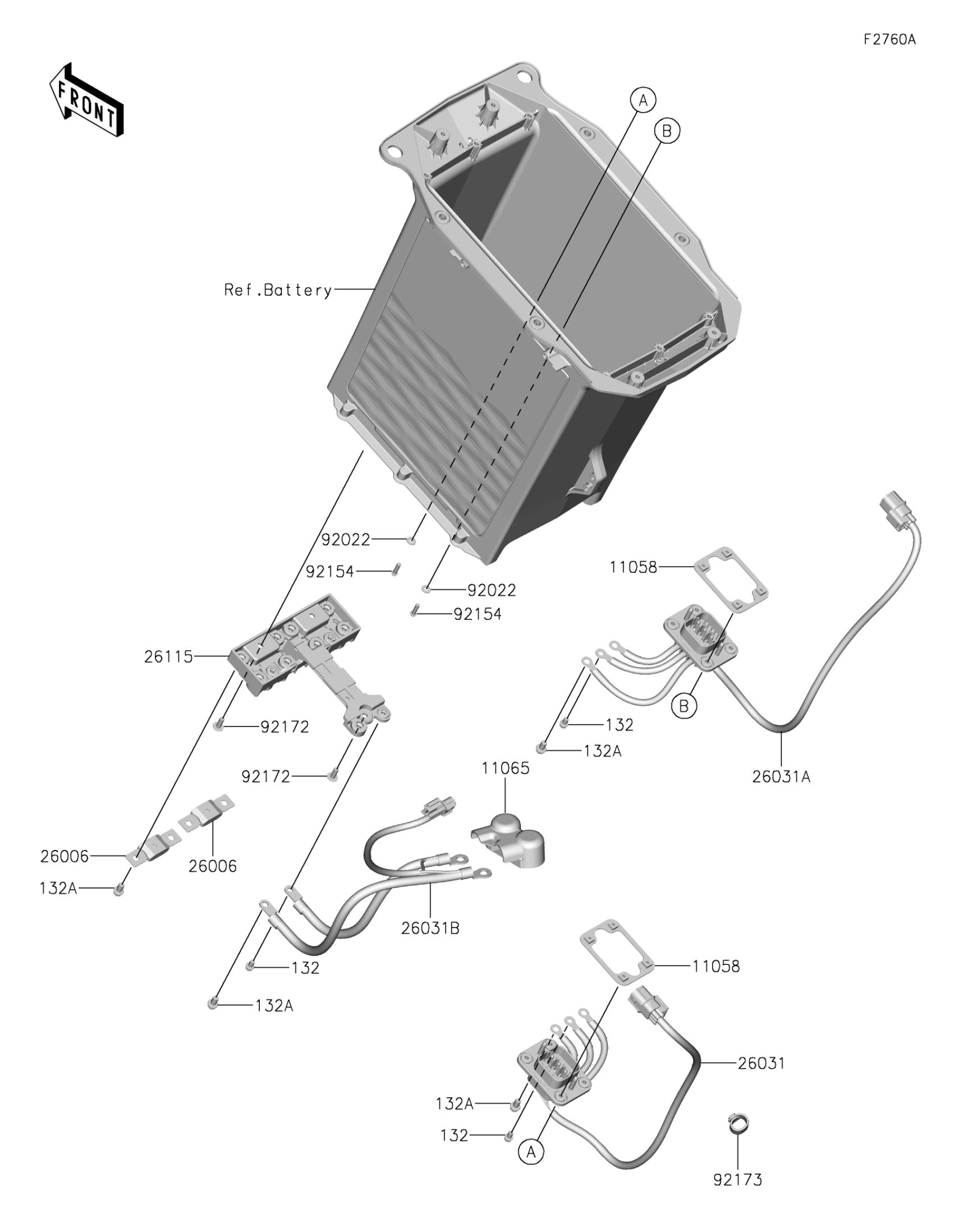

Kawasaki NINJA® e-1 ABS Chassis Electrical Equipment-2 Diagram

Description

Price

11058

BRACKET

11058-0770

$8.66

11065

CAP,MOTOR

11065-1447

$9.45

26006

FUSE,MEGA 200A

26006-0057

$24.17

26031

HARNESS,48V BATTERY,LH

26031-4005

$627.80

26031A

HARNESS,48V BATTERY,RH

26031-4006

$614.60

26031B

HARNESS,48V BATTERY

26031-4054

$264.33

26115

BUS-BAR

26115-0001

$122.31

92022

WASHER

92022-563

$1.13

92154

BOLT,SOCKET,4X16

92154-7112

$1.30

92172

SCREW,TAPPING,5X14

92172-0265

$1.34

92173

CLAMP

92173-2198

$1.48

132

BOLT-FLANGED-SMALL,5X8

132BA0508

$1.71

132A

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71
