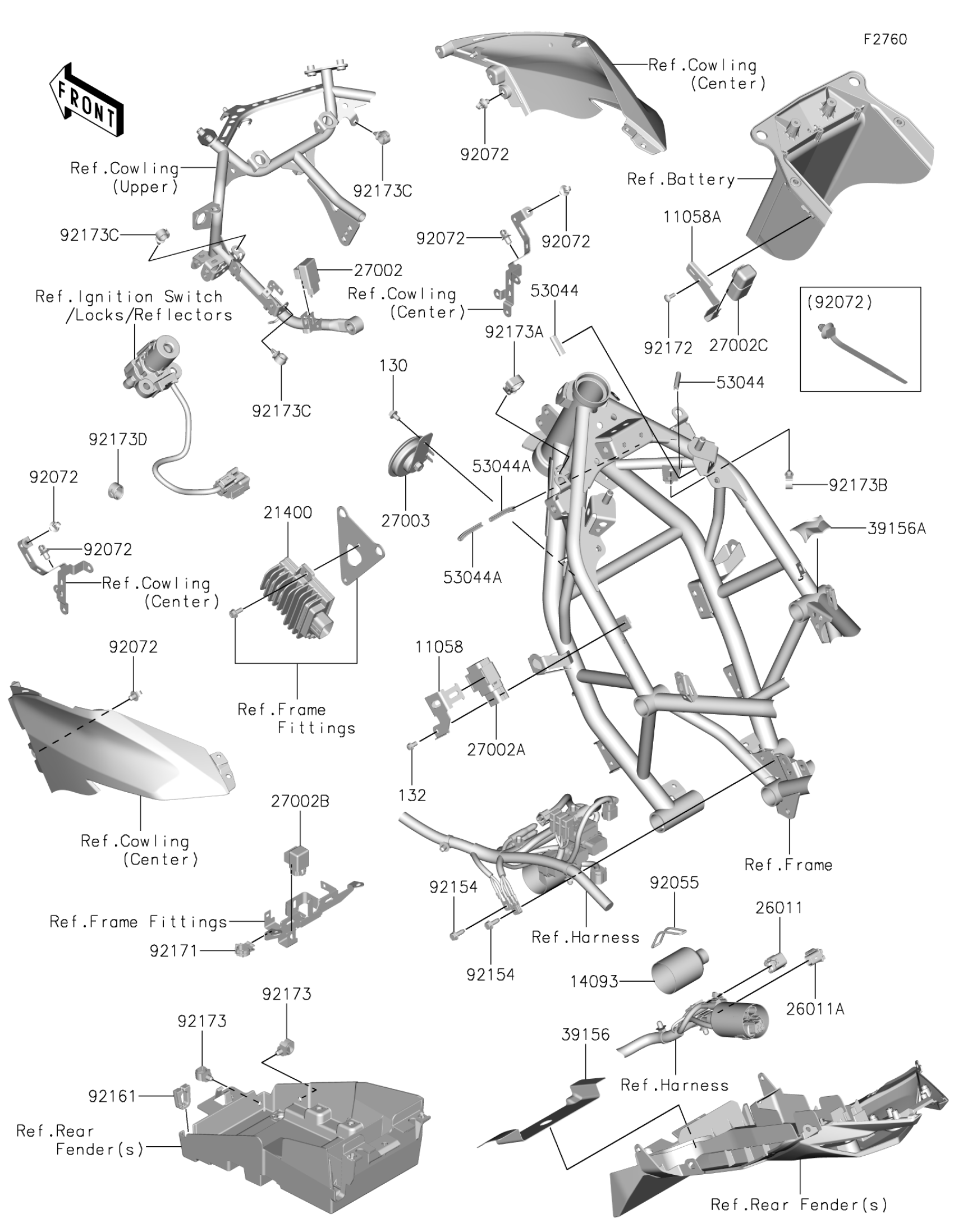

Kawasaki NINJA® e-1 ABS Chassis Electrical Equipment-1 Diagram

Description

Price

11058

BRACKET,RELAY

11058-0772

$6.18

11058A

BRACKET,RELAY

11058-0967

$8.43

14093

COVER,HARNESS

14093-0720

$4.55

21400

CONVERTER-ELECTRONIC

21400-0001

$347.60

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26011A

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$37.01

27002

RELAY-ASSY,SIGNAL LAMP

27002-0029

$83.36

27002A

RELAY-ASSY

27002-0060

$91.89

27002B

RELAY-ASSY

27002-1062

$45.39

27002C

RELAY-ASSY

27002-1088

$42.06

27003

HORN

27003-0111

$68.20

39156

PAD,60X250X1

39156-2219

$10.58

39156A

PAD,50X50X2

39156-2235

$1.81

53044

TRIM,9X6.5X30

53044-0632

$4.45

53044A

TRIM,45MM

53044-0644

$5.59

92055

RING-O,50MM

92055-0954

$3.92

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92154

BOLT,FLANGED,6X18

92154-4008

$1.37

92161

DAMPER,RR FENDER

92161-1984

$0.90

92171

CLAMP,EDGE CLIP

92171-1722

$8.05

92172

SCREW,TAPPING,5X14

92172-0265

$1.34

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92173B

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173C

CLAMP

92173-1951

$1.42

92173D

CLAMP

92173-2199

$1.48

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71
