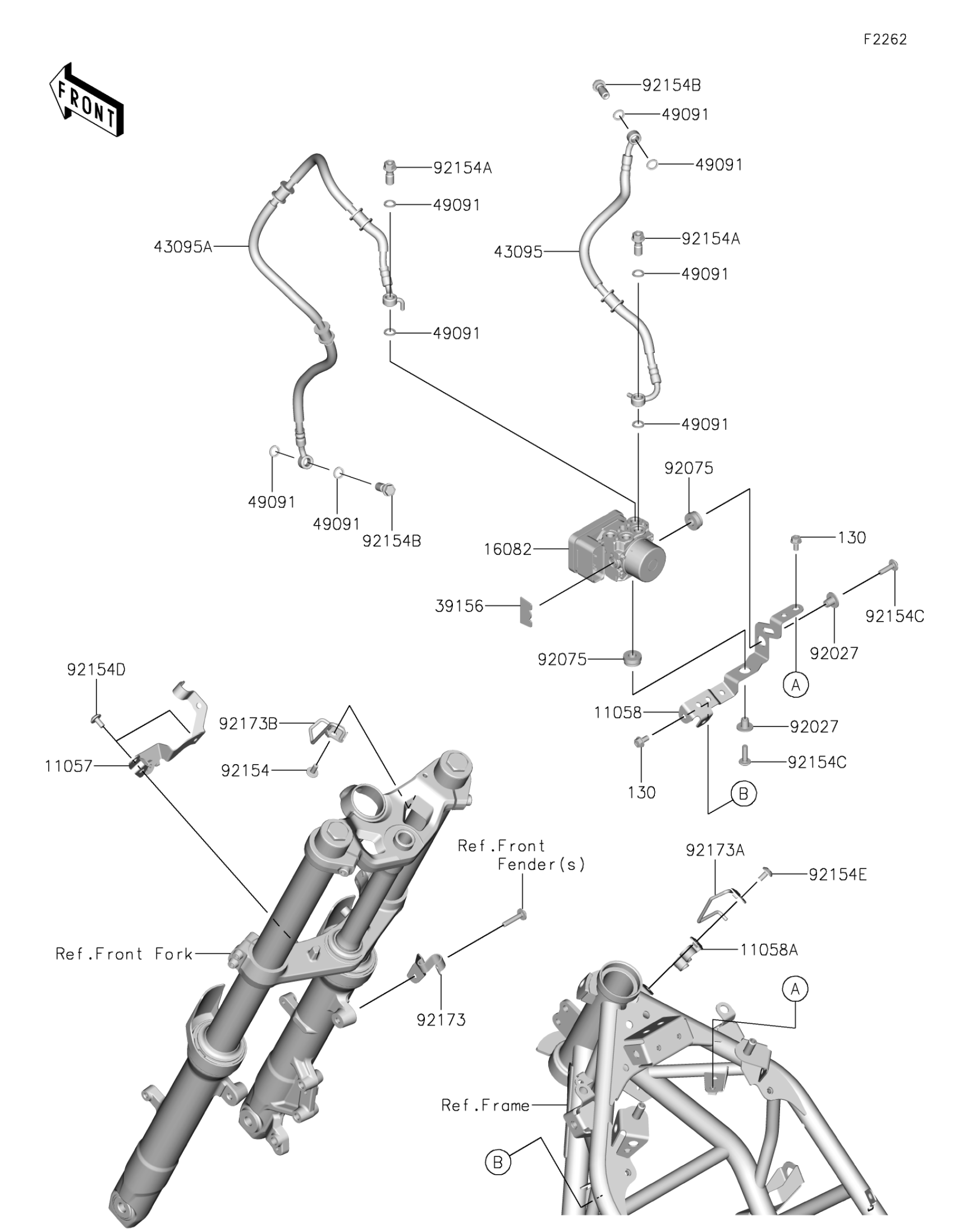

Kawasaki NINJA® e-1 ABS Brake Piping Diagram

Description

Price

11057

BRACKET,HORN

11057-7535

$8.36

11058

BRACKET

11058-0778

$15.93

11058A

BRACKET

11058-0860

$7.56

16082

PUMP-ASSY-OIL,ABS,WET TYPE

16082-0903

$1,183.89

39156

PAD

39156-2885

$0.87

43095

HOSE-BRAKE,HU-FR M/CYLINDER

43095-1851

$97.94

43095A

HOSE-BRAKE,HU-FR CALIPER

43095-1914

$141.08

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92075

DAMPER

92075-277

$2.84

92154

BOLT,SOCKET,6X14

92154-0907

$1.97

92154A

BOLT,BANJO,10X22

92154-1138

$7.40

92154B

BOLT,BANJO,10X23

92154-1712

$3.94

92154C

BOLT,SOCKET,6X22

92154-2302

$1.17

92154D

BOLT,SOCKET,6X12

92154-2355

$1.94

92154E

BOLT,SOCKET,6X12

92154-4310

$1.53

92173

CLAMP,HOSE&SENSOR

92173-1774

$3.21

92173A

CLAMP

92173-2726

$5.29

92173B

CLAMP

92173-2774

$12.60

130

BOLT-FLANGED,6X12

130BB0612

$2.34
