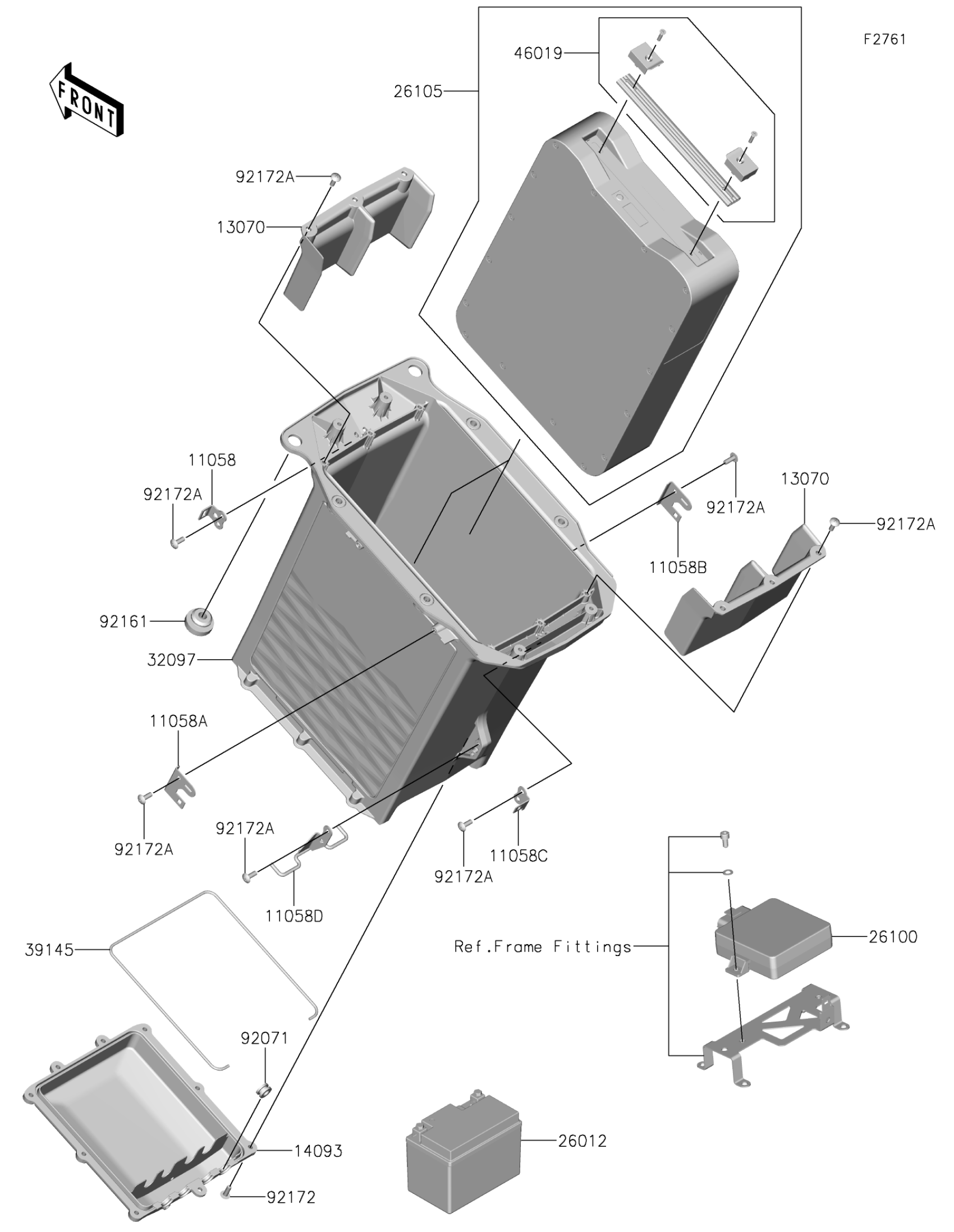

Kawasaki NINJA® e-1 ABS Battery Diagram

Description

Price

11058

BRACKET

11058-0771

$2.32

11058A

BRACKET

11058-0838

$4.85

11058B

BRACKET

11058-0839

$4.85

11058C

BRACKET

11058-0910

$2.13

11058D

BRACKET

11058-0963

$5.73

13070

GUIDE,BATTERY CASE

13070-1437

$28.79

14093

COVER,BATTERY CASE

14093-1483

$42.86

26012

BATTERY,FTZ3,12V 2.5AH

26012-1457

$132.33

26100

MANAGEMENT-SYSTEM-BATTERY

26100-0001

$630.90

26105

PACK-ASSY-BATTERY

26105-0009

$2,928.40

32097

CASE-BATTERY

32097-0570

$460.10

39145

TRIM-SEAL,BATTERY CASE

39145-0764

$3.04

46019

GRIP-ASSY,BATTERY

46019-0131

$40.97

92071

GROMMET

92071-1128

$5.43

92161

DAMPER,10X32X17

92161-1980

$3.74

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92172A

SCREW,TAPPING,5X14

92172-0265

$1.34
