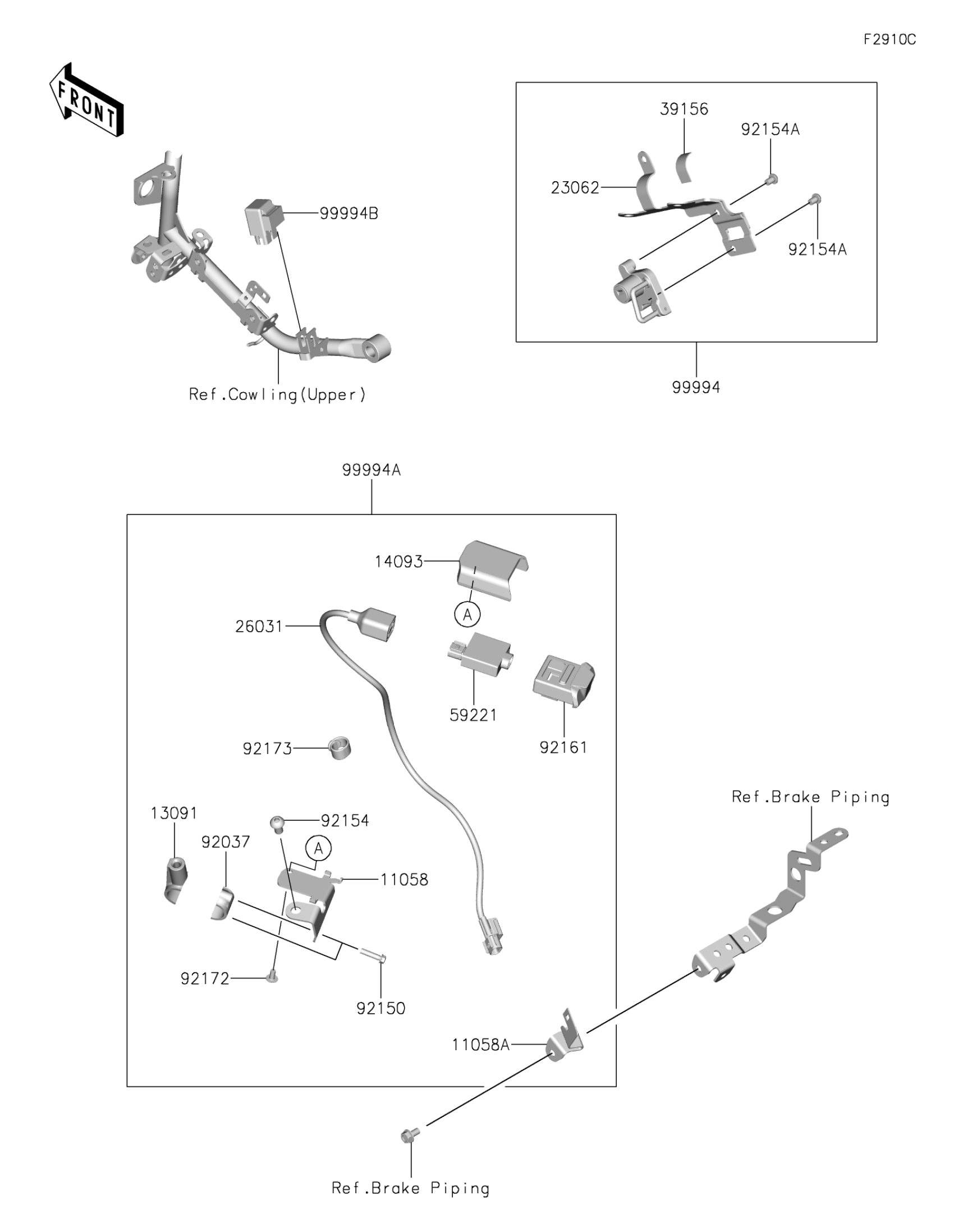

Kawasaki NINJA® e-1 ABS Accessory(Helmet Lock and USB) Diagram

Description

Price

11058

BRACKET

11058-0802

$23.25

11058A

BRACKET

11058-1339

$8.96

13091

HOLDER,MIRROR

13091-1717

$29.46

14093

COVER,USB

14093-1458

$5.46

23062

BRACKET-COMP

23062-1435

$19.33

26031

HARNESS

26031-4037

$34.23

39156

PAD

39156-2891

$4.31

59221

CONNECTOR-CORD,USB TYPE-C

59221-0022

$85.75

92037

CLAMP,LEVER HOLDER

92037-1621

$27.29

92150

BOLT,5X20

92150-1389

$4.69

92154

BOLT,SOCKET,8X14

92154-2651

$2.46

92154A

BOLT,ONE SIDE,6X8

92154-2948

$3.57

92161

DAMPER

92161-2497

$9.93

92172

SCREW,5X10

92172-1194

$1.34

92173

CLAMP

92173-2198

$1.48

99994

HELMET LOCK

99994-1957

$152.86

99994A

USB OUTLET TYPE-C

99994-1958

$63.74

99994B

ACC-RELAY

99994-1985

$15.59
