1986 Kawasaki Ninja® Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 1986 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

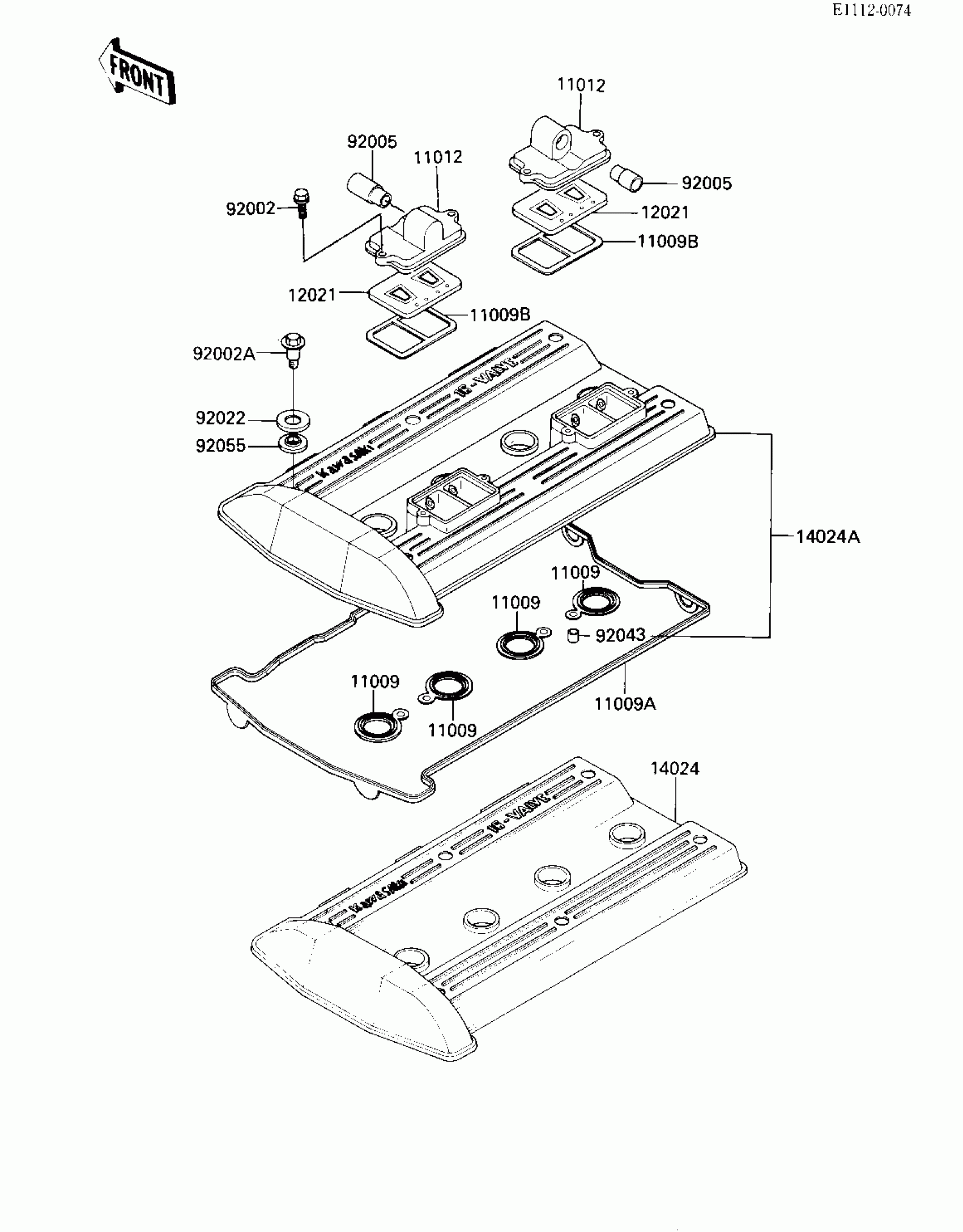

1986 Kawasaki Ninja® Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET

11009-1377

1

$6.01

In stock

11009A

1

$67.28

In stock

11009B

GASKET,REED VALVE

11009-1905

1
Out of stock

11012

CAP,REED VALVE

11012-1481

1

$46.36

In stock

12021

VALVE-ASSY-REED

12021-1053

1

$81.60

In stock

14024

COVER,CYLINDER HEAD

14024-1082

1
Out of stock

14024A

COVER,CYLINDER HEAD

14024-1138

1
Out of stock

92002

BOLT,6X22

92002-1068

1

$3.58

In stock

92002A

BOLT,FLANGED,6X23.5

92150-1447

1

$3.65

In stock

92005

FITTING,REED VALVE

92005-1006

1
Out of stock

92022

1

$4.44

In stock

92043

PIN,DOWEL,8X10

92043-1302

1

$0.97

In stock

92055

1

$6.06

In stock
