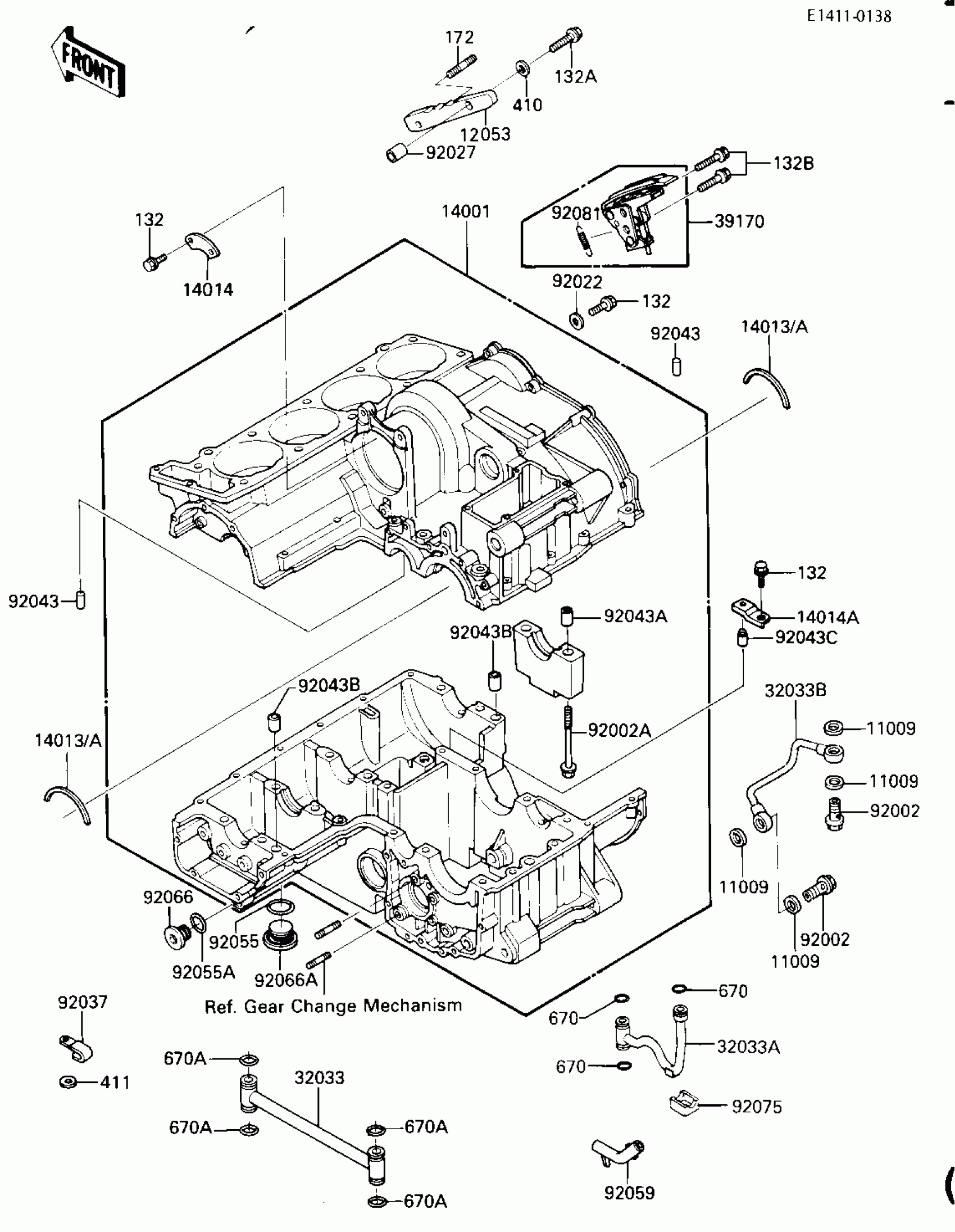

Kawasaki Ninja® CRANKCASE (E/NO. 030894-) Diagram
#
Description
Price
11009
GASKET,12.5X18X1.5
11009-1376
$1.85
12053
GUIDE-CHAIN
12053-1138
Unavailable
14001
SET-CRANKCASE
14001-5190
Unavailable
14013
RING-POSITION,T=1.98
14013-1005
$4.96
14013A
RING-POSITION
14013-1006
Unavailable
14014
PLATE-POSITION
14014-1056
$14.10
14014A
PLATE-POSITION,BALANCER PIN
14014-1067
$16.72
32033
PIPE,MAIN GALLARY
32033-1201
$51.24
32033A
PIPE
32033-1202
$38.38
32033B
PIPE
32033-1961
$56.16
39170
TENSIONER-COMP
39170-1053
$218.08
92002
BOLT,BANJO,12X23
92001-1871
$17.13
92002A
BOLT,8X80
92002-1649
$6.69
92022
WASHER,6X19.5X2
92022-1517
$2.33
92027
COLLAR,6.2X8.1X15
92027-1079
$3.96
92037
CLAMP,L=45
92037-1539
$5.00
92043
PIN,DOWEL,6X16
92042-016
$5.00
92043A
PIN,DOWEL,12X14
92042-031
$6.57
92043B
PIN,DOWEL,10X14
92043-1037
$0.74
92043C
PIN,BALANCER
92043-1281
$9.59
92055
RING-O,25.7X2.4
92055-1136
$5.00
92055A
RING-O,20X2
92055-1146
$8.58
92059
TUBE
92059-1508
Unavailable
92066
PLUG,MAIN GALLERY,18X9,BLACK
92066-1096
$11.50
92066A
PLUG,25X8
92066-1161
$10.56
92075
DAMPER,PIPE
92075-1785
$5.05
92081
SPRING
92081-1668
Unavailable
132
BOLT-FLANGED-SMALL
132G0612
$1.17
132A
BOLT-FLANGED-SMALL
132G0625
Unavailable
132B
BOLT-FLANGED-SMALL,6X30
132G0630
$2.48
172
BOLT-STUD,6X16
172G0616
$1.28
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
411
WASHER PLAIN
411F0600
$1.18
670
O RING,9MM
670D1509
$4.69
670A
O RING,16MM
670D2016
$1.70
