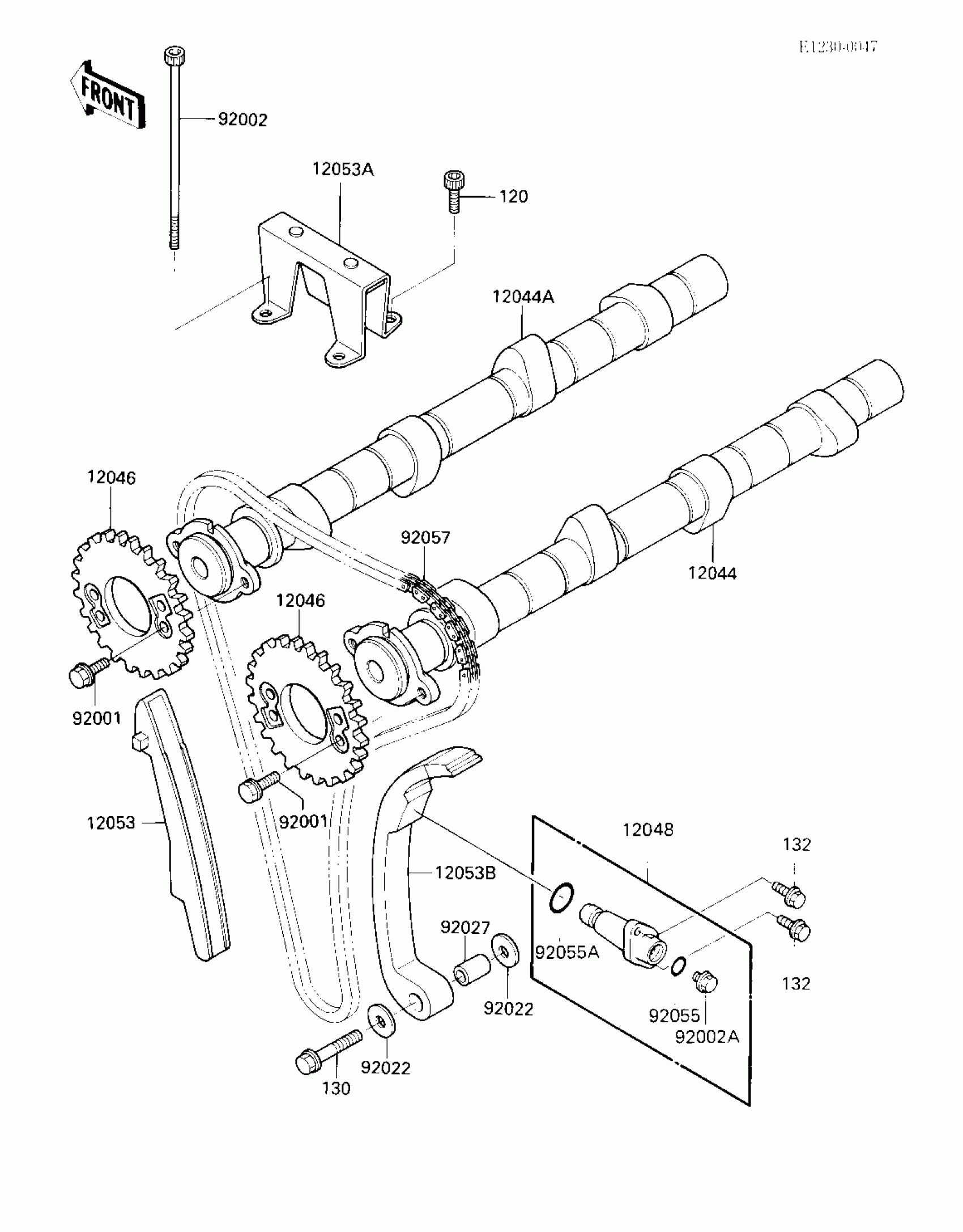

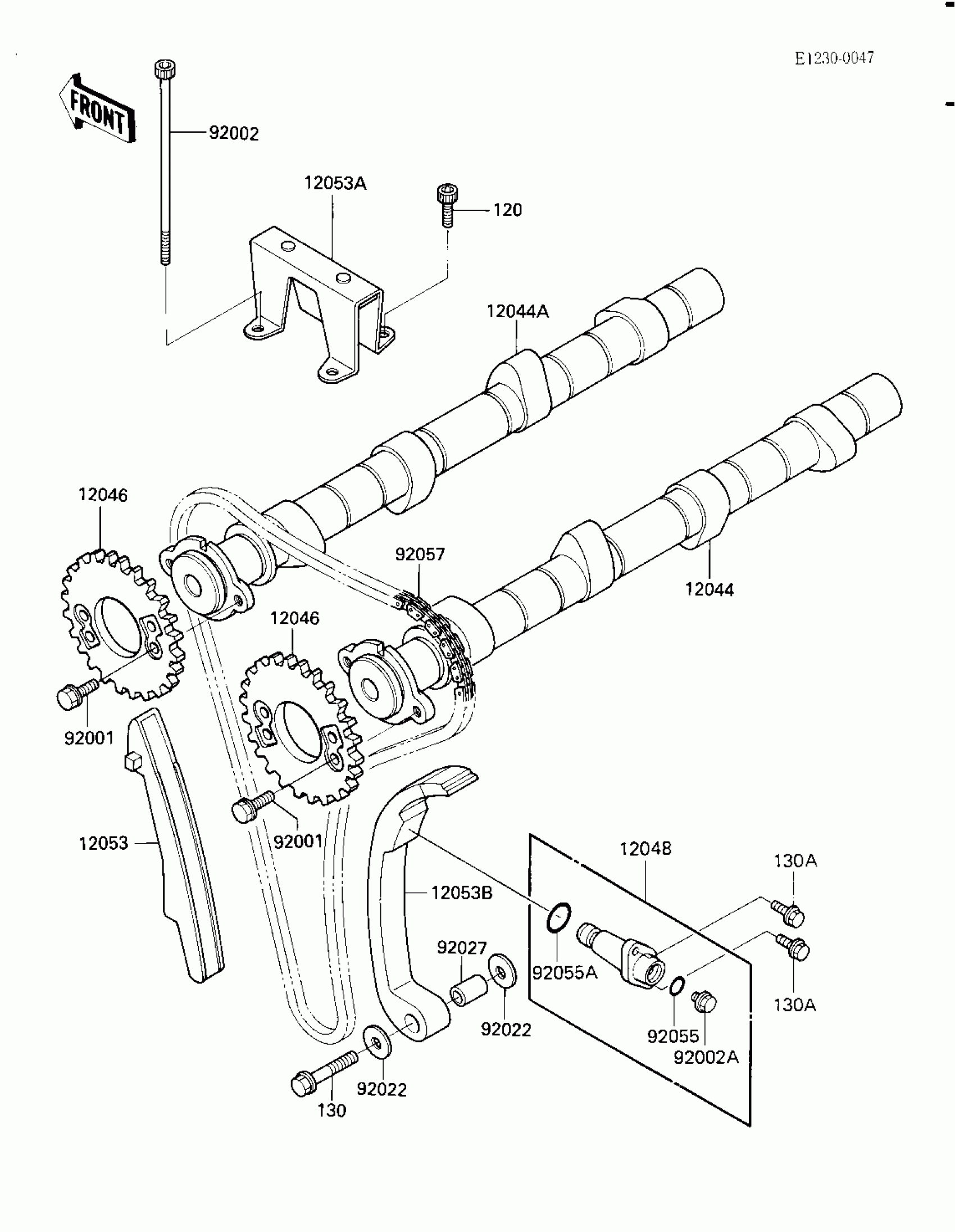

Kawasaki Ninja® CAMSHAFTS/CHAIN/TENSIONER Diagram

Description

Price

12044

CAMSHAFT-VALVE,INTAKE

12044-1112

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUS

12044-1113

Unavailable

12046

SPROCKET,CAMSHAFT,34T

12046-1082

$76.42

12048

TENSIONER-ASSY,CAM CH

12048-1071

$163.98

12053

GUIDE-CHAIN,FR

12053-1114

$45.48

12053A

GUIDE-CHAIN,UPP

12053-1115

$40.34

12053B

GUIDE-CHAIN,RR

12053-1116

Unavailable

92001

BOLT,FLANGED,6X11

92003-208

$4.31

92002

BOLT,6X118

92001-1904

$9.89

92002A

BOLT,TENSIONER

92002-1302

$7.69

92022

WASHER,8.2X19X2

92022-1533

$5.52

92027

COLLAR,8.2X10.5X15.6

92027-1763

$6.63

92055

O RING,10MM

670D2010

$1.94

92055A

O RING,21MM

670D2021

$6.85

92057

CHAIN,CAMSHAFT

92057-1160

$129.67

120

BOLT-SOCKET,6X14

120P0614

$3.82

130

BOLT-FLANGED,8X35

130G0835

$1.42

132

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62
