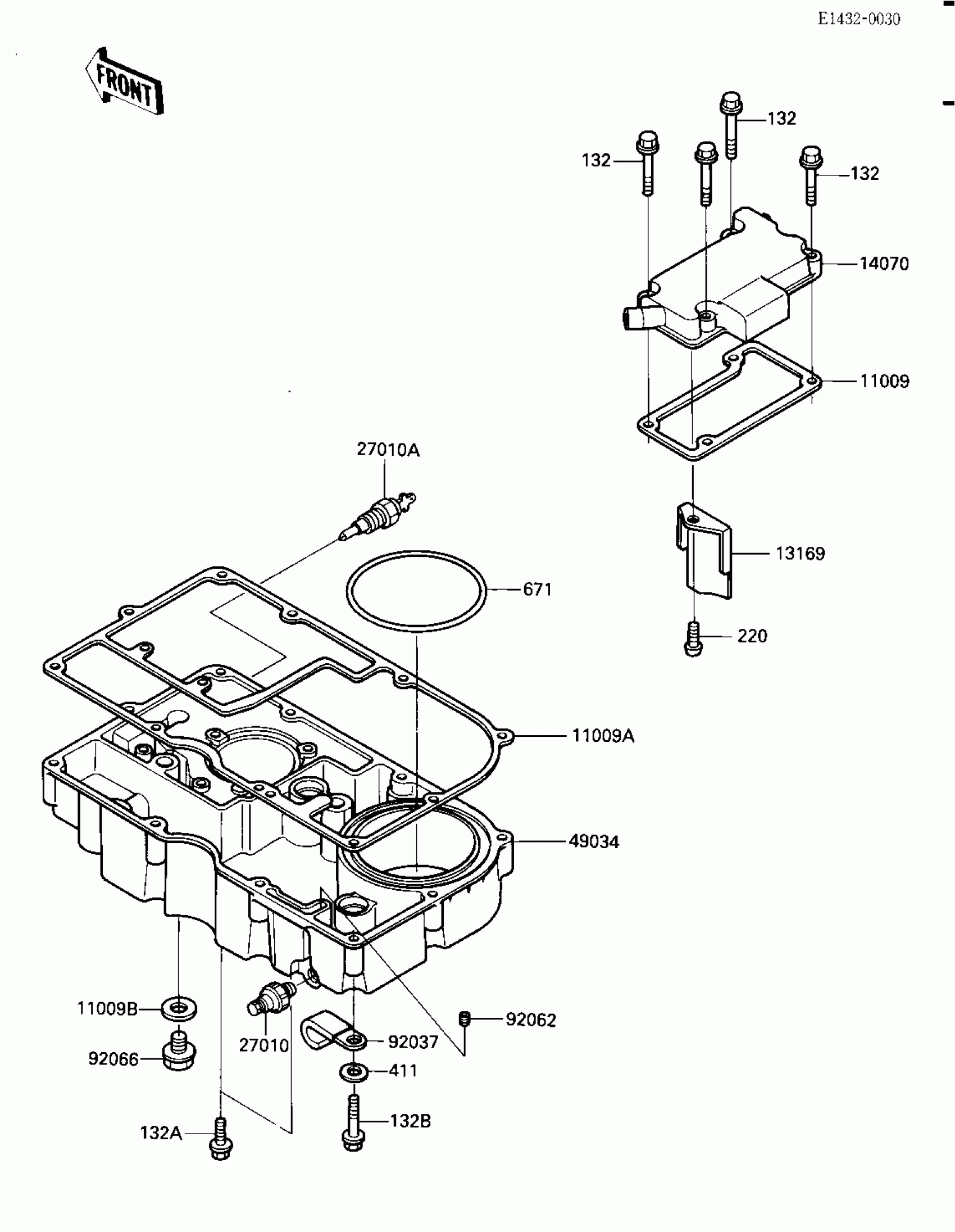

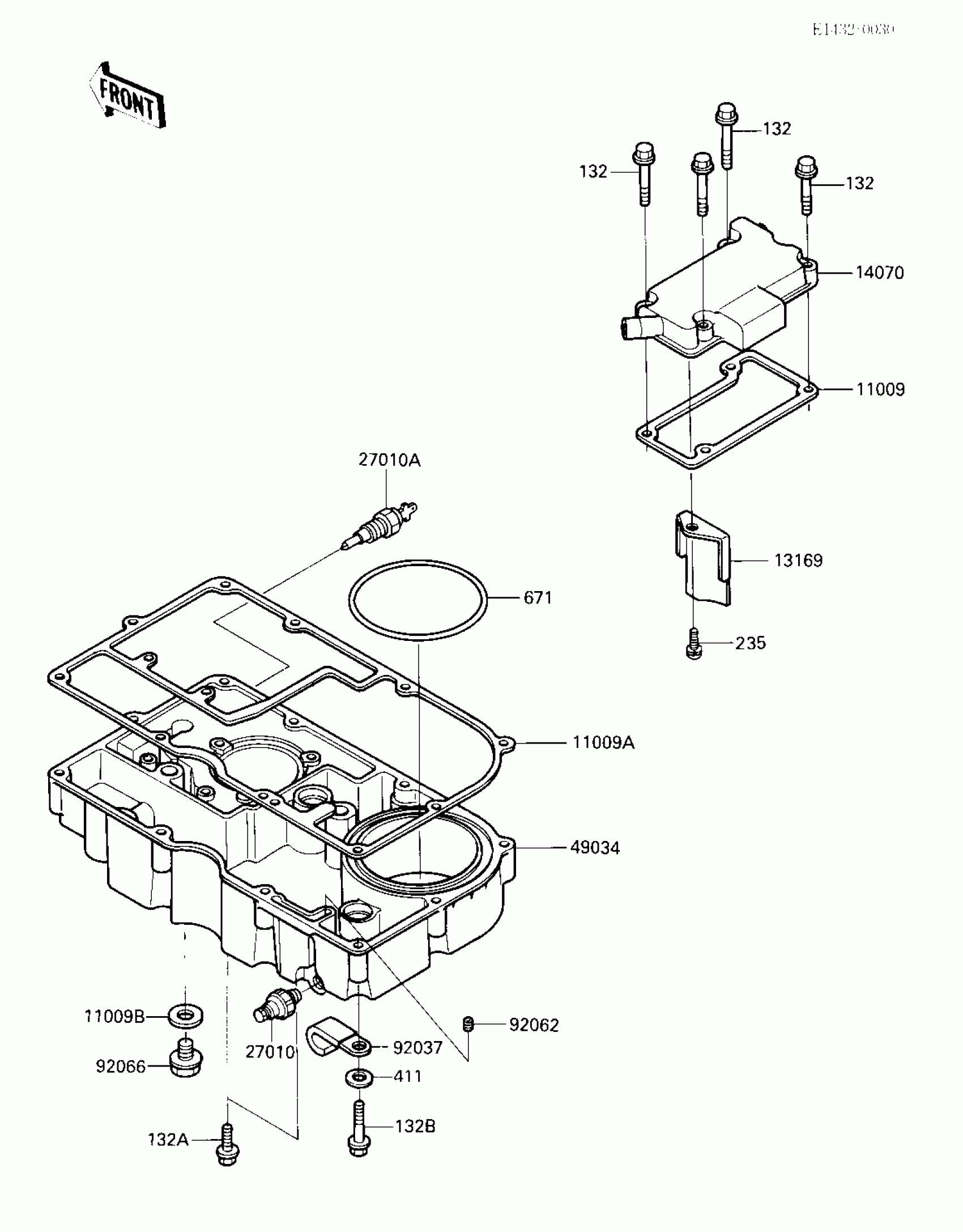

Kawasaki Ninja® BREATHER COVER/OIL PAN Diagram

Description

Price

11009

GASKET,BREATHER BODY

11009-1861

Unavailable

11009A

GASKET,OIL PAN

11009-1981

$25.51

11009B

GASKET,12X22X2

92065-097

$0.74

13169

PLATE,BREATHER

13169-1832

Unavailable

14070

BODY-BREATHER

14070-1061

$45.05

27010

SWITCH,OIL PRESSURE

27010-1155

$40.13

27010A

SWITCH

27010-1173

$122.92

49034

PAN-OIL

49034-1059

Unavailable

92037

CLAMP,L=45

92037-1539

$5.00

92062

NOZZLE,BLACK

92062-011

$8.58

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

132

BOLT-FLANGED-SMALL,6X25

132E0625

$1.13

132A

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

132B

BOLT-FLANGED-SMALL,6X40

132J0640

$4.44

235

SCREW-PAN-WP-CROS,6X10

235B0610

$3.51

411

WASHER PLAIN

411F0600

$1.18

671

O RING,90MM

671B2590

$9.91
