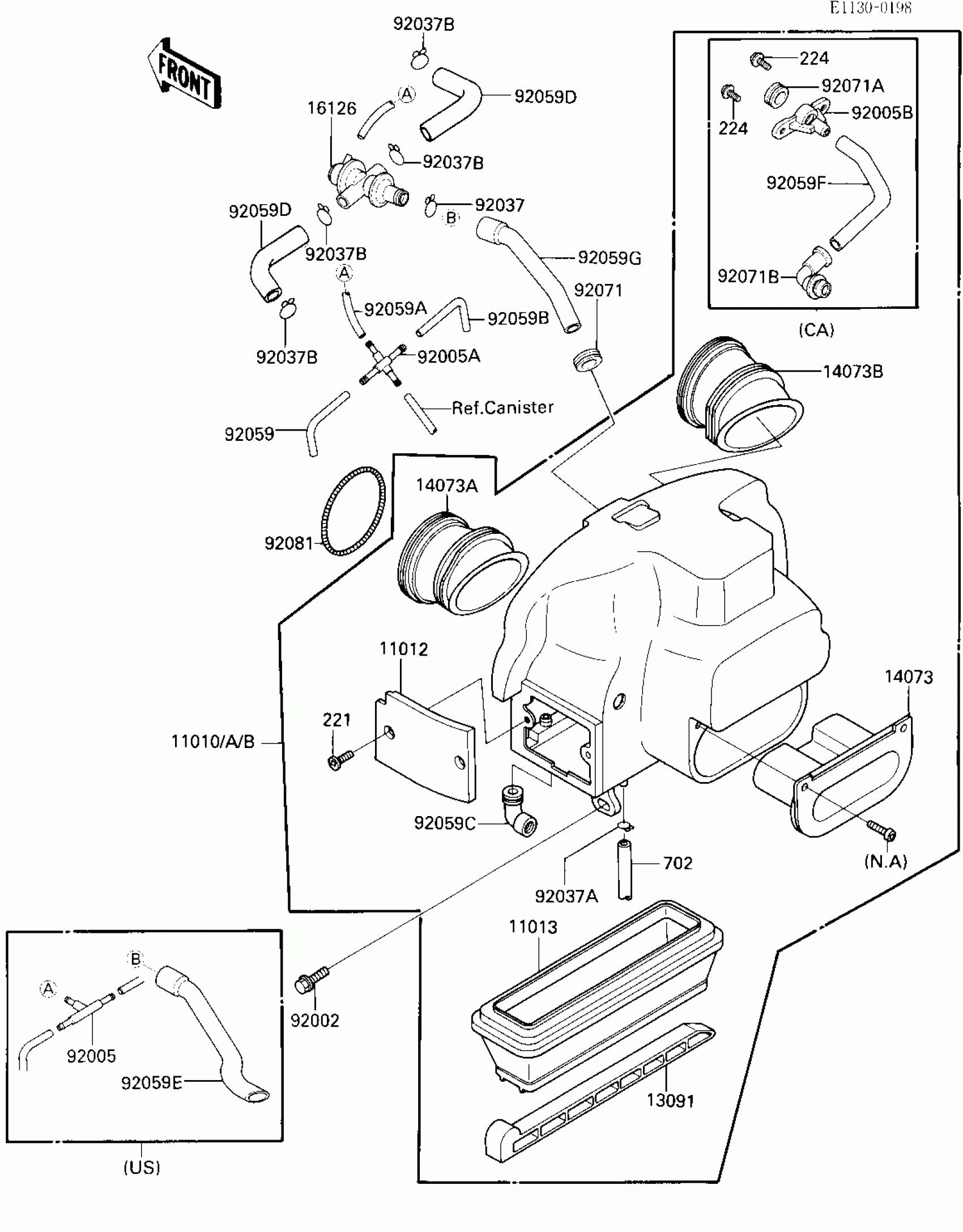

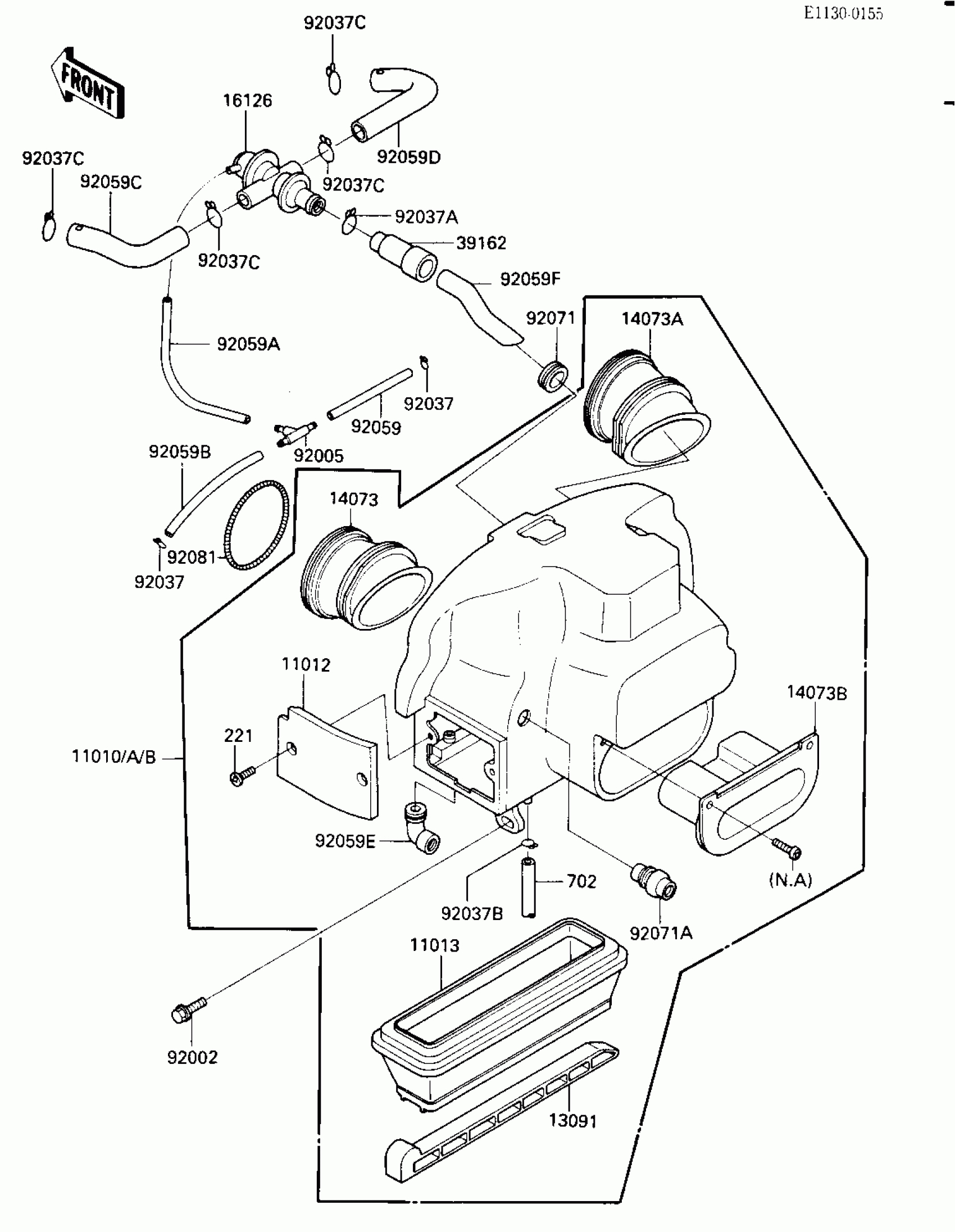

Kawasaki Ninja® AIR CLEANER Diagram
#
Description
Price
11010
FILTER-ASSY-AIR
11010-1212
Unavailable
11010A
FILTER-ASSY-AIR (Canada)
11010-1215
Unavailable
11010B
FILTER-ASSY-AIR
11010-1269
Unavailable
11012
CAP,AIR FILTER
11012-1373
$21.55
11013
ELEMENT-AIR FILTER
11013-1112
$51.57
13091
HOLDER,ELEMENT
13091-1277
$35.06
14073
DUCT,AIR INTAKE
14073-1179
$21.55
14073A
DUCT,#1,#3
14073-1273
$30.26
14073B
DUCT,#2,#4
14073-1274
$28.37
16126
VALVE,AIR SWITCH
16126-1144
$200.34
92002
BOLT,6X16
92001-1950
$4.31
92005
FITTING,TUBE,T-TYPE
92005-1017
Unavailable
92005A
FITTING,TUBE,X-TYPE
92005-1051
$11.26
92005B
FITTING
92005-1139
$34.16
92037
CLAMP,TUBE
92037-1076
$7.22
92037A
CLAMP,TUBE
92037-147
$7.34
92037B
CLAMP,TUBE
92037-213
$4.31
92059
TUBE,VACUUM,LONG
92059-1162
$19.09
92059A
TUBE,VACUUM,LONG
92059-1162
$19.09
92059B
TUBE,4X9X80
92059-1365
$13.61
92059C
TUBE,BREATHER
92059-1391
$18.66
92059D
TUBE
92059-1629
$11.80
92059E
TUBE
92059-1630
$31.85
92059F
TUBE
92059-1640
$21.87
92059G
TUBE
92059-1648
$19.16
92071
GROMMET,AIR FILTER
92071-1042
$7.27
92071A
GROMMET,AIR FILTER
92071-1042
$7.27
92071B
GROMMET,AIR FILTER
92071-1133
$18.31
92081
SPRING,COIL,BLACK
92081-1457
$11.40
221
SCREW-CSK-CROS
221C0616
Unavailable
224
SCREW-PAN-WP-CROS
224C0614
$3.84
702
TUBE-RUBBER
702A07480
$13.38
