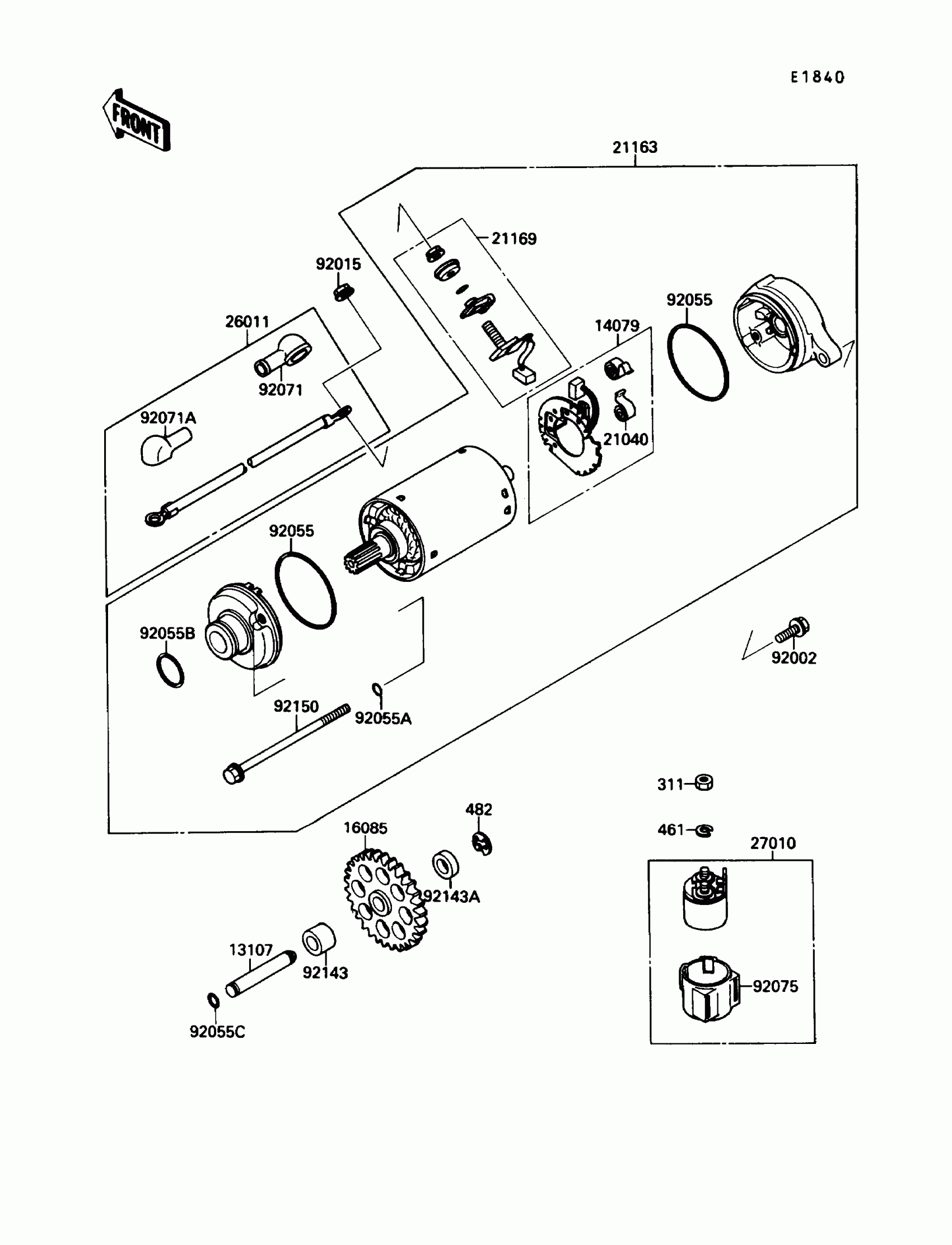

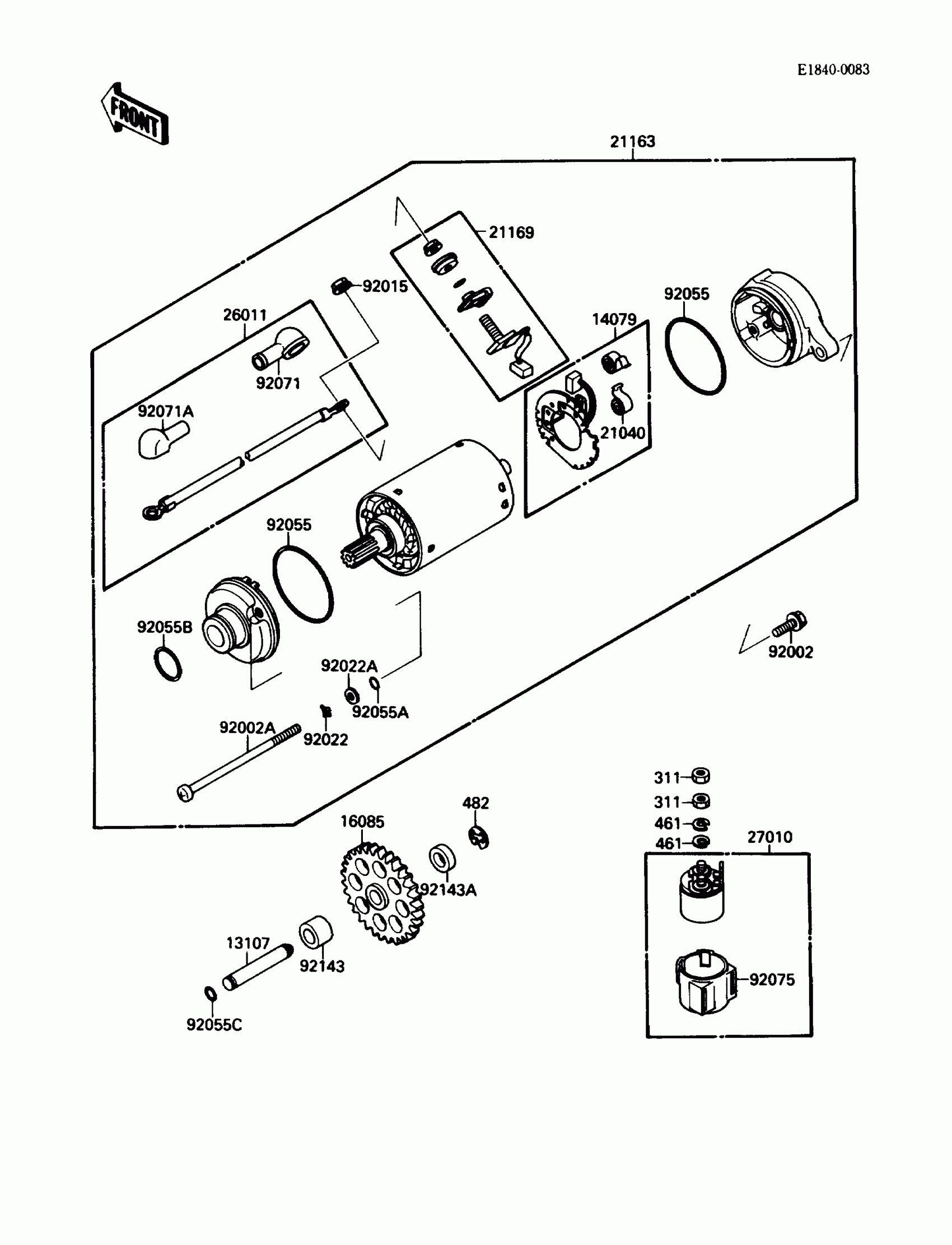

Kawasaki Ninja® 750R Starter Motor Diagram

#

Description
Price

311

NUT 6MM

311B0600

$0.93

461

WASHER SPRING 6MM

461F0600

$0.69

482

CIRCLIP-TYPE-E,9MM

482K9000

$4.39

13107

SHAFT,IDLE GEAR

13107-1187

Unavailable

14079

HOLDER-ASSY,CARBON BRUSH

14079-1056

$45.19

16085

GEAR,IDLE

16085-1104

$135.39

21040

SPRING-BRUSH

21040-1051

$8.13

21163

STARTER-ELECTRIC

21163-1094

$596.26

21169

TERMINAL,STARTER

21169-1058

$59.07

26011

WIRE-LEAD,STARTER MOTOR

26011-1378

$54.09

27010

SWITCH,MAGNETIC

27010-1209

Unavailable

92002

BOLT,6X20

92001-1947

$4.34

92002A

BOLT

92002-1841

$13.12

92015

NUT

92015-1623

$5.00

92022

WASHER

92022-1833

$2.74

92022A

WASHER

92022-1834

$3.61

92055

RING-O,62MM

92055-1260

$10.35

92055A

RING-O,4.5MM

92055-1261

$2.87

92055B

RING-O,24.4X3.1

92055-1262

$12.46

92055C

RING-O,ID=9.5

92055-1355

$3.92

92071

GROMMET,STARTER TERMINAL

92071-1120

$13.08

92071A

GROMMET,TERMINAL

92071-1121

Unavailable

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92143

COLLAR,12.1X20X14.5

92143-1030

$6.69

92143A

COLLAR,12.1X20X6.5

92143-1031

$8.31
