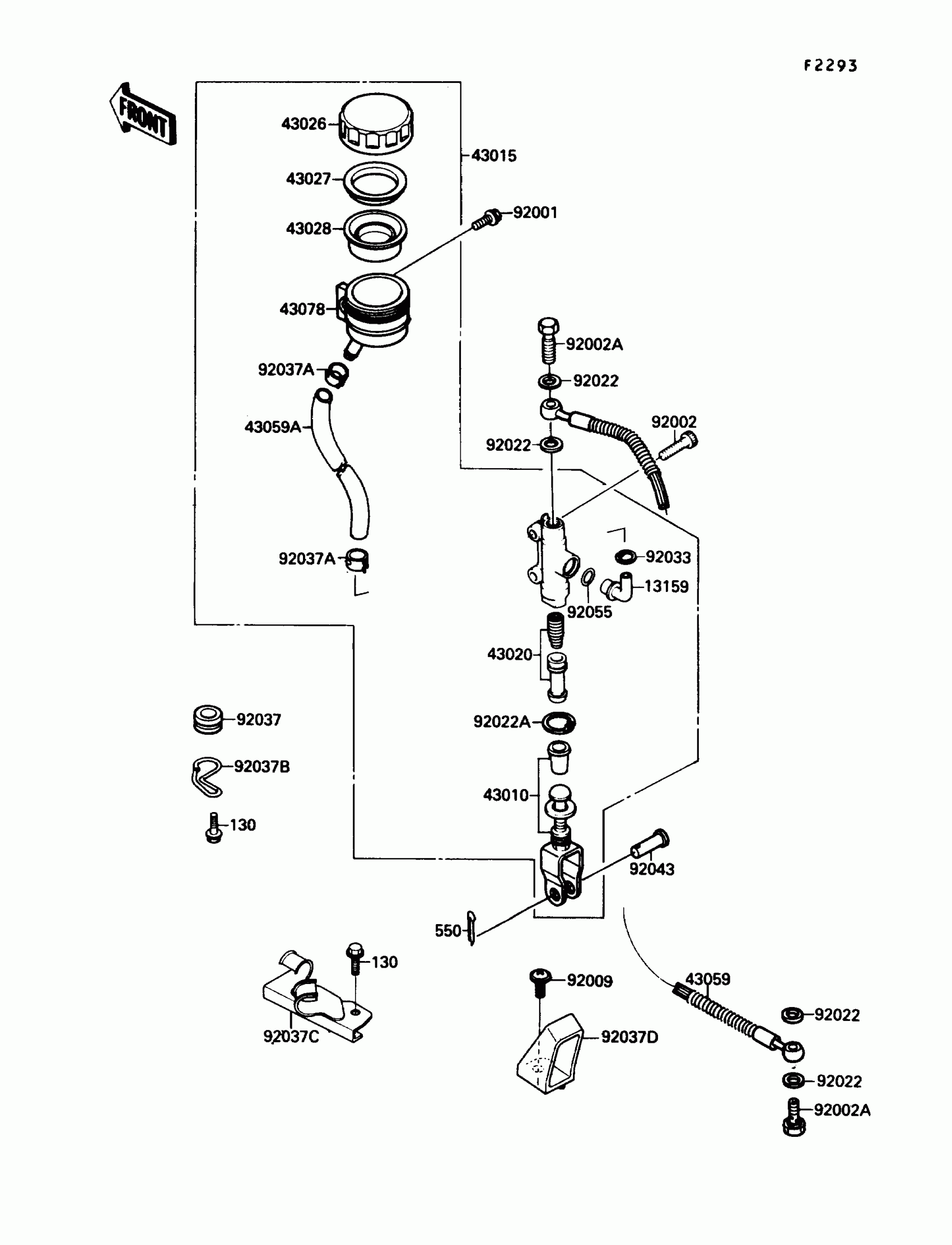

Kawasaki Ninja® 750R Rear Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

$2.33

550

PIN COTTER 2.0X15

550D2015

$1.04

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

43010

ROD-ASSY-BRAKE

43010-1055

$69.04

43015

CYLINDER-ASSY-MASTER,RR

43015-1336

$404.70

43020

PISTON-COMP-BRAKE,RR

43020-1067

$66.40

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43059

HOSE-BRAKE,RR

43059-1367

$107.67

43059A

HOSE-BRAKE,RR MASTER CYLINDER

43059-1384

$20.78

43078

RESERVOIR,RR MASTER CYLINDER

43078-1058

$30.28

92001

BOLT,6X20

92001-1460

$3.92

92002

BOLT,8X30

92002-1485

$3.90

92002A

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,6X14

92009-1288

$3.92

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

GROMMET,HOSE CLAMP

43064-007

$5.52

92037A

CLAMP,BRAKE HOSE

92037-1547

$12.35

92037B

CLAMP,HOSE

92037-1834

Unavailable

92037C

CLAMP,HOSE

92037-1856

Unavailable

92037D

CLAMP,HOSE

92037-1896

$23.23

92043

PIN,8MM

92043-1303

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable
