1988 Kawasaki Ninja® 750R Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 1988 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

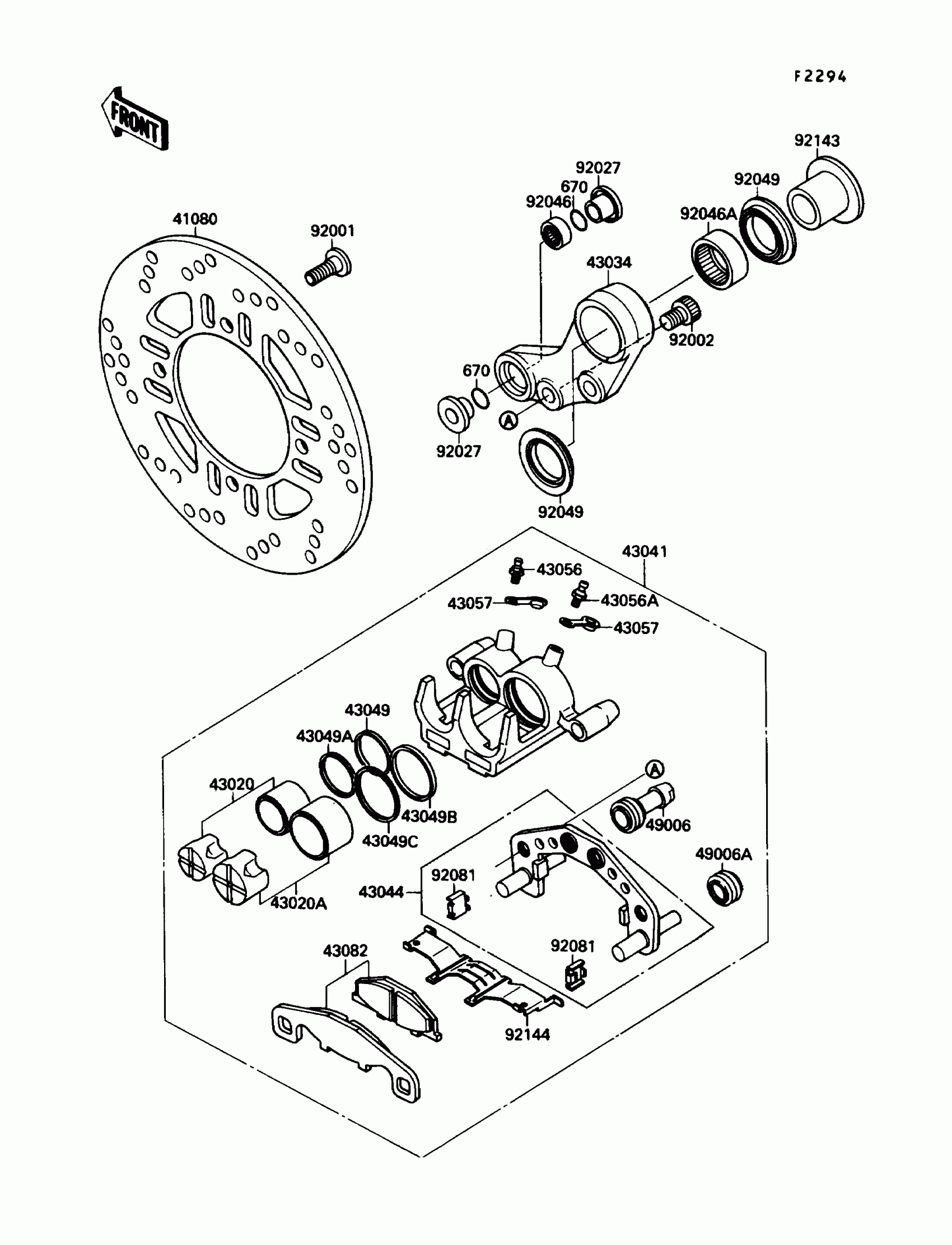

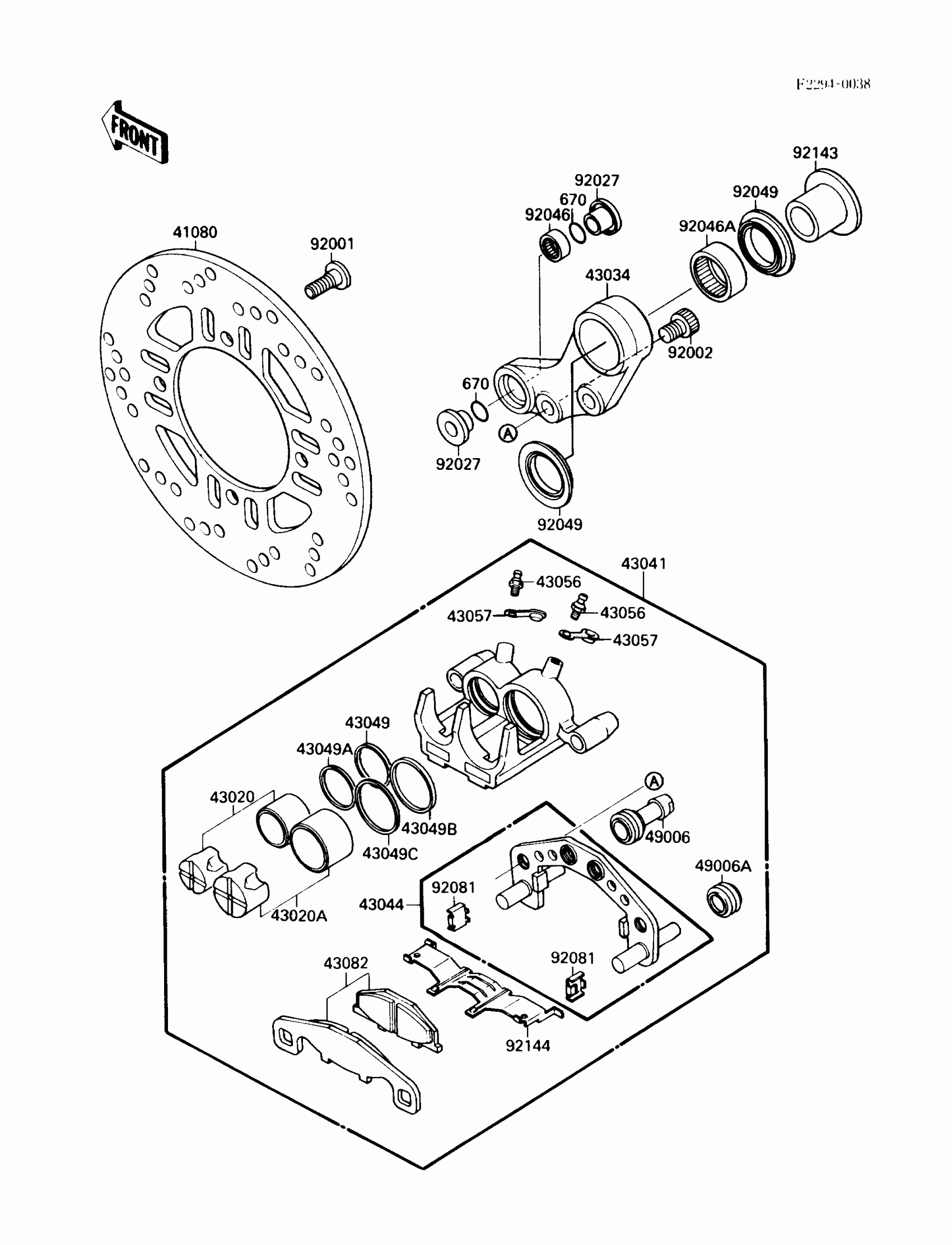

1988 Kawasaki Ninja® 750R Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,11MM

670B2011

1
Out of stock

41080

DISC,RR,SILVER NO.1

41080-1177-CM

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1068

1
Out of stock

43020A

PISTON-COMP-BRAKE

43020-1069

1
Out of stock

43034

HOLDER-BRAKE,REAR CALIPER

43034-1077

1
Out of stock

43041

CALIPER-ASSY,RR

43041-1226

1
Out of stock

43044

HOLDER-COMP-CALIPER

43044-1067

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1054

1
Out of stock

43049A

PACKING,PISTON

43049-1055

1
Out of stock

43049B

PACKING,PISTON SEAL

43049-1056

1
Out of stock

43049C

PACKING,PISTON

43049-1057

1
Out of stock

43056

BREATHER

43056-003

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1069

1
Out of stock

49006

BOOT,CALIPER

49006-1094

1
Out of stock

49006A

BOOT,CALIPER

49006-1095

1
Out of stock

92001

BOLT,DISC PLATE,8X30

92001-1951

1
Out of stock

92002

BOLT,SOCKET,10X17

92002-1713

1
Out of stock

92027

COLLAR,L=11.5

92027-1040

1
Out of stock

92046

BEARING-NEEDLE,HK1216LL

92046-1009

1
Out of stock

92046A

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92081

SPRING,PAD STOPPER

92081-1661

1
Out of stock

92143

COLLAR,L=35

92143-1043

1
Out of stock

92144

SPRING,PAD

92144-1070

1
Out of stock
