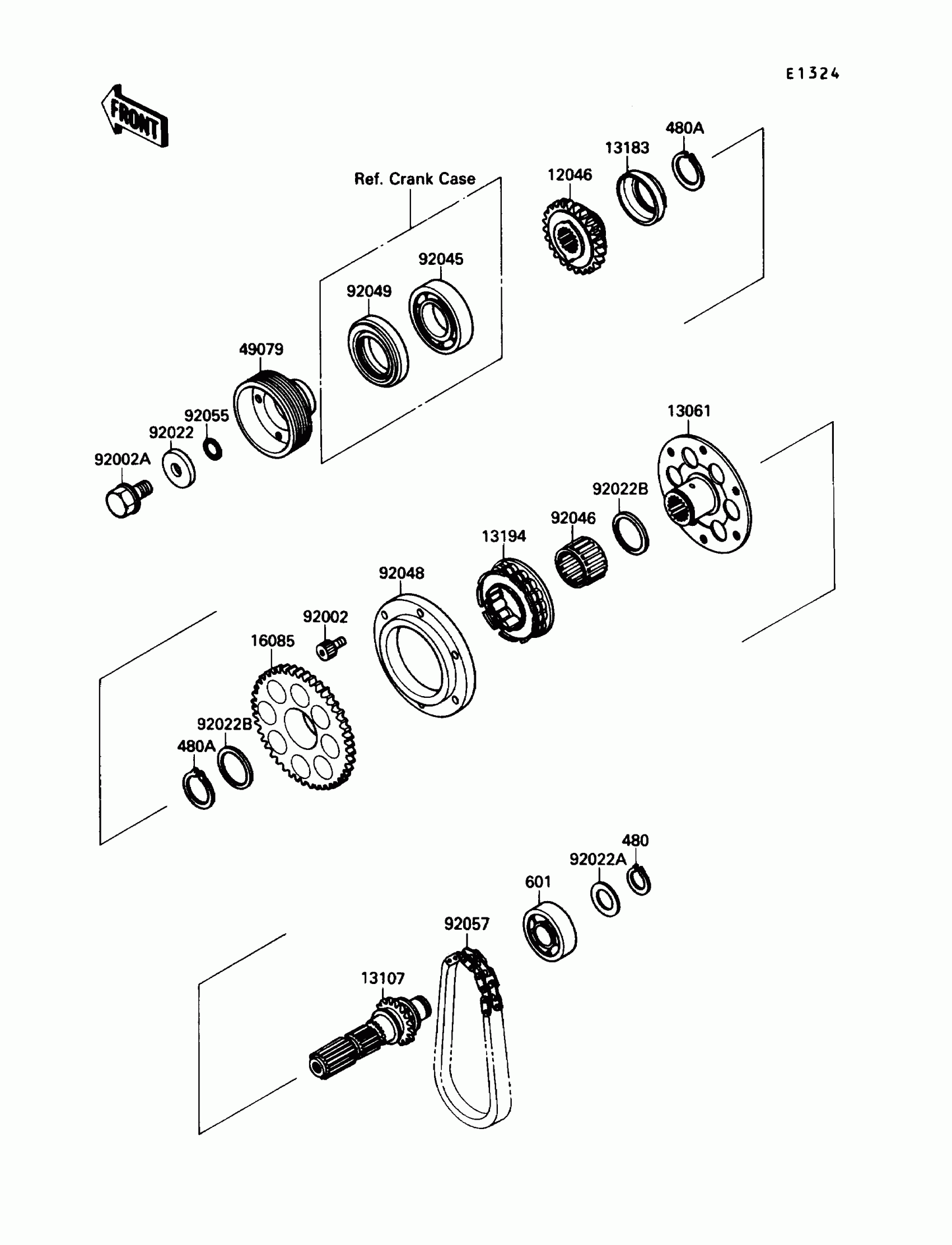

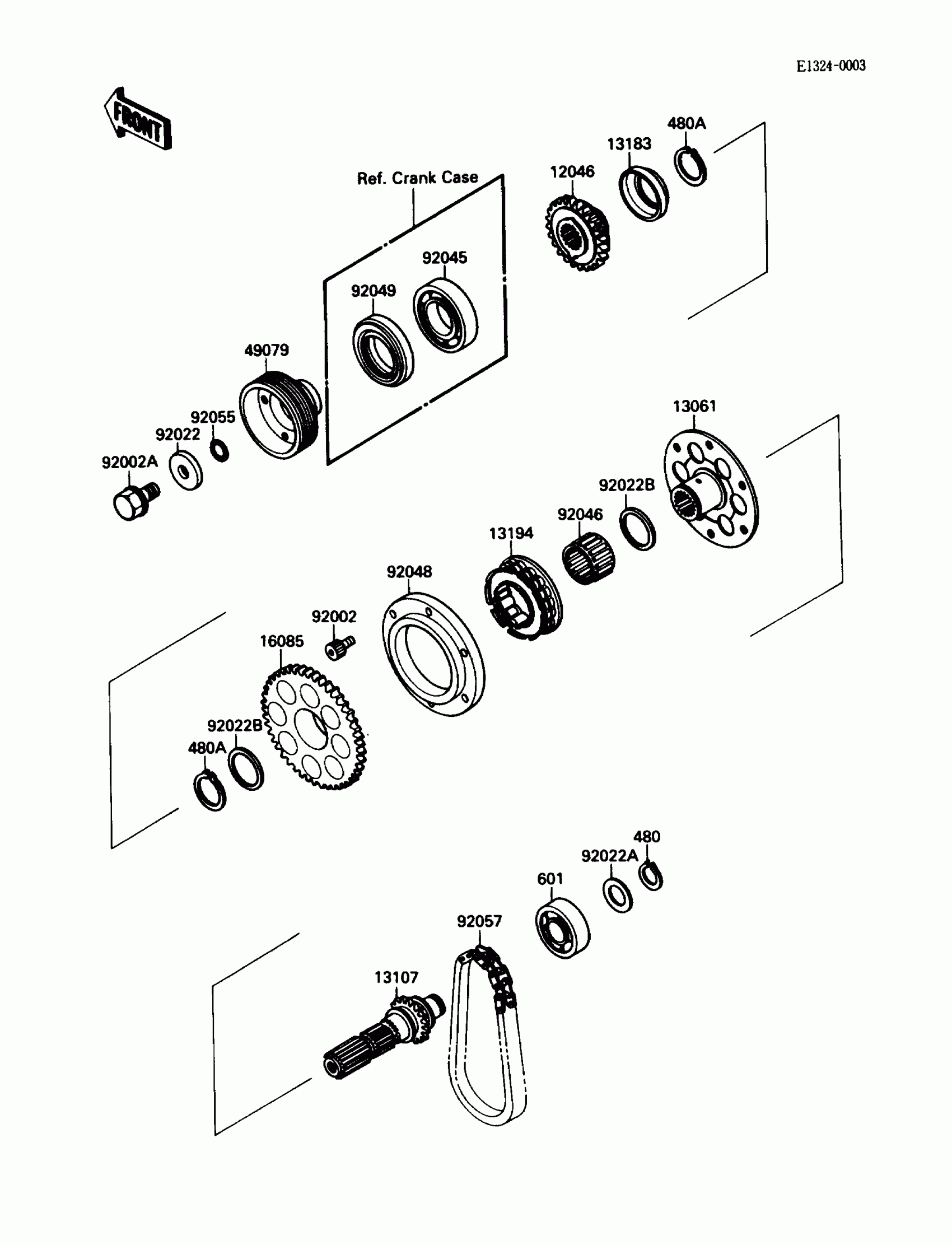

Kawasaki Ninja® 750R Generator Shaft Diagram

Description

Price

480

CIRCLIP-TYPE-C,17MM

480J1700

$0.65

480A

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

601

BEARING-BALL,#6203

601A6203

$14.12

12046

SPROCKET,23T

12046-1090

Unavailable

13061

BOSS,ONEWAY CLUTCH

13061-1197

$120.79

13107

SHAFT

13107-1186

Unavailable

13183

PLATE

13183-1015

Unavailable

13194

CLUTCH-ONEWAY

13194-1068

Unavailable

16085

GEAR,ONEWAY CLUTCH

16085-1173

$118.87

49079

PULLEY-BELT

49079-1051

Unavailable

92002

BOLT,SOCKET,6X12

92002-1796

$4.69

92002A

BOLT,PULLEY

92002-1853

$8.35

92022

WASHER,11X28X4.5

92022-1816

$8.71

92022A

WASHER,17X25X1.6

92022-1842

$5.33

92022B

WASHER,25.3X32X0.5

92022-225

$5.52

92045

BEARING-BALL,60/28

92045-1176

$28.54

92046

BEARING-NEEDLE,K253020S

92046-1022

$22.97

92048

RACE,ONEWAY CLUTCH

92048-1068

$64.06

92049

SEAL-OIL,TC35527.5

92049-1266

Unavailable

92055

RING-O,16.3X3.5

92055-1353

Unavailable

92057

CHAIN,BF04M

92057-1219

$43.94
