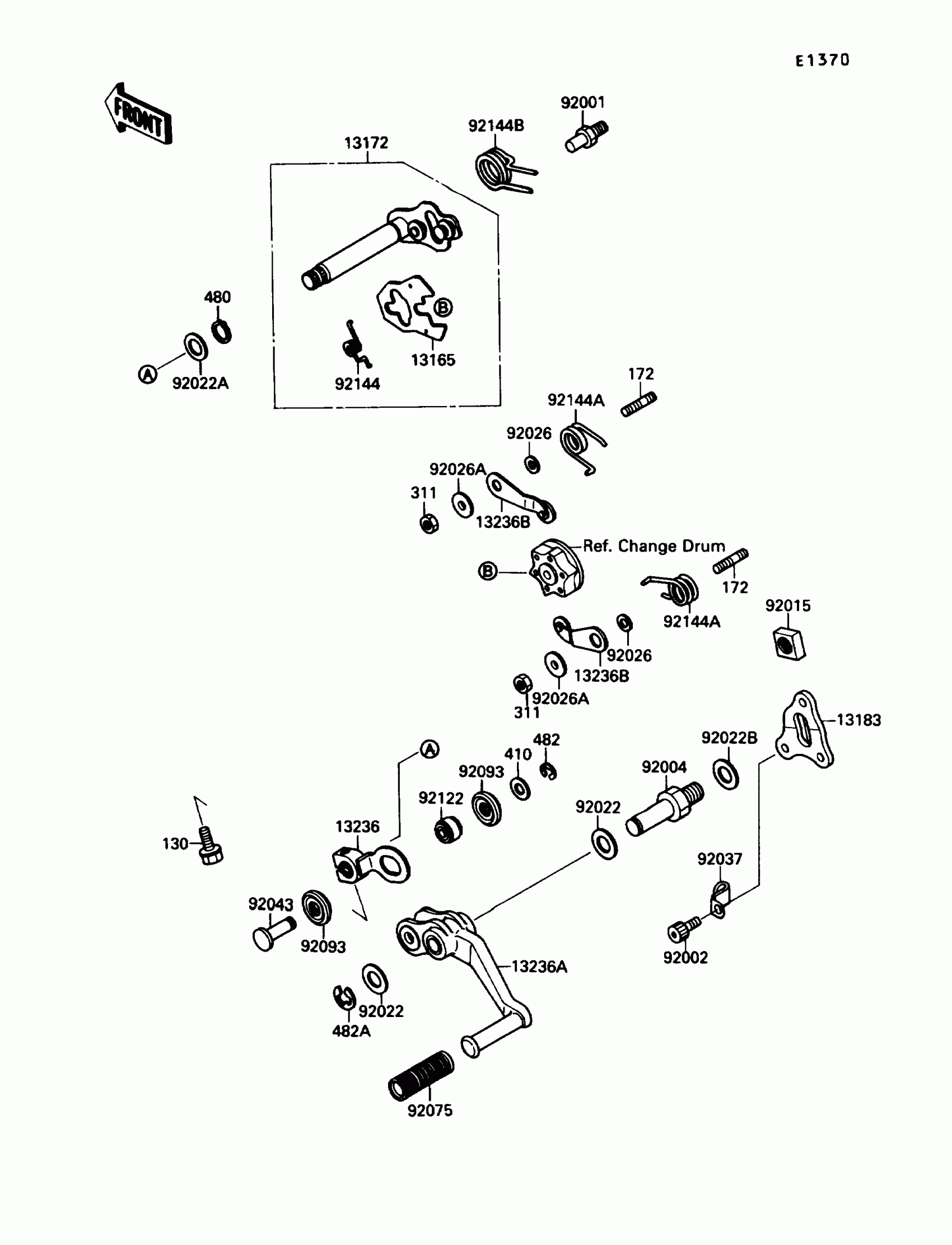

Kawasaki Ninja® 750R Gear Change Mechanism Diagram

#

Description
Price

130

BOLT-FLANGED,6X20

130S0620

$6.86

172

BOLT-STUD,6X12

172G0612

$0.85

311

NUT-HEX,6MM

311G0600

$2.19

410

WASHER-PLAIN-SMALL,8MM

410D0800

$2.58

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

482

CIRCLIP-TYPE-E,6MM

482K6000

$2.95

482A

CIRCLIP-TYPE-E

482L9000

Unavailable

13165

PAWL

13165-1120

$14.10

13172

SHAFT-ASSY-CHANGE

13172-1064

Unavailable

13183

PLATE

13183-1026

Unavailable

13236

LEVER-COMP,CHANGE LINK

13236-1147

Unavailable

13236A

LEVER-COMP,CHANGE PEDAL

13236-1148

Unavailable

13236B

LEVER-COMP,POSITION

13236-1149

Unavailable

92001

BOLT,RETURN SPRING

92001-1455

$4.69

92002

BOLT,SOCKET,6X14

92002-1192

$5.59

92004

STUD,CHANGE PEDAL,PIVOT

92004-1163

Unavailable

92015

NUT,12MM

92015-1605

$8.31

92022

WASHER,12.3X22X1.6

92022-1065

$3.96

92022A

WASHER,13.3X20X1

92022-1496

$3.92

92022B

WASHER,12.3X25X3.2

92022-1862

$6.15

92026

SPACER,6.3X12X1.0

92026-094

$9.18

92026A

SPACER

92026-1217

$5.52

92037

CLAMP

92037-1877

$6.56

92043

PIN

92043-1324

$5.62

92075

DAMPER,CHANGE PEDAL

13157-004

Unavailable

92093

SEAL

92093-1220

$8.71

92122

ROLLER

92122-1140

$9.16

92144

SPRING

92144-1029

$7.77

92144A

SPRING,NEUTRAL POSITION

92144-1030

Unavailable

92144B

SPRING,CHANGE PEDAL RETURN

92144-1074

$9.43
