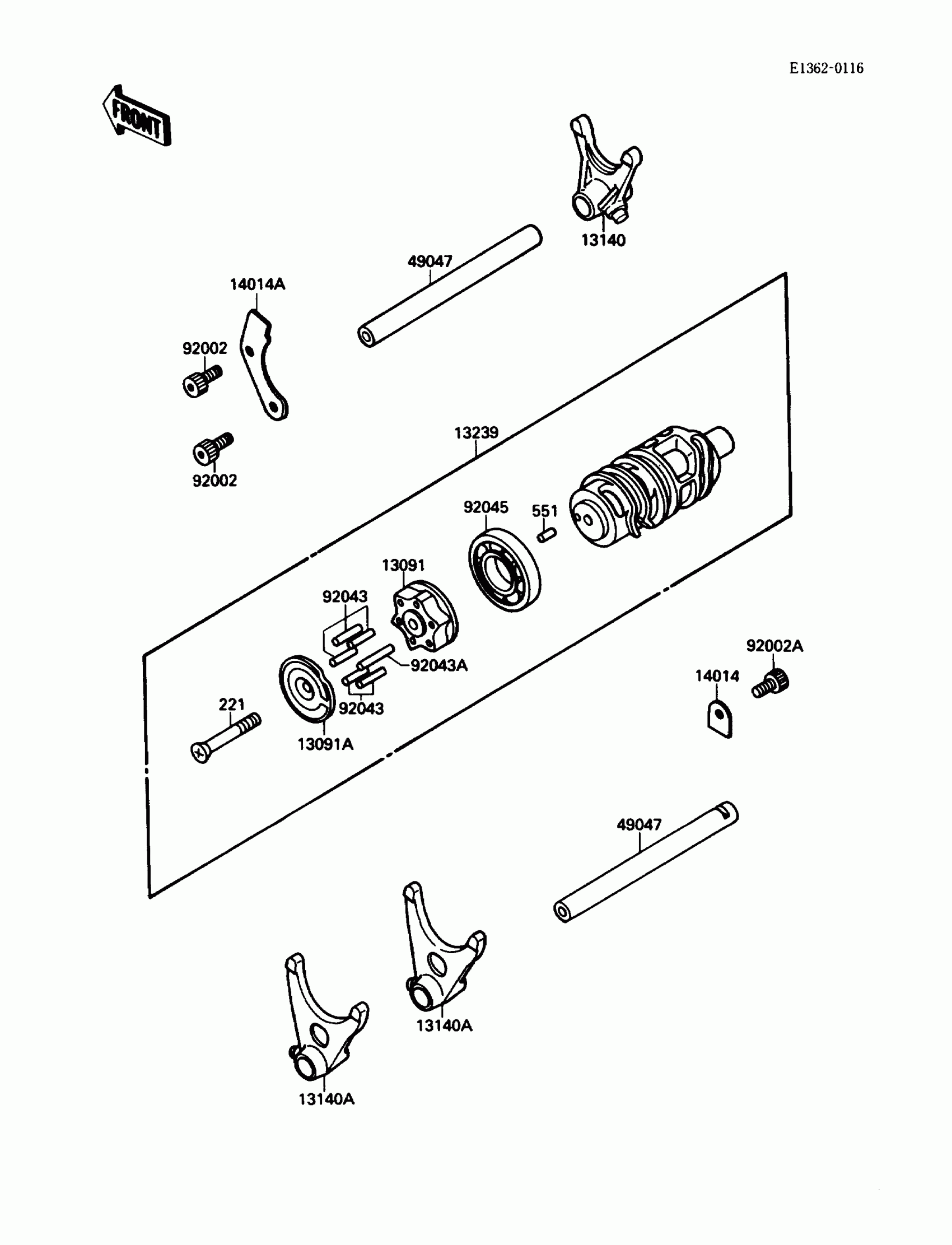

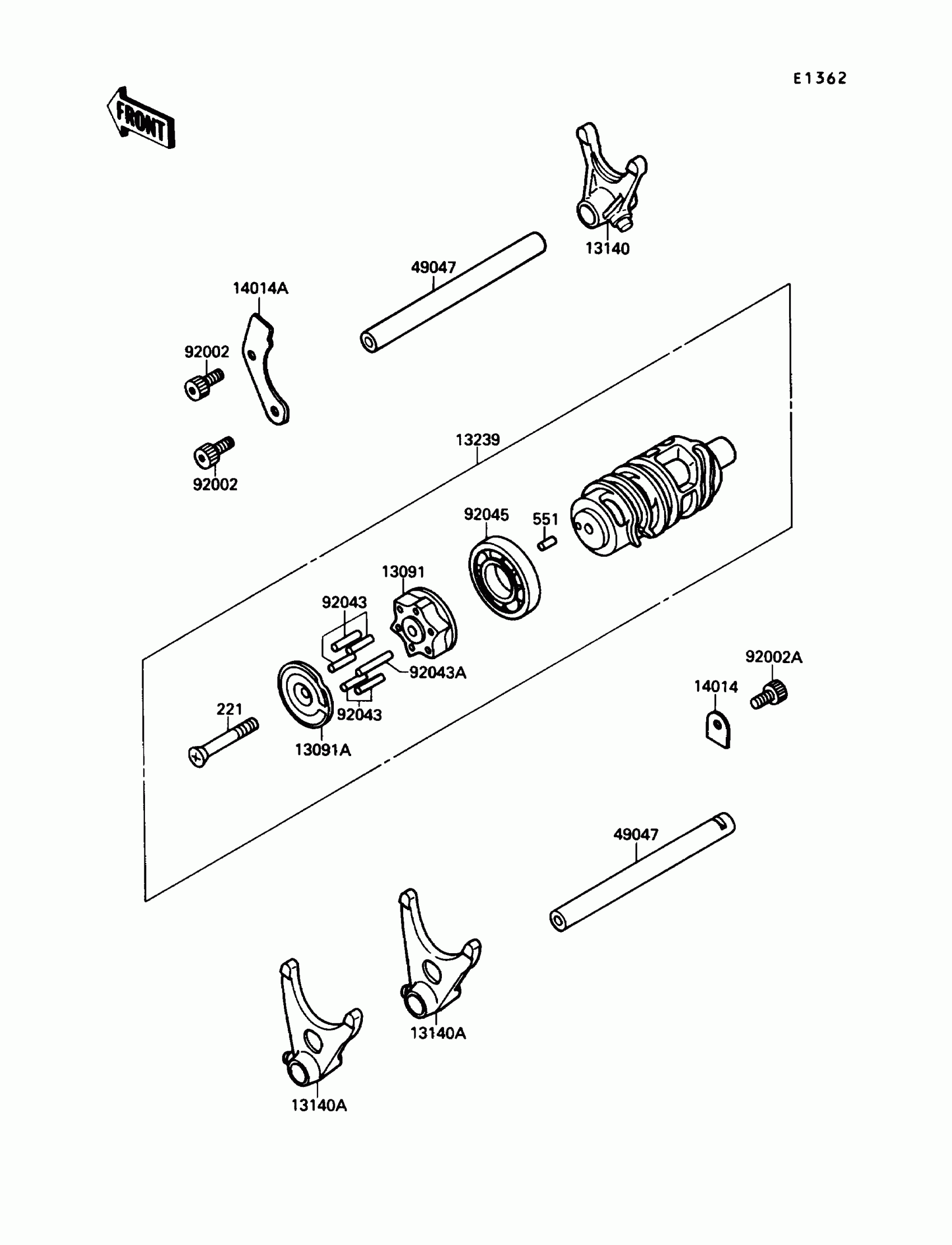

Kawasaki Ninja® 750R Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13091

HOLDER,CHANGE DRUM

13091-1275

$48.36

13091A

HOLDER,NEUTRAL

13091-1334

$26.22

13140

FORK-SHIFT,INPUT

13140-1153

$109.79

13140A

FORK-SHIFT,OUTPUT

13140-1154

$109.79

13239

DRUM-ASSY-CHANGE

13239-1134

Unavailable

14014

PLATE-POSITION,ROD

14014-1080

Unavailable

14014A

PLATE-POSITION,DRUM

14014-1081

Unavailable

49047

ROD-SHIFT

49047-1070

$29.43

92002

BOLT,SOCKET,6X14

92002-1592

$4.31

92002A

BOLT,SOCKET,6X12

92002-1796

$4.69

92043

PIN,DOWEL,4X15.8

92042-014

$0.43

92043A

PIN,DOWEL,4X17.8

92042-020

$5.05

92045

BEARING-BALL,16005

92045-1045

$28.25

221

SCREW-CSK-CROS

221B0640

$4.22

551

PIN-DOWEL,4X8

551A0408

$0.78
