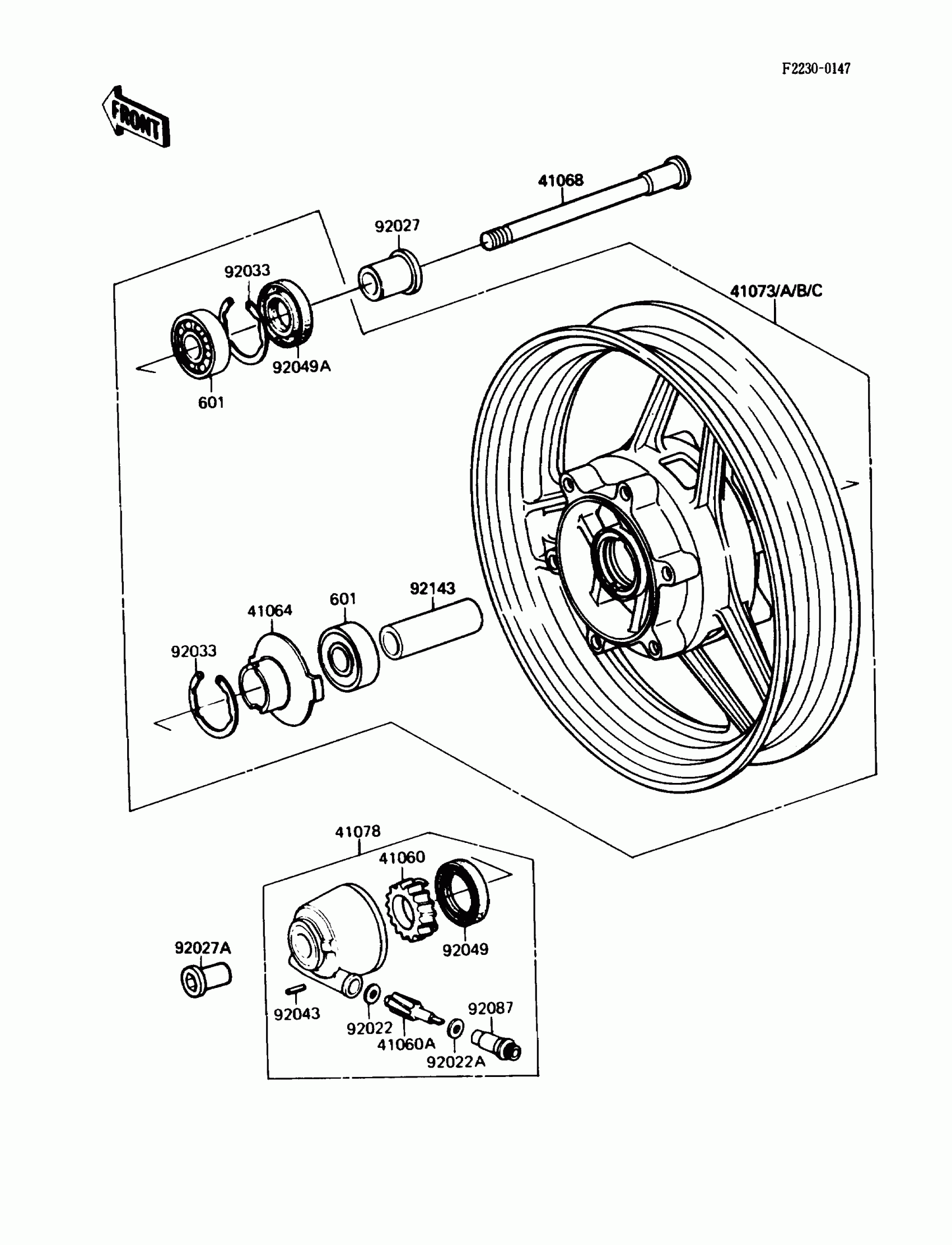

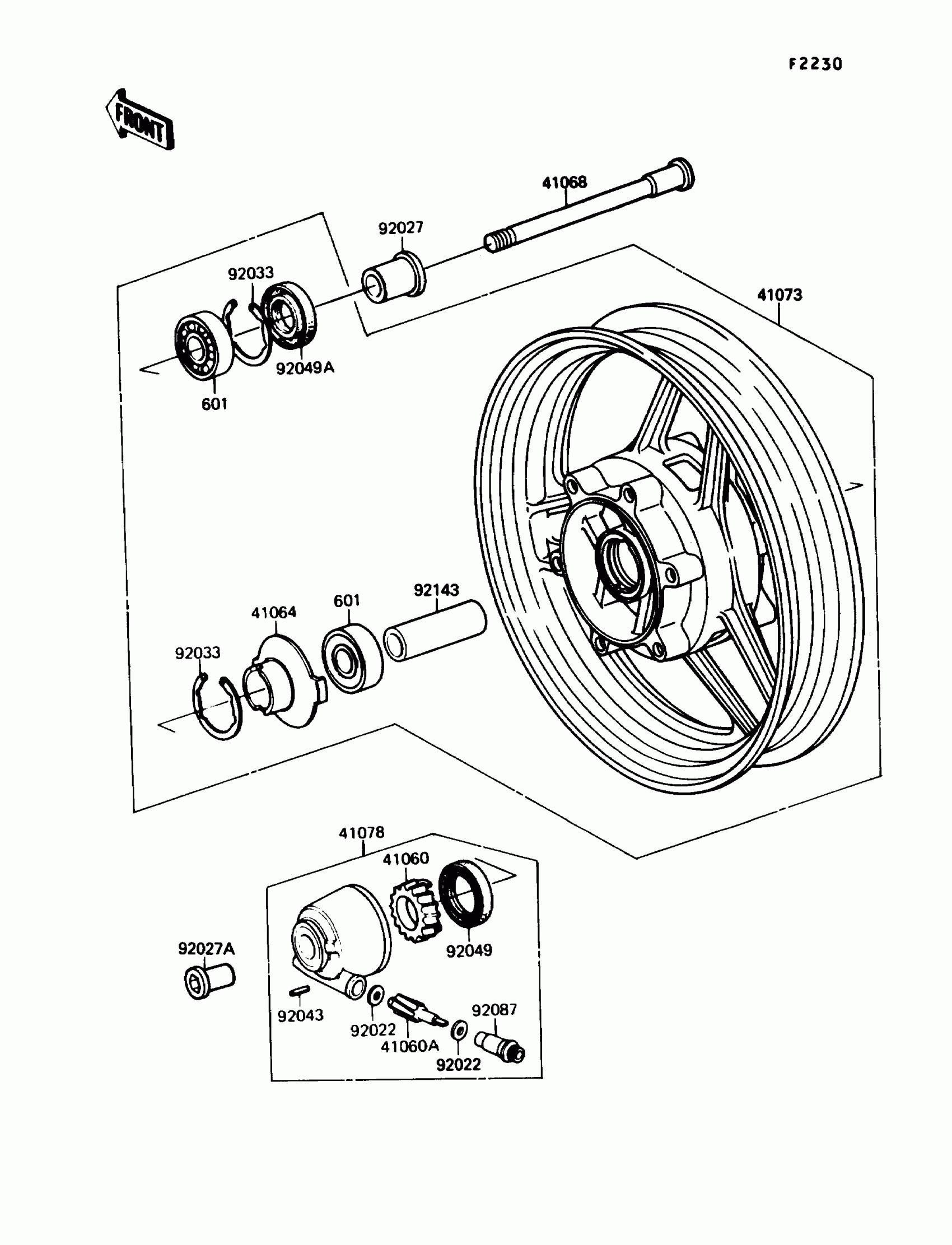

Kawasaki Ninja® 750R Front Wheel Diagram

Description

Price

601

BEARING-BALL,#6302UG

601B6302UG

$37.90

41060

GEAR-METER SCREW,24T

41060-1025

$21.74

41060A

GEAR-METER SCREW,9T

41060-1035

Unavailable

41064

RECEIVER-SPEEDOMETER

41064-1006

$14.92

41068

AXLE,FR

41068-1233

Unavailable

41073

WHEEL-ASSY,FR,F.RED

41073-1344-CW

$625.66

41073B

WHEEL-ASSY,FR,SILVER NO.1

41073-1344-T7

$667.98

41078

CASE-ASSY-METER GEAR

41078-1057

$132.95

92022

WASHER,5.1X9X0.4

41063-001

$4.69

92022A

WASHER,5.1X10X1

92022-1062

$4.69

92027

COLLAR,L=34

92027-1118

$19.66

92027A

COLLAR,FR AXLE,L=36.5

92027-1726

$28.64

92033

RING-SNAP,42MM

92033-1041

$6.16

92043

PIN,SPRING

41082-001

$3.92

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92049A

SEAL-OIL,BJN22425

92049-1058

$9.73

92087

BUSHING-METER GEAR

92087-1002

$23.27

92143

COLLAR,15.2X22X67

92143-1033

$19.28
