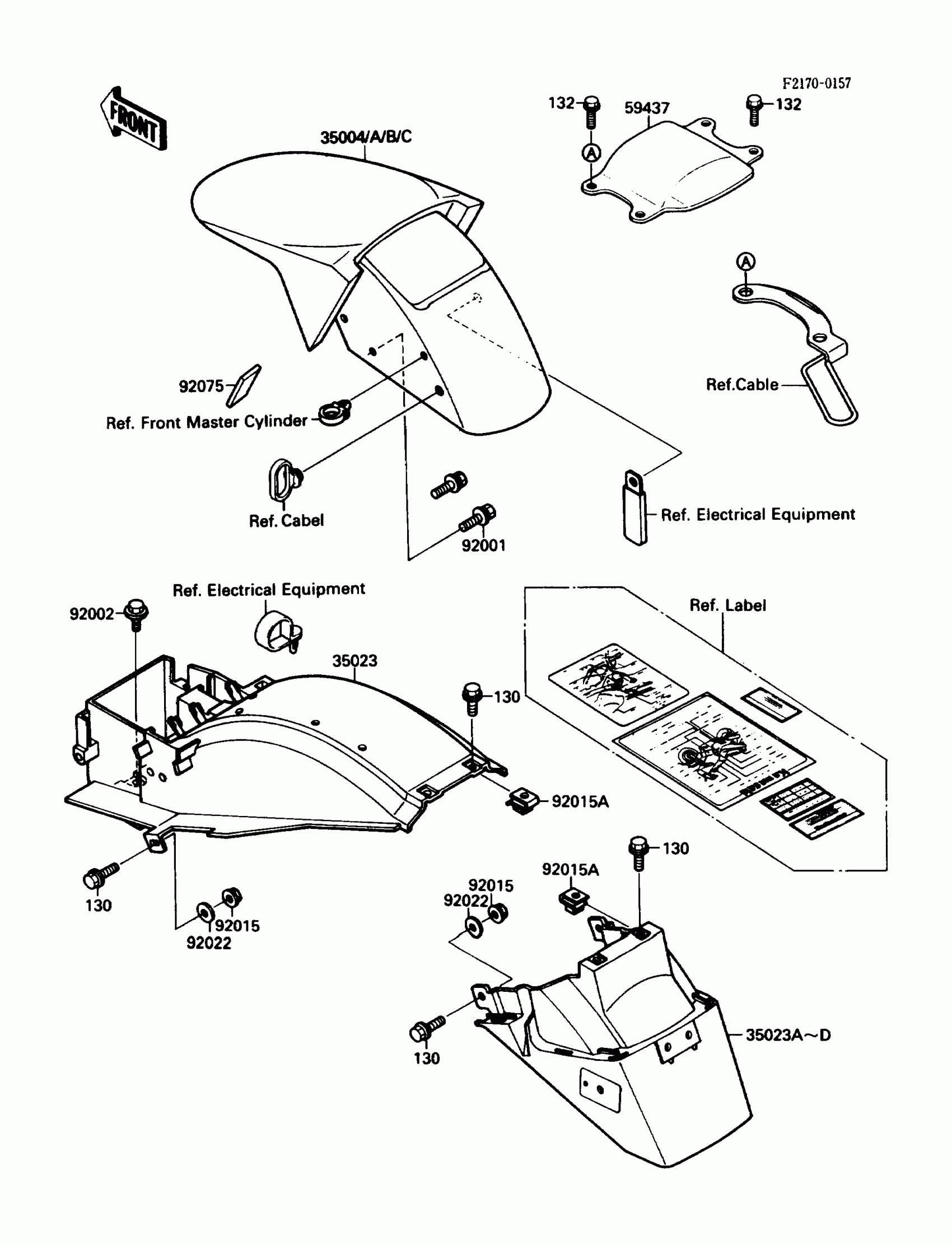

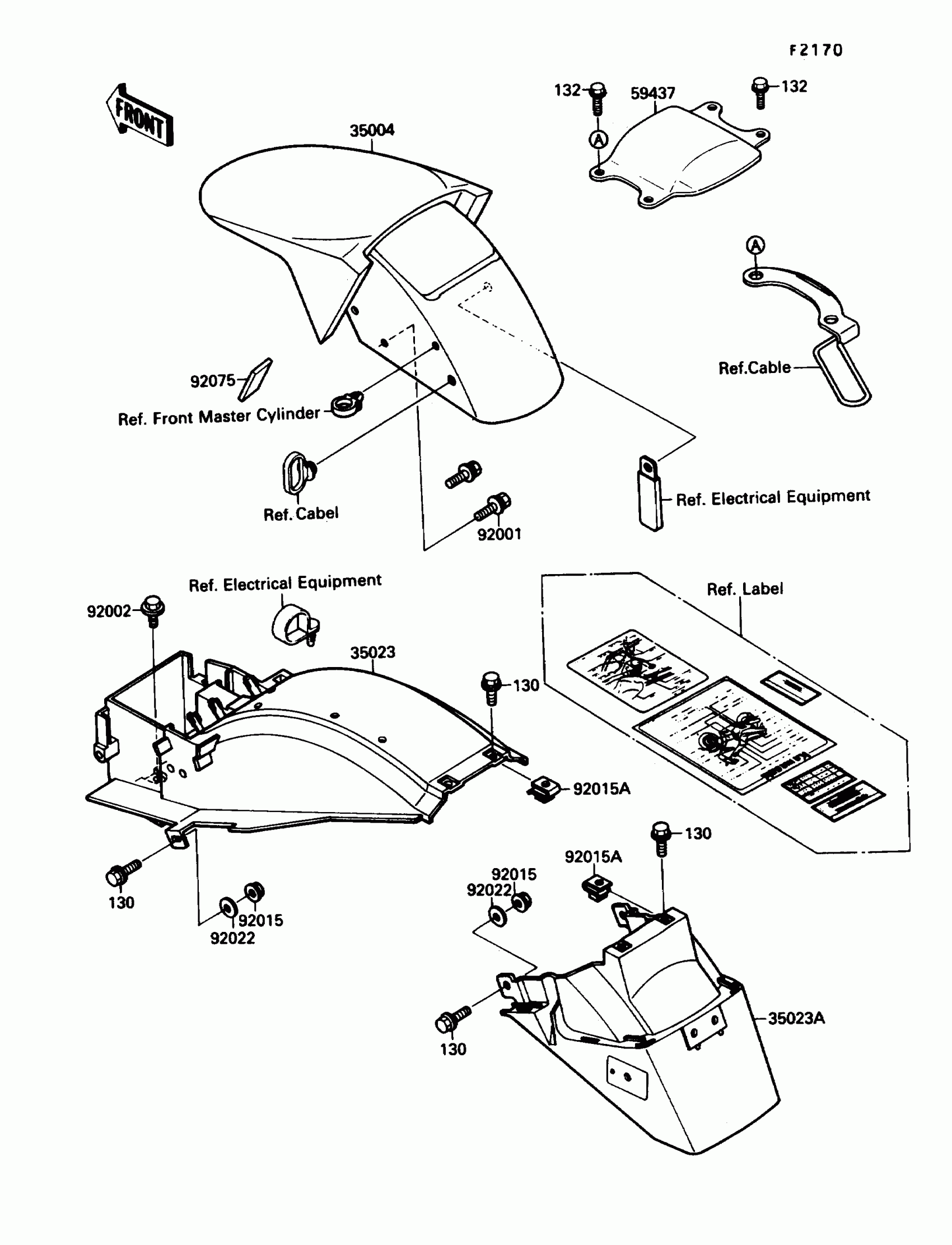

Kawasaki Ninja® 750R Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

132

BOLT-FLANGED-SMALL

132G0816

$4.02

35004A

FENDER-FRONT,F.RED

35004-1196-B1

Unavailable

35004C

FENDER-FRONT,EBONY

35004-1196-H8

Unavailable

35023

FENDER-REAR,FR

35023-1178

$171.15

35023B

FENDER-REAR,RR,EBONY

35023-1179-H8

$203.15

59437

STABILIZER

59437-1054

$119.34

92001

BOLT,W/SP,6X16

92001-1763

$4.50

92002

BOLT,UPSET-WP,6X12

92002-1884

$4.11

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,6MM

92015-1602

$7.34

92022

WASHER,6.5X20X1.6

92022-1557

$1.40

92075

DAMPER

92075-1902

$5.23
