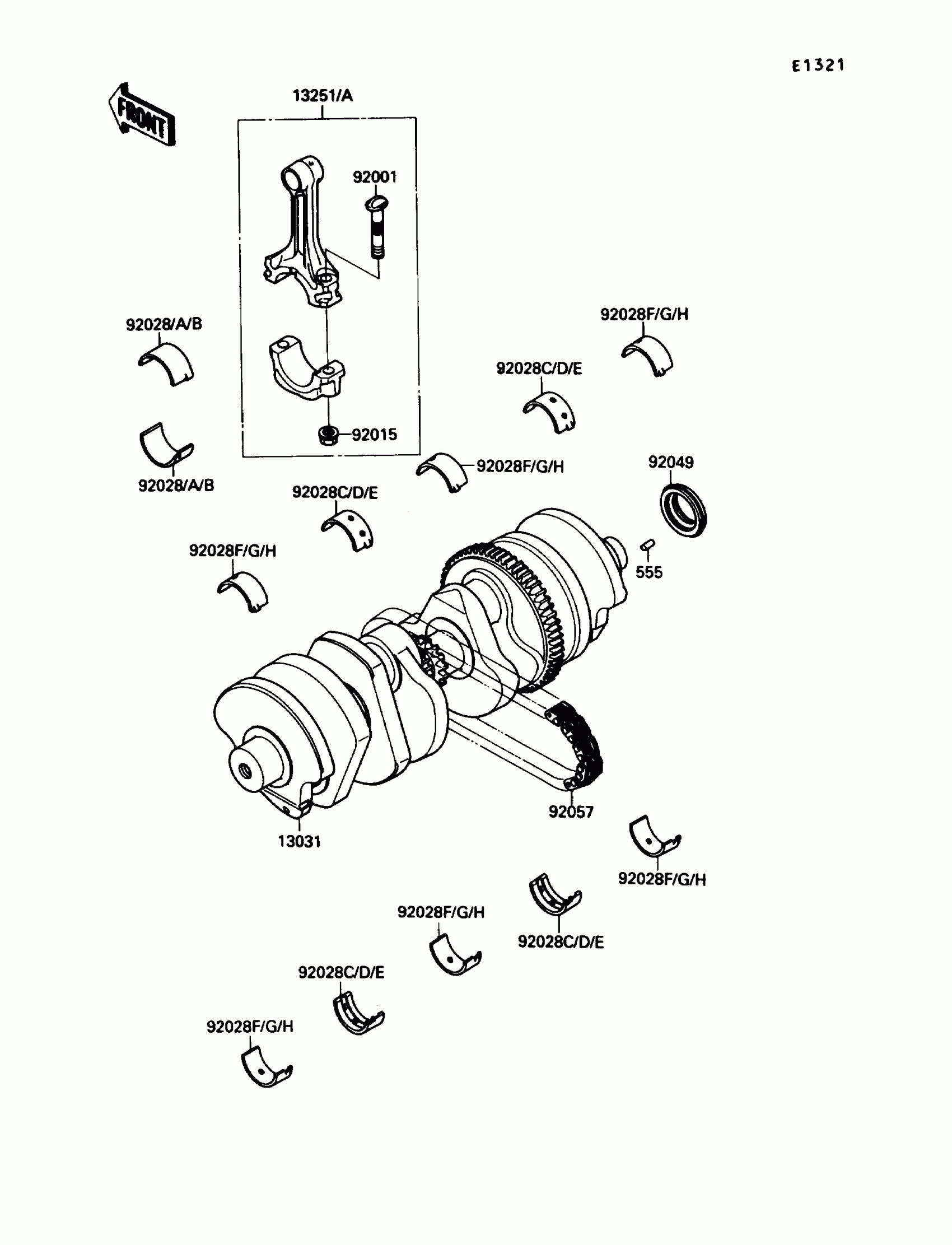

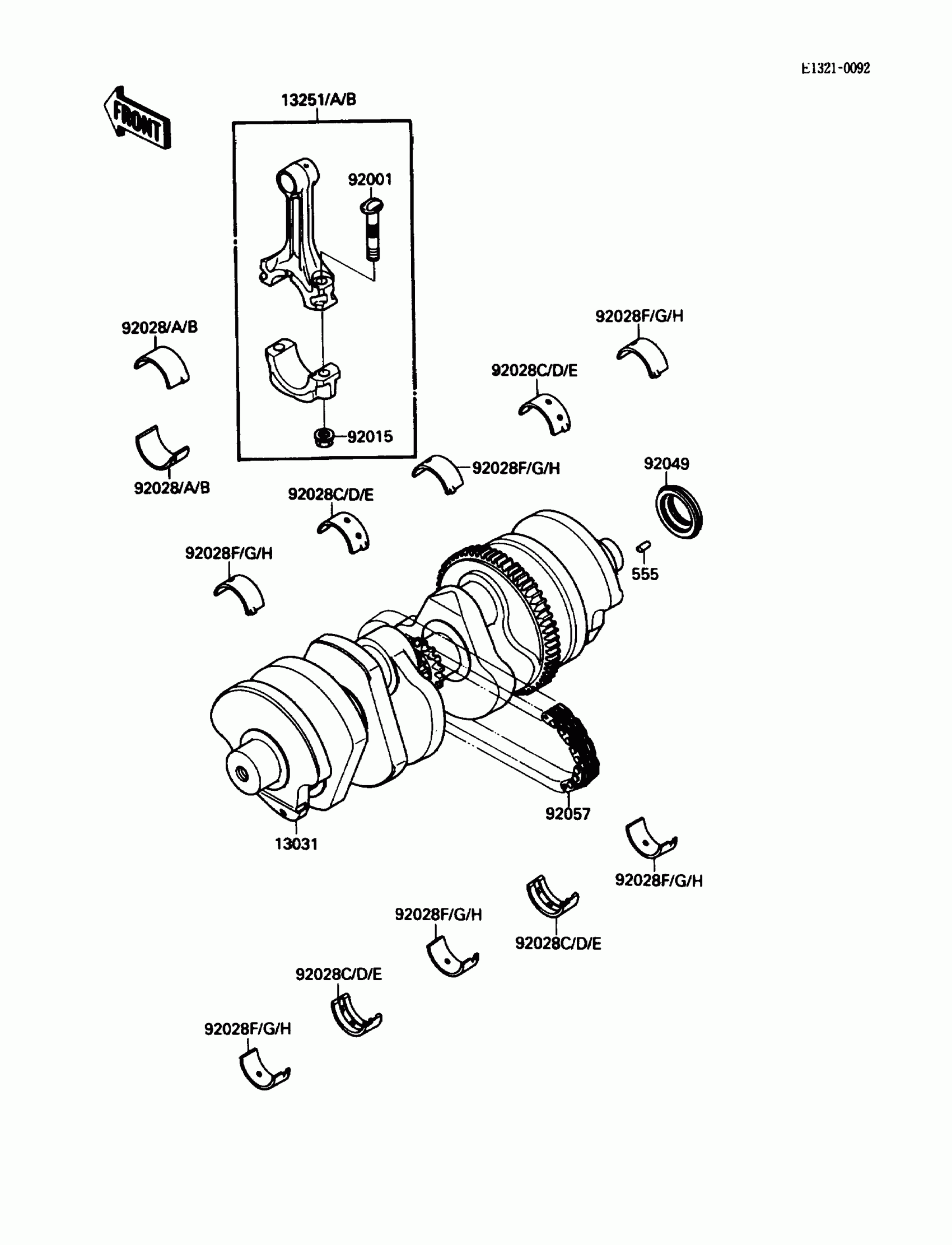

Kawasaki Ninja® 750R Crankshaft Diagram

#

Description
Price

13031

CRANKSHAFT-COMP

13031-1227

Unavailable

13251

ROD-ASSY-CONNECTING,H

13251-1090-HH

Unavailable

13251A

ROD-ASSY-CONNECTING,I

13251-1090-II

Unavailable

92001

BOLT,CONNECTING ROD,8MM

92001-1887

$9.57

92015

NUT,FLANGED,8MM

92015-1311

$7.34

92028

BUSHING,CONNECTING ROD BLUE

92028-1407

Unavailable

92028A

BUSHING,CONNECTING ROD BLACK

92028-1408

Unavailable

92028B

BUSHING,CONNECTING ROD BROWN

92028-1409

Unavailable

92028C

BUSHING,CRANKSHAFT,#2,BLUE

92028-1442

Unavailable

92028D

BUSHING,CRANKSHAFT,#2,BLACK

92028-1443

Unavailable

92028E

BUSHING,CRANKSHAFT,#2,BROWN

92028-1444

Unavailable

92028F

BUSHING,CRANKSHAFT,1&3&5,BLUE

92028-1445

Unavailable

92028G

BUSHING,CRANKSHAFT,1&3&5,BLACK

92028-1446

Unavailable

92028H

BUSHING,CRANKSHAFT,1&3&5,BROWN

92028-1447

Unavailable

92049

SEAL-OIL,HSCY25397

92050-081

$13.07

92057

CHAIN,GENERATOR

92057-1292

Unavailable

555

PIN-SPRING,4X8

555A0408

$3.92
