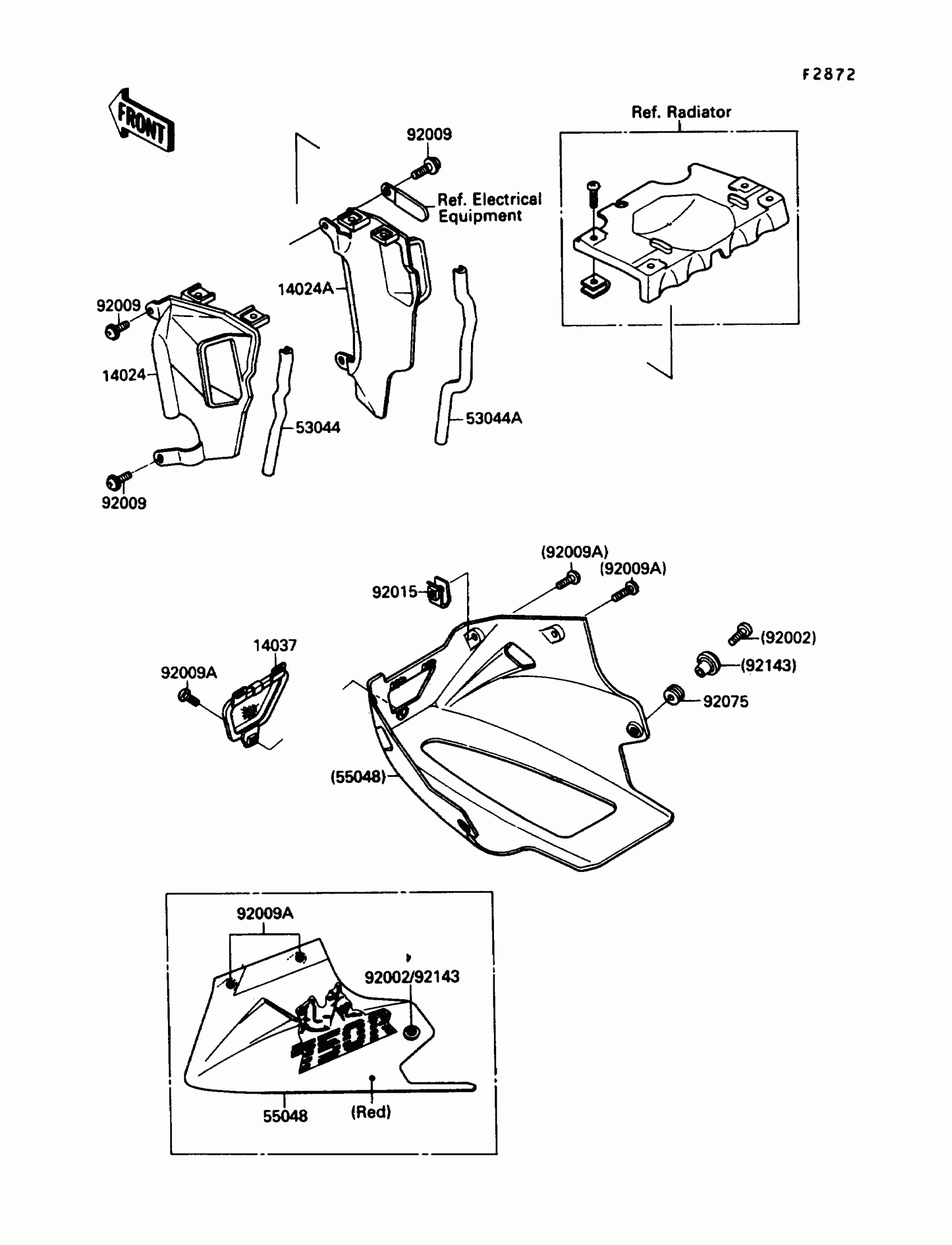

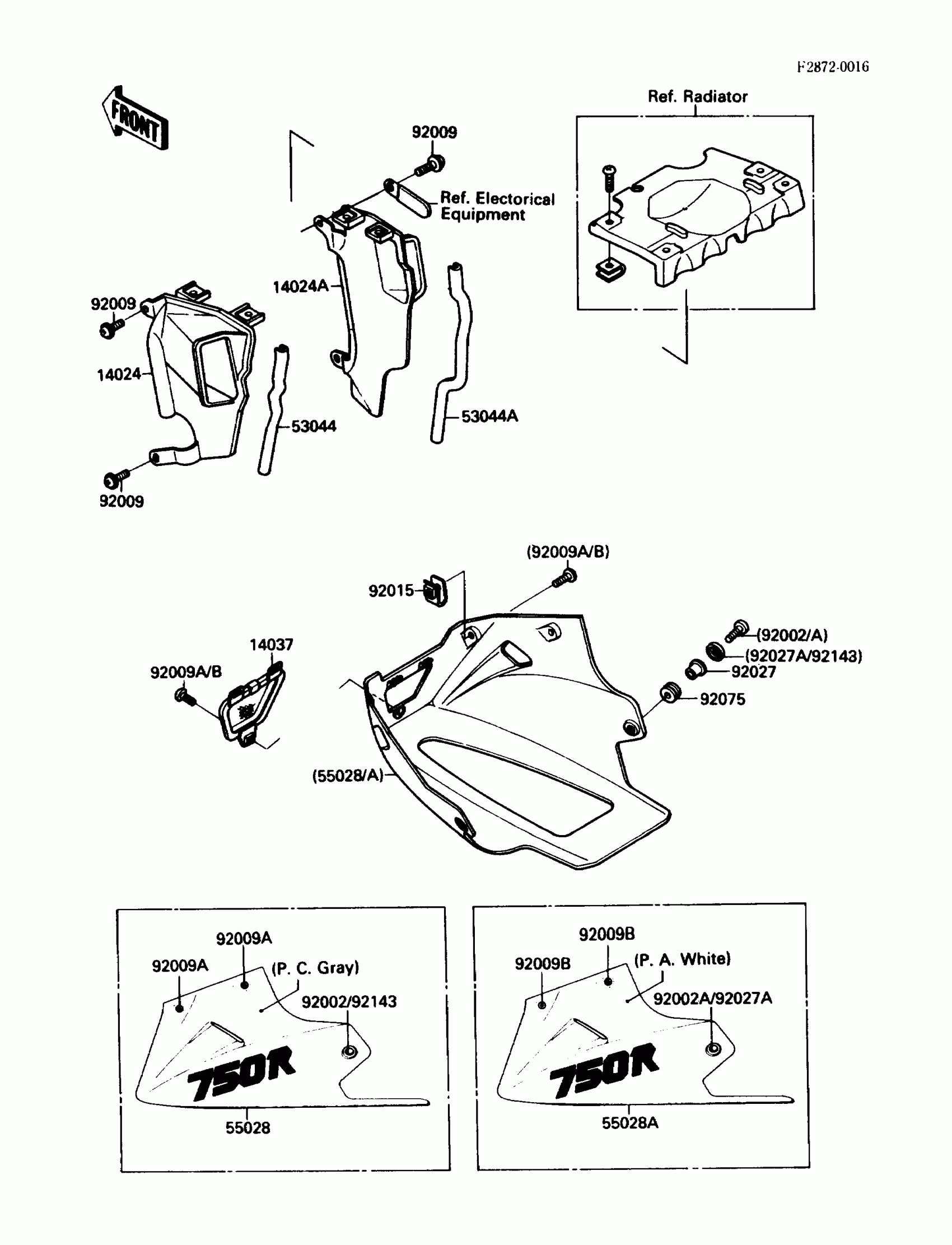

Kawasaki Ninja® 750R Cowling Lowers Diagram

Description

Price

14024

COVER,LOUVER,LH

14024-1346

Unavailable

14024A

COVER,LOUVER,RH

14024-1347

Unavailable

14037

SCREEN

14037-1086

Unavailable

53044

TRIM,LOUVER COVER,LH

53044-1178

$12.14

53044A

TRIM,LOUVER COVER,RH

53044-1179

$13.84

55048

COWLING.,LWR,F.RED

55048-5044-B1

$508.48

92002

BOLT,SOCKET,6X18,BLACK

92002-1514

$6.22

92009

SCREW,6X14

92009-1288

$3.92

92009A

SCREW,5X16,BLACK

92009-1301

$3.13

92015

NUT,5MM

92015-1710

$6.22

92075

DAMPER

92075-1634

$4.69

92143

COLLAR,BLACK

92143-1226

$11.49
