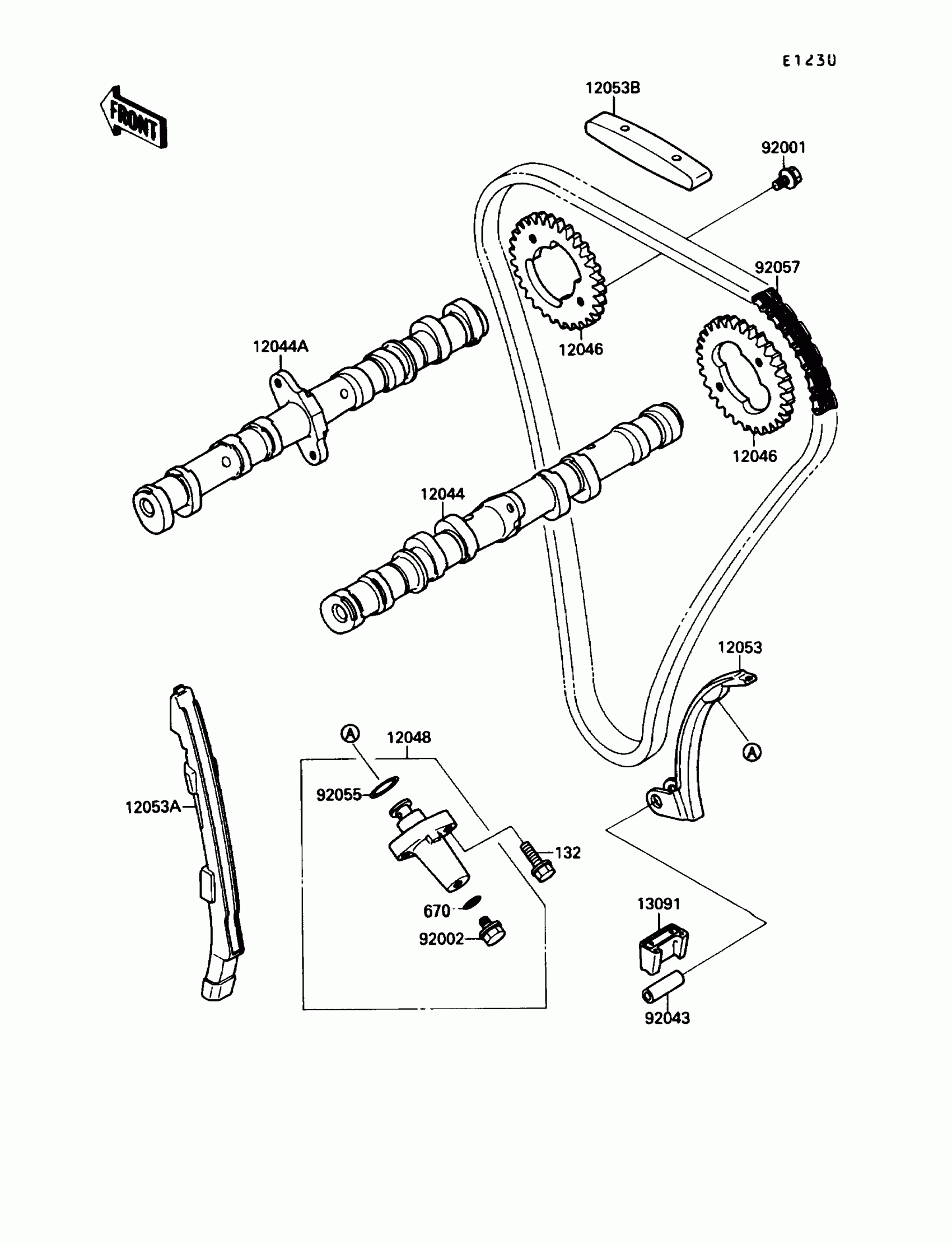

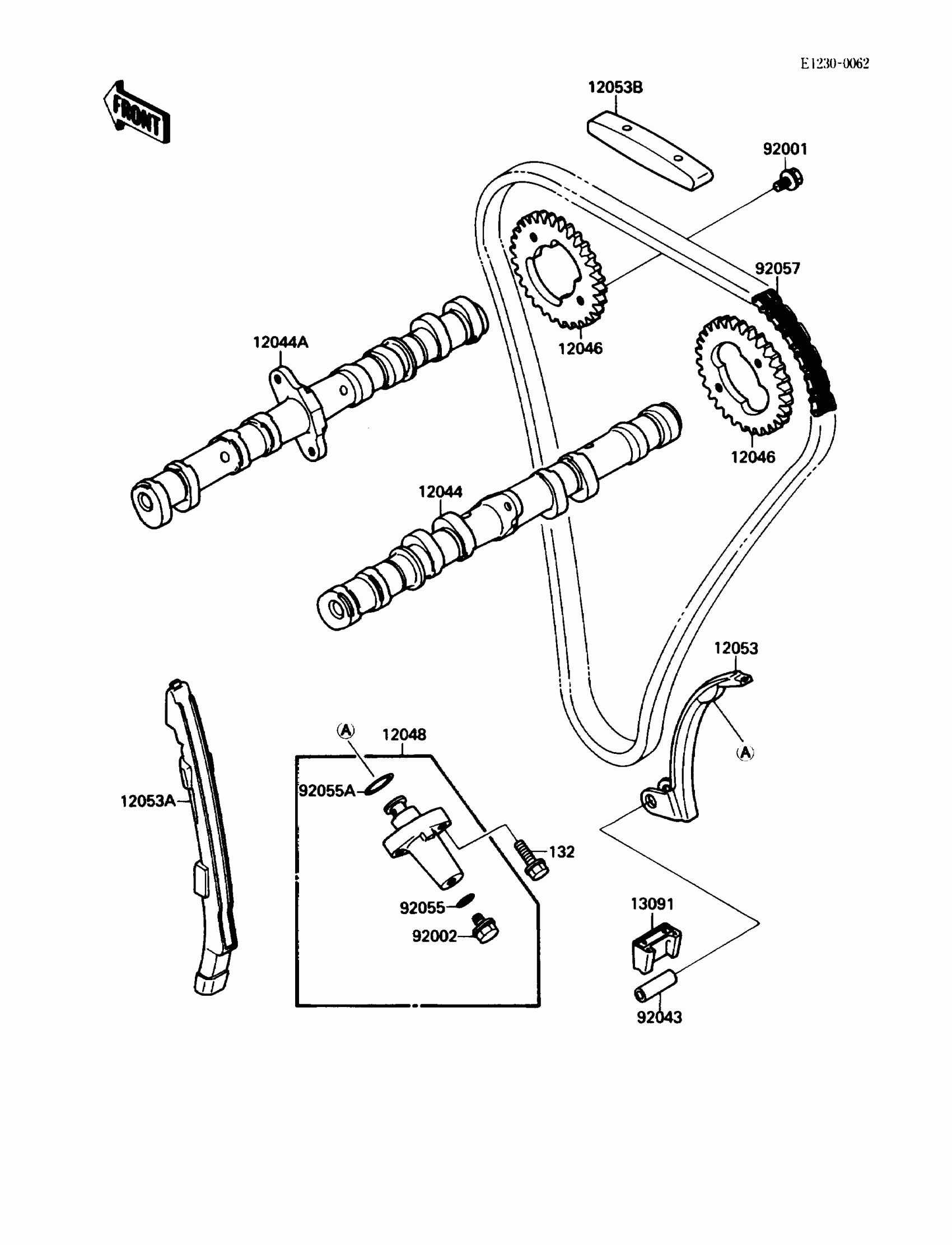

Kawasaki Ninja® 750R Camshaft(s)/Tensioner Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

12044

CAMSHAFT-VALVE,INTAKE

12044-1226

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1227

Unavailable

12046

SPROCKET,CAMSHAFT,44T

12046-1091

Unavailable

12048

TENSIONER-ASSY

12048-1077

$153.50

12053

GUIDE-CHAIN,RR

12053-1200

Unavailable

12053A

GUIDE-CHAIN,FR

12053-1201

Unavailable

12053B

GUIDE-CHAIN,UPP

12053-1202

Unavailable

13091

HOLDER

13091-1447

Unavailable

92001

BOLT,FLANGED,6X11

92003-208

$4.31

92002

BOLT,TENSIONER

92002-1627

$8.19

92043

PIN,7X10X31.5

92043-1333

$8.79

92055

RING-O,TENSIONER BOLT

92055-1248

$1.94

92055A

RING-O,TENSIONER

92055-1249

$6.85

92057

CHAIN,CAM,82RH2015-138L

92057-1220

$132.60
