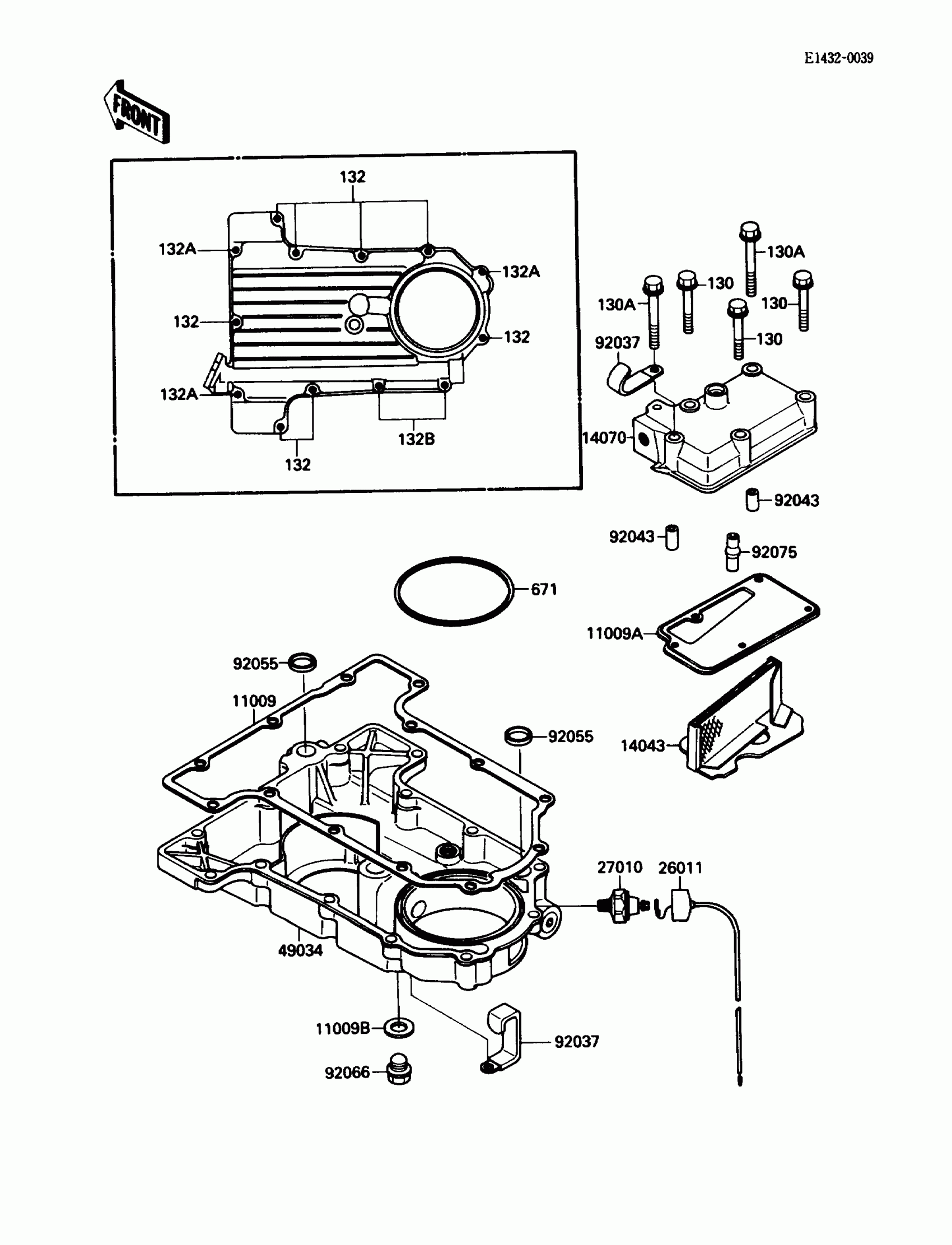

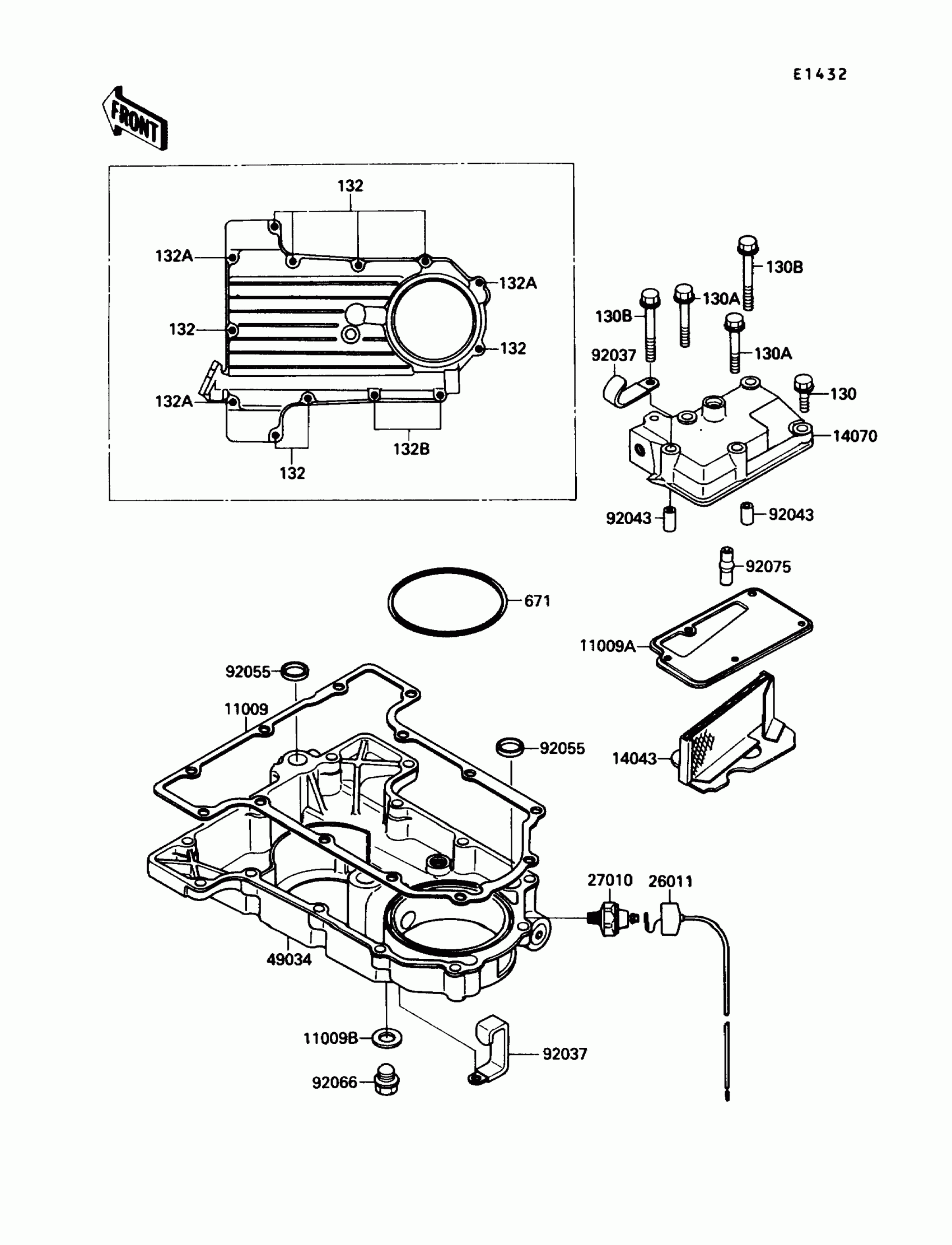

Kawasaki Ninja® 750R Breather Cover/Oil Pan Diagram

Description

Price

11009

GASKET,OIL PAN

11009-1602

Unavailable

11009A

GASKET,BREATHER COVER

11009-1604

Unavailable

11009B

GASKET,12X22X2

92065-097

$0.74

14043

FILTER,BREATHER

14043-1062

$23.84

14070

BODY-BREATHER

14070-1076

$67.47

26011

WIRE-LEAD,OIL PRESSURE

26011-1383

$17.10

27010

SWITCH,OIL PRESSURE

27010-1155

$40.13

49034

PAN-OIL

49034-1067

$140.65

92037

CLAMP

92037-1877

$6.56

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92055

RING-O,19.5MM

92055-077

$6.57

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92075

DAMPER,BRETHER BODY

92075-1958

$5.03

130

BOLT-FLANGED,6X20

130S0620

$6.86

130A

BOLT-FLANGED,6X40

130S0640

$5.01

130B

BOLT-FLANGED

130S0650

$3.58

132

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

132A

BOLT-FLANGED-SMALL,6X40

132J0640

$4.44

132B

BOLT-FLANGED-SMALL,6X55

132J0655

$4.44

671

O RING,90MM

671B2590

$9.91
