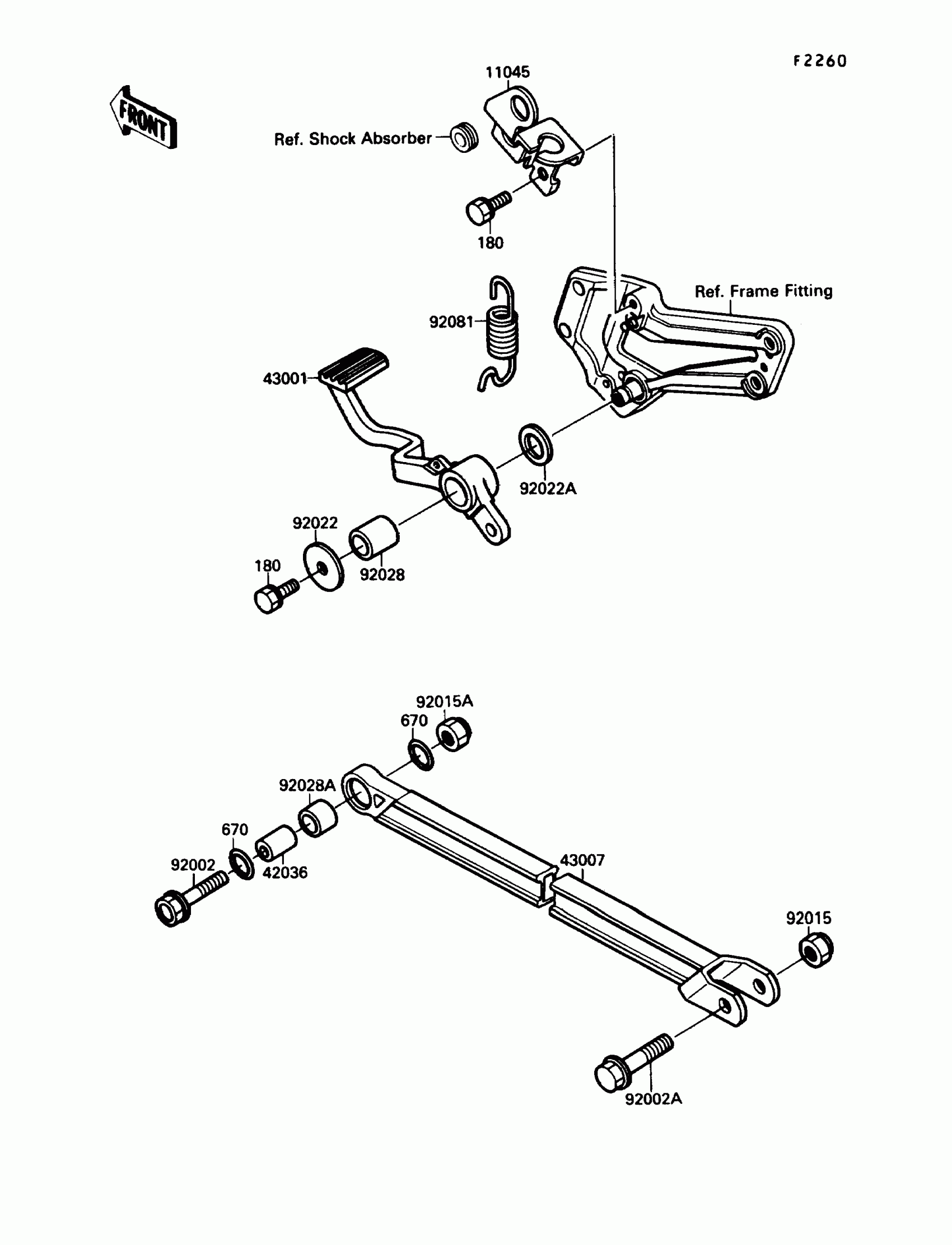

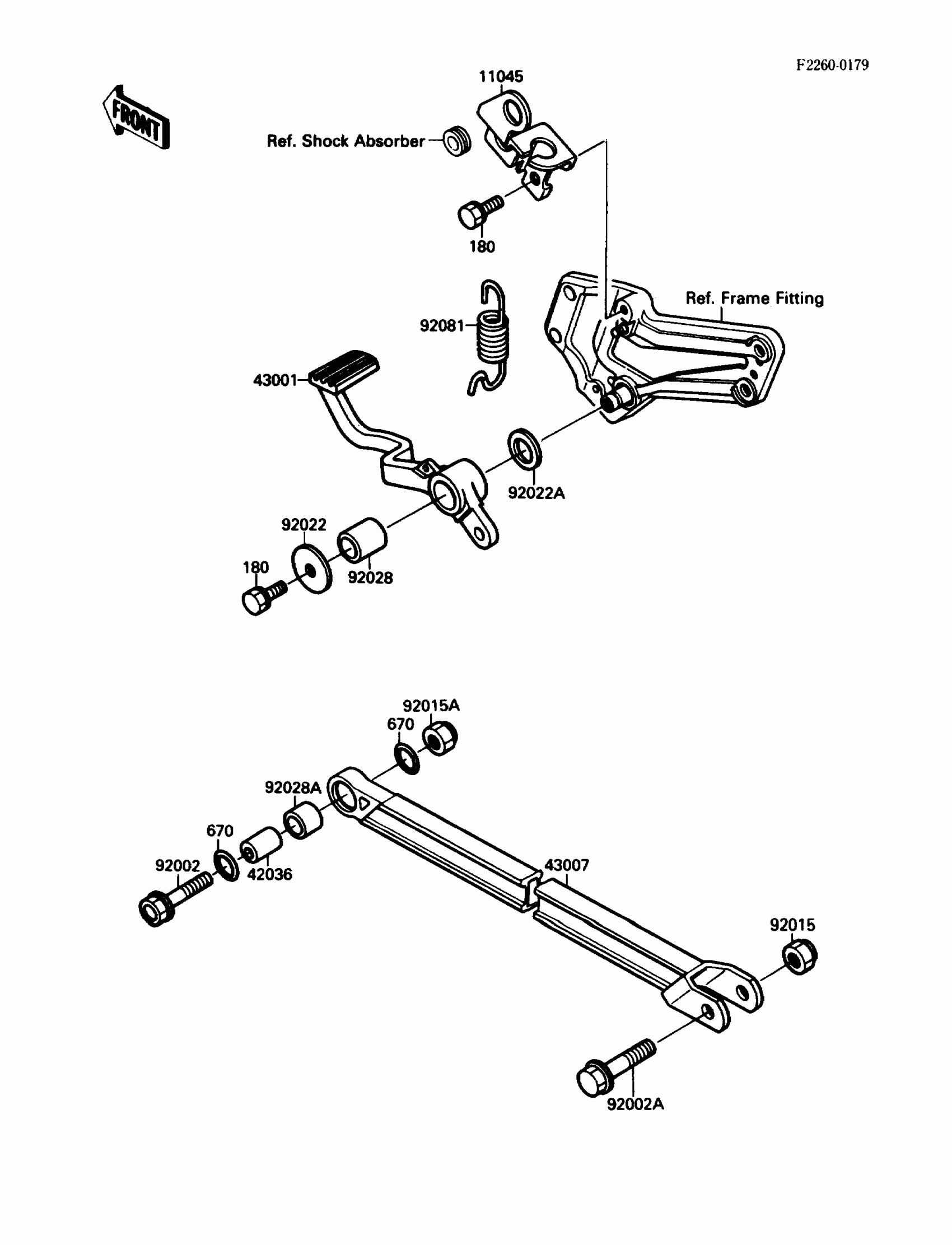

Kawasaki Ninja® 750R Brake Pedal/Torque Link Diagram

Description

Price

11045

BRACKET,RR BRAKE LAMP SWITCH

11045-1290

Unavailable

42036

SLEEVE,8.1X16X20

42036-1200

$15.93

43001

LEVER-BRAKE,PEDAL

43001-1214

$142.20

43007

ROD-TORQUE

43007-1128

$109.14

92002

BOLT,8X35

92002-1198

$5.23

92002A

BOLT,FLANGED,8X40

92002-1838

$8.19

92015

NUT,CAP,LOCK,8MM

92015-1133

$8.84

92015A

NUT,U,8MM,BLACK

92015-1205

Unavailable

92022

WASHER,7X28X1.6

92022-1282

$4.69

92022A

WASHER,15.3X24X1

92022-326

$3.92

92028

BUSHING,BRAKE PEDAL

92028-1282

$14.10

92028A

BUSHING

92028-1468

$10.11

92081

SPRING,BRAKE PEDAL

92081-1833

$10.19

180

BOLT-UPSET-WS,6X14

180H0614

$1.20

670

O RING,16MM

670B2016

$1.36
