2024 Kawasaki Ninja® 7 Hybrid Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

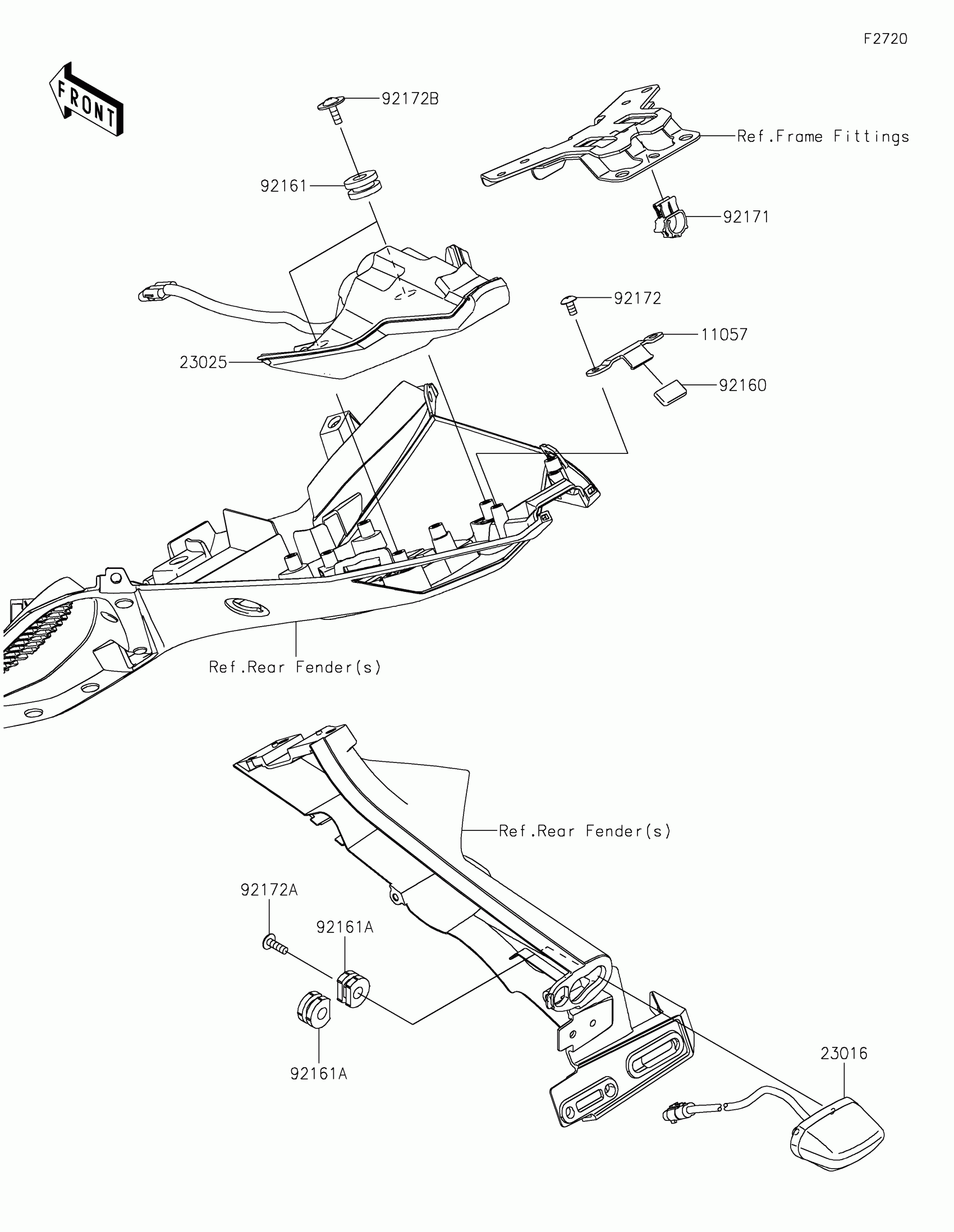

2024 Kawasaki Ninja® 7 Hybrid Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1214

1
Out of stock

23016

1

$67.09

In stock

23025

LAMP-TAIL,LED

23025-0400

1

$207.91

In stock

92160

DAMPER

92160-1190

1

$3.25

In stock

92161

DAMPER

92161-0163

1

$4.59

In stock

92161A

DAMPER

92161-0776

1

$4.39

In stock

92171

CLAMP,EDGE CLIP

92171-1722

1

$7.90

In stock

92172

SCREW,TAPPING,5X10

92172-0262

1

$1.20

In stock

92172A

SCREW,TAPTITE,5X16

92172-0481

1

$2.58

In stock

92172B

SCREW,5X16

92172-1215

1

$0.88

In stock
