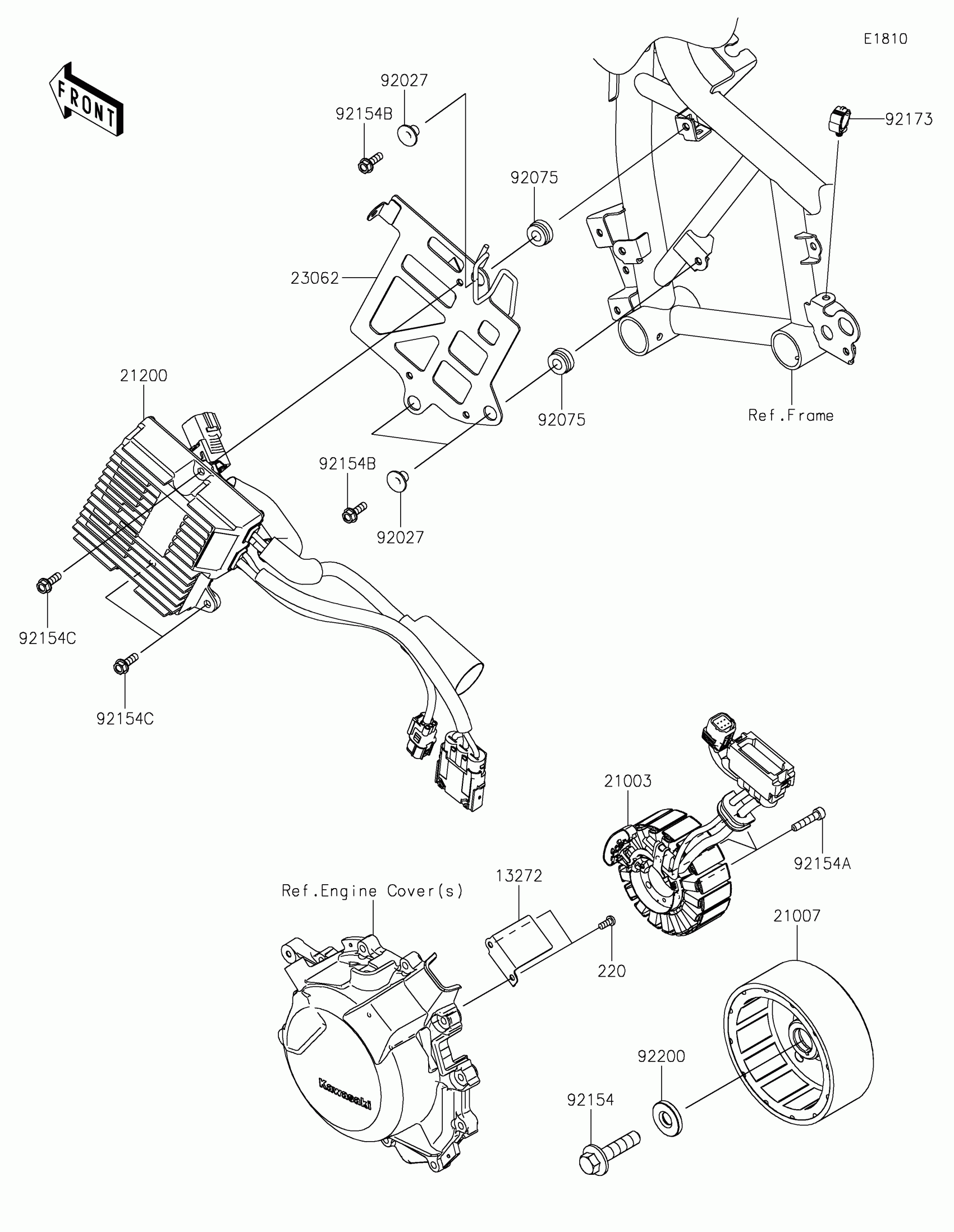

Kawasaki Ninja® 7 Hybrid Generator Diagram

Description

Price

13272

PLATE,HARNESS

13272-4037

$10.05

21003

STATOR

21003-0218

$762.49

21007

ROTOR

21007-0740

$1,044.24

21200

INVERTER

21200-0001

$2,241.34

23062

BRACKET-COMP,INVERTER

23062-1366

$71.89

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92075

DAMPER

92075-277

$1.90

92154

BOLT,12X50

92154-1826

$7.25

92154A

BOLT,SOCKET,6X30

92154-2820

$1.57

92154B

BOLT,6X20

92154-7029

$1.02

92154C

BOLT,FLANGED,6X20

92154-7513

$1.85

92173

CLAMP,HOLDER CLIP

92173-0868

$2.11

92200

WASHER,12X33X5

92200-0220

$7.61

220

SCREW-PAN-CROS,5X12

220AA0512

$0.47
