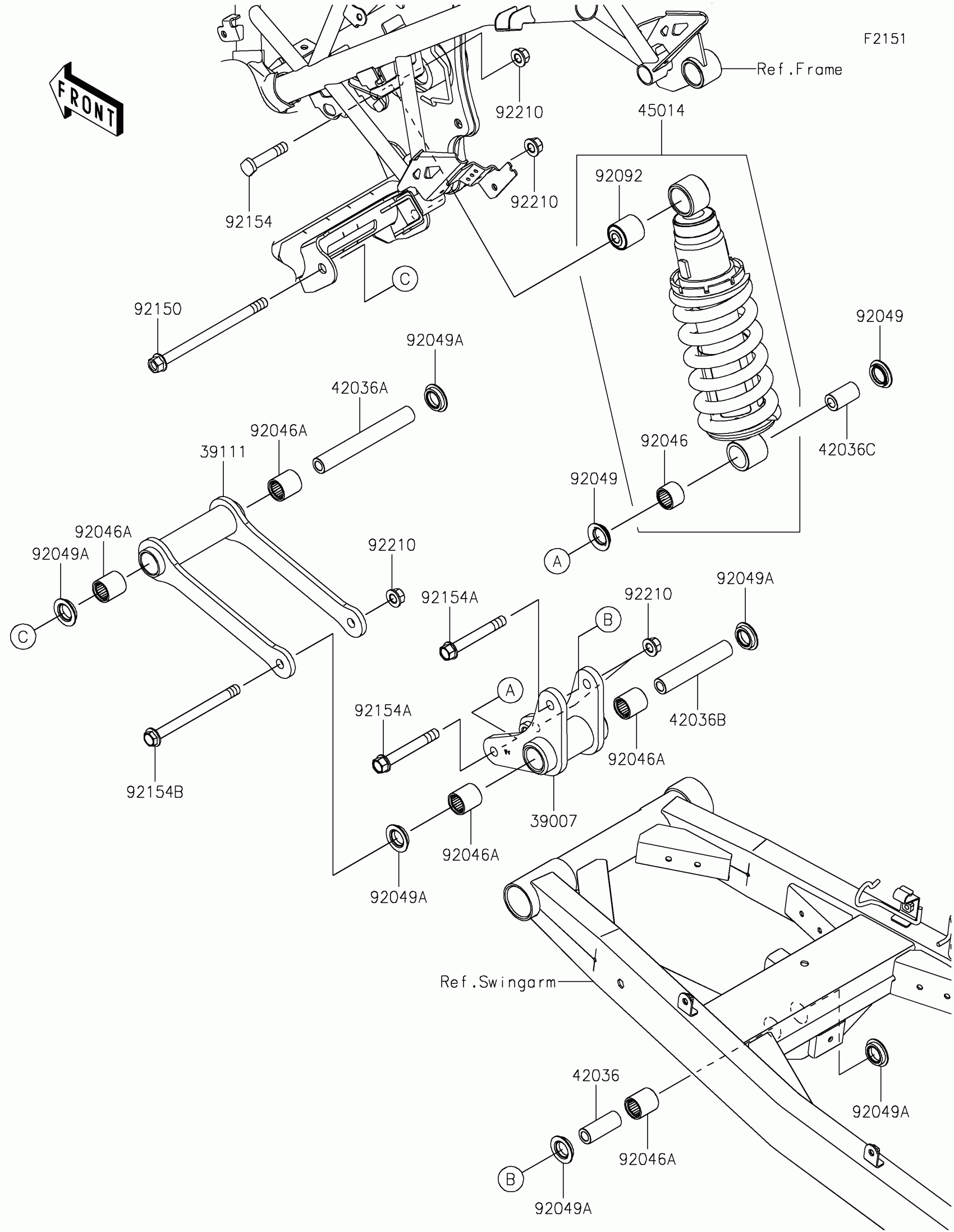

Kawasaki Ninja® 7 Hybrid Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP

39007-0485

$226.20

39111

ROD-TIE

39111-0394

$80.23

42036

SLEEVE,10.1X17X44.5

42036-0718

$22.61

42036A

SLEEVE,10.1X17X130

42036-0885

$59.07

42036B

SLEEVE,10.1X17X96

42036-0886

$48.90

42036C

SLEEVE,10.1X18X32

42036-1344

$10.83

45014

SHOCKABSORBER,BLACK+BLK

45014-0775-37S

$476.88

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

$12.45

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

$13.34

92049

SEAL-OIL

92049-0133

$9.71

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92092

BUSHING-RUBBER

92092-1058

$30.46

92150

BOLT,FLANGED,10X150

92150-1686

$12.15

92154

BOLT,10X50

92154-2165

$5.14

92154A

BOLT,FLANGED,10X75

92154-2226

$8.97

92154B

BOLT,FLANGED,10X120

92154-4060

$7.57

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
